BSNL SIP Trunk - Incoming Works but Outgoing Fails with CHANUNAVAIL

FreePBX Providers
, ,
1

Hello, I need help with my BSNL SIP trunk configuration. Incoming calls work perfectly, but all outgoing calls fail immediately with CHANUNAVAIL status. The trunk shows as ‘Registered’ when I run ‘pjsip show registrations’, but every outgoing call attempt results in ‘Everyone is busy/congested at this time (1:0/0/1)’ in the logs with DIALSTATUS = CHANUNAVAIL and HANGUPCAUSE = 21. I’ve tried dialing various number formats including 0XXXXXXXXXX, 91XXXXXXXXXX, but all fail the same way.

Here in Kerala, when I configured the same BSNL SIP credentials directly in Linphone, both incoming and outgoing calls worked perfectly

I can give you any logs. Its been days i have been stranded with this problem, my mind is tangled up and I can’t rest without solving these.

2

Cause 21 is call rejected. Your service provider might not be accepting your credentials, or you may be sending phone numbers in a format that they don’t understand.

3

In your trunk settings, try setting From User to the same value you have in Username, and From Domain to the same value as you have in SIP Server.

If that doesn’t help, turn on pjsip logger, make a failing outbound call and post the outgoing INVITE and associated replies.

4

My issue as solved my using chan_sip instead of pjsip, now all are working good.

5

chan_sip is dead and if you move Asterisk beyond v20 you won’t have it. You really should make this work in the supported driver.

1 Like
6

Please post your working chan_sip trunk settings. Mask personal data such as username, password, phone numbers, etc., but make it clear what each value represents.

We can then give you the corresponding pjsip settings. Whether or not they work, this will help other BSNL users to set up their FreePBX system.

1 Like
7

Thats a sweet reply and very thoughtful for others.

My config:

Using raspbx (FreePBX 15.0.38), running on Pi 4, 8GB RAM.
My trunk settings:

GENERAL Tab

Trunk Name :bsnlout(any name)
Hide CallerID: No
Outbound CallerID: 91XXXXXXXXXX, where X’s are your landline number given by BSNL without 0.
CID Options: Allow Any CID
Maximum Channels: NIL
Asterisk Trunk Dial Options NIL, System
Continue if Busy: No
Disable Trunk: No
Monitor Trunk Failures: No

sip Setting Tab:
Outgoing:
Trunk Name: bsnlout(for reference in setting outbound)
PEER Details:
host=kl.ftthvoip.bsnl.in(Registrar Address given by BSNL, varies by circle)
username=91XXXXXXXXXX, where X’s are your landline number given by BSNL without 0.
secret= password for sip(telephone/VoIP) given by BSNL
type=peer
qualify=yes
canreinvite=no
insecure=port,invite
session-timers=refuse
session-expires=600
session-minse=90

Incoming:
User Context: bsnlin(for reference in setting inbound)
USER Details:
host=kl.ftthvoip.bsnl.in(Registrar Address given by BSNL, varies by circle)
username=91XXXXXXXXXX, where X’s are your landline number given by BSNL without 0.
secret=password for sip(telephone/VoIP) given by BSNL
type=peer&user
qualify=yes
canreinvite=no
insecure=port,invite
context=from-trunk

Register String: 91XXXXXXXXXX:[email protected]/91XXXXXXXXXX

8

In practice your incoming section may never get used (and a pure outgoing section would have no use for the insecure settings). I don’t think username will be used, either. I’ve never seen user&peer before, and user just makes your system a little less secure; it will never do anything useful with that configuration.

9

The late chan_sip only recognizes a single word for type, so this l line will be, silently, ignored:

10

can anyone give me exact settings to use chan_pjsip for trunk

11

The answer is probably no, as there are only probably single figure numbers of people who regularly read and respond in this forum, and I’m not aware of any of them being in India, so there is probably no-one with experience of actually using BSNL (There are as some in India who often ask, but I’m not aware of anyone often providing answers.). All we can do is give something that seems to match the settings you already have, making some allowances for the fact that some need to be ignored, as they are wrong.

There is nothing that I can obviously see which would make this a case where the straightforward, outgoing authorisation and registration, configuration, wasn’t a reasonable starting point, but we would need to see detailed logs of a failure, to understand what is wrong with it.

A common mistake that people make with chan_pjsip is using the wrong format for the outbound proxy, but I can see no reason here to configure an outbound proxy, at all, given your chan_sip configuration.

As they are rejecting the call, you should really ask BSNL why they are doing that.

12

Hi there

13

I’m very puzzled, because none of the common causes of outbound call failure (when incoming is working) seem applicable to your situation:

  1. Incorrect Outbound Proxy settings. The BSNL trunk doesn’t require Outbound Proxy, and you didn’t mention it, but please confirm that Outbound Proxy for your pjsip trunk is left blank.
  2. Incorrect From address. I’m pretty sure that it should be 91XXXXXXXXXX, but I suggested setting From User, which I assume didn’t help, since you gave up and switched to chan_sip.
  3. Incorrect destination number format. Neither pjsip not chan_sip modify this; it’s done by the Dialed Number Manipulation Rules section of the trunk settings. They should be left blank, but if set problematically, I’d expect them to cause the same trouble with chan_sip.

So, the best way forward from here is to see what is actually going wrong. Please post the pjsip logger output for a failing call. Or, post screenshots of your trunk settings and maybe we can spot something.

14

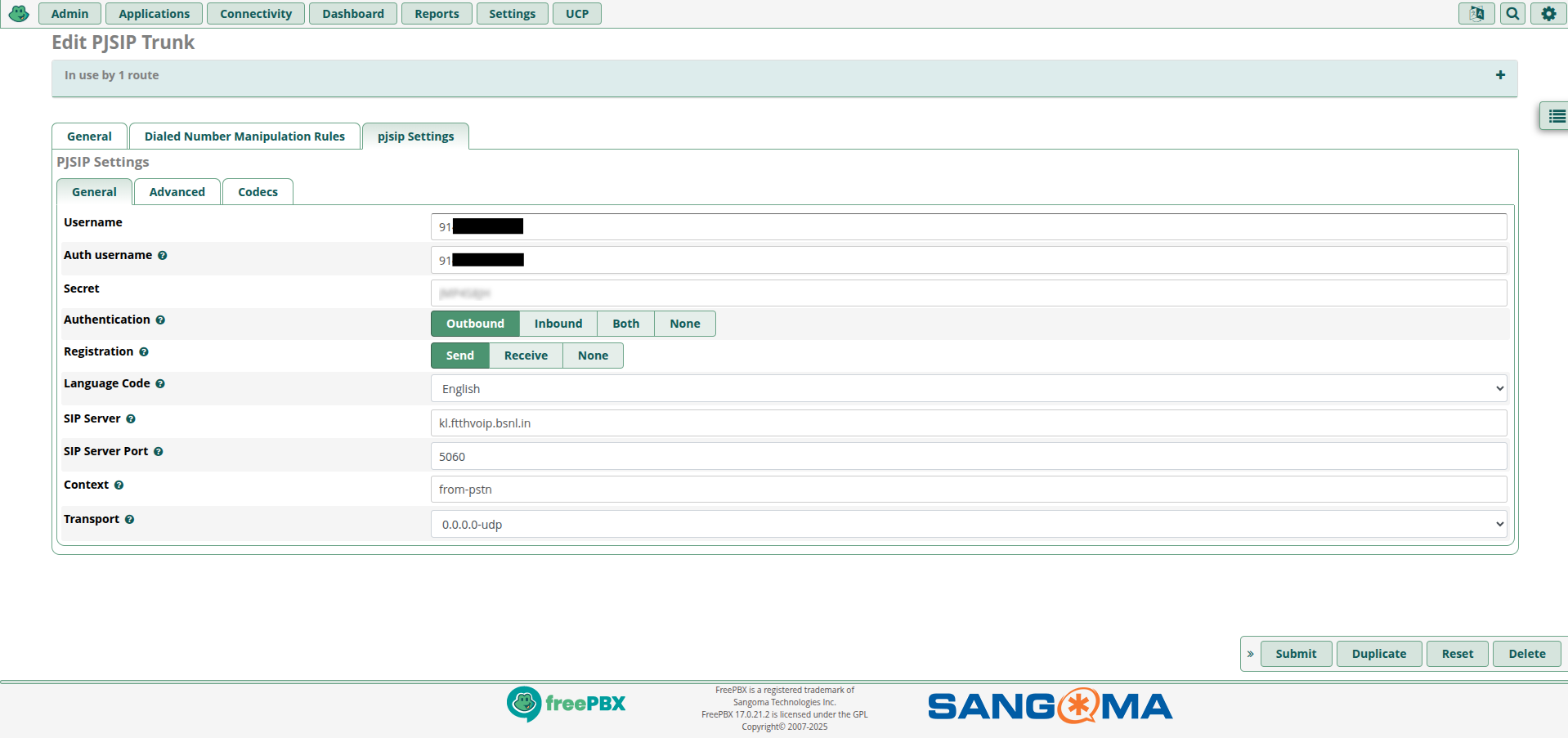

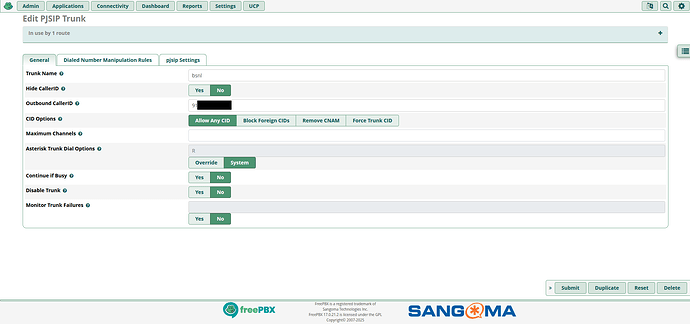

Screenshot From 2025-10-17 22-16-46
Screenshot From 2025-10-17 22-16-461918×903 73.9 KB

1918×903 77.1 KB

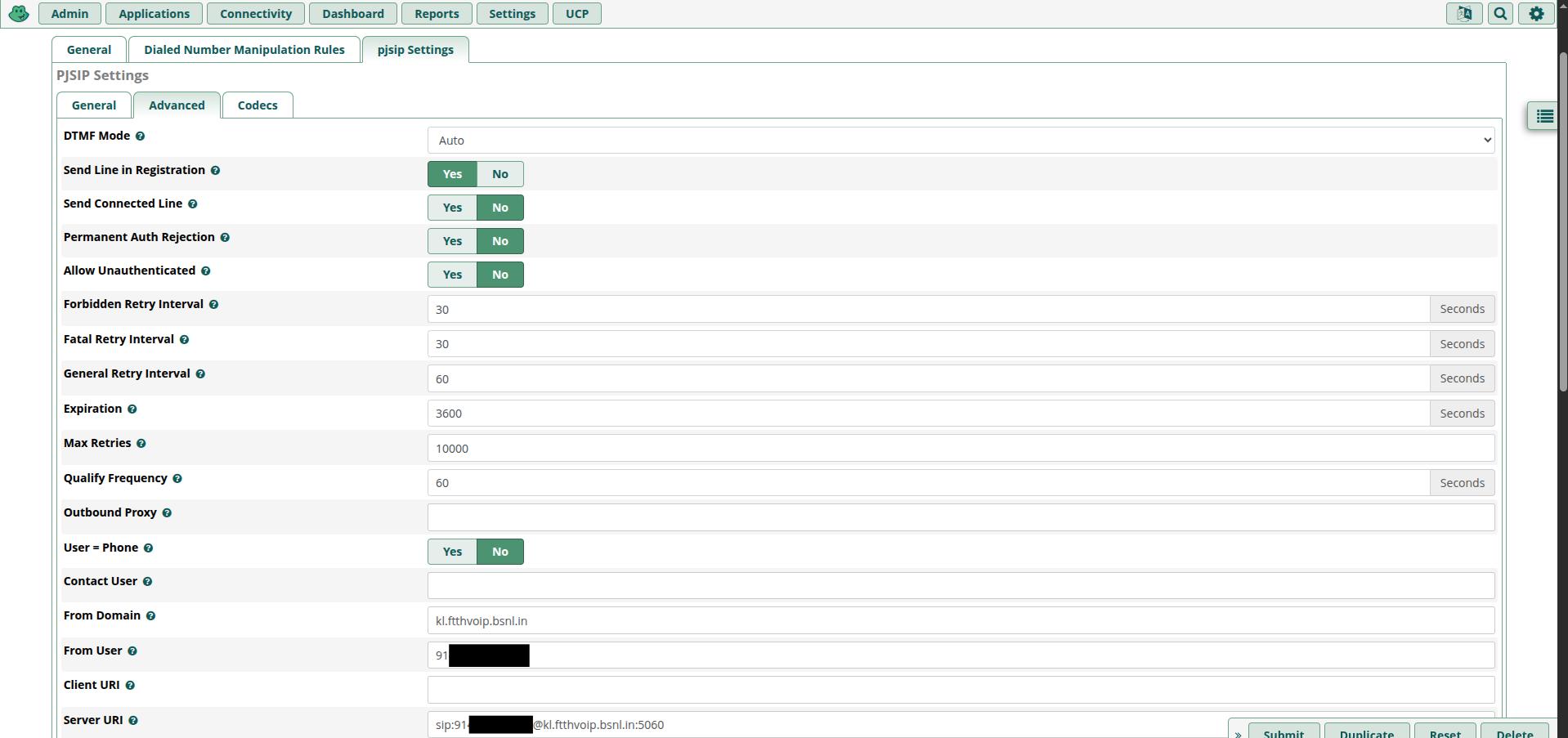

Screenshot From 2025-10-17 22-17-09
Screenshot From 2025-10-17 22-17-091918×903 83.4 KB

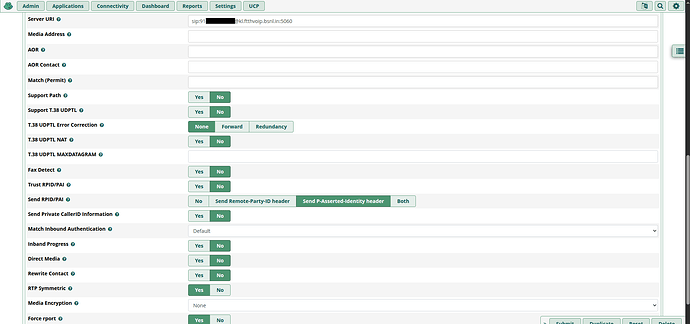

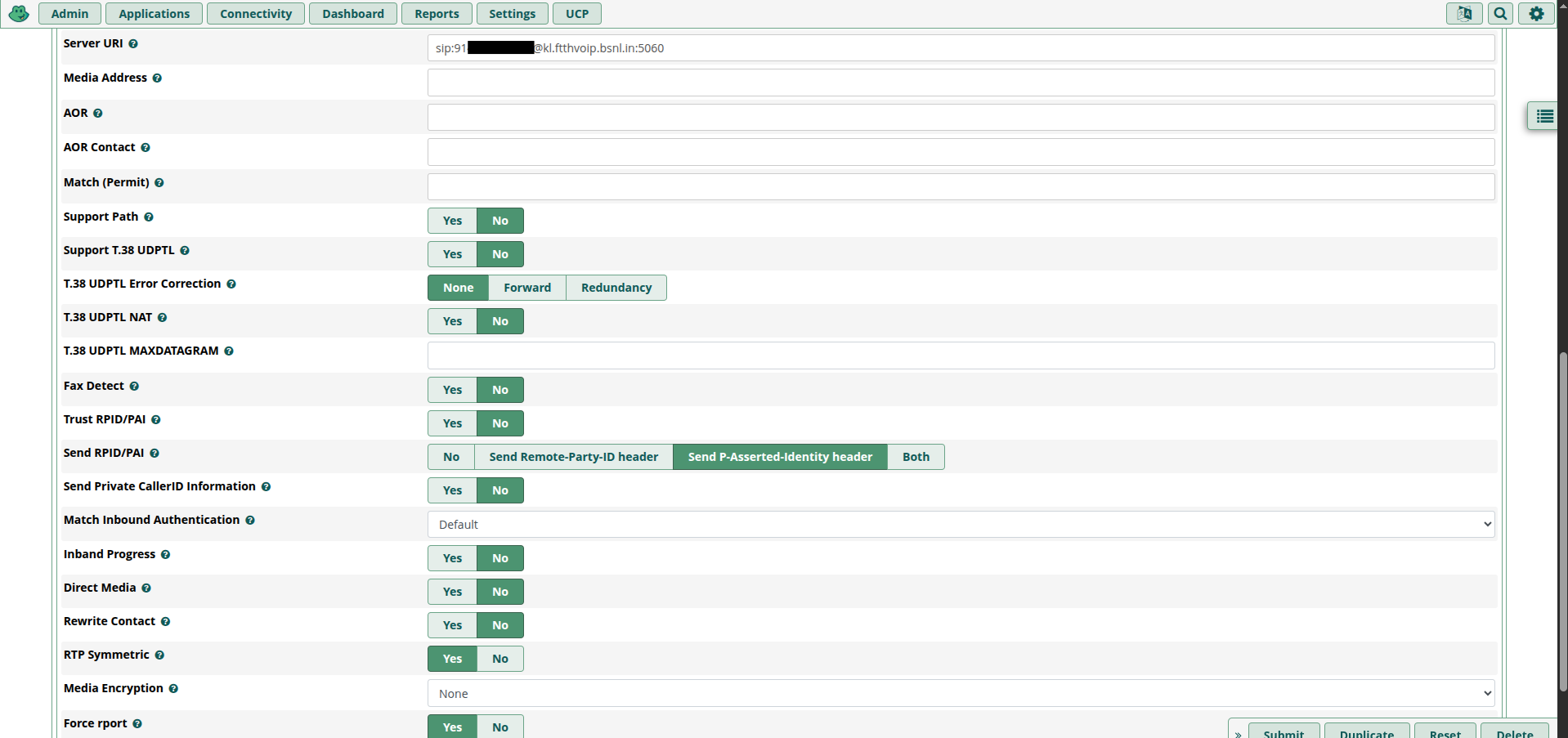

Screenshot From 2025-10-17 22-17-19
Screenshot From 2025-10-17 22-17-191918×903 84.1 KB

16

@Stewart1

[2025-10-17 17:58:22] VERBOSE[41313] res_pjsip_logger.c: <--- Received SIP response (431 bytes) from UDP:10.187.10.65:5060 --->
16	SIP/2.0 200 Keepalive
17	Via: SIP/2.0/UDP 192.168.1.103:5060;rport=5060;branch=z9hG4bKPj10b4d604-ba51-4789-91d4-ba3ca4fca3ec;received=192.168.1.103
18	From: <sip:[email protected]>;tag=b26999b3-9282-4a7f-91ed-0e13d55aca36
19	To: <sip:[email protected]>;tag=961e340e2c1fab158a5a91516c535816.3782cc52
20	Call-ID: ecb41b25-bc4b-4df1-acb6-04d844dffdac
21	CSeq: 35402 OPTIONS
22	Server: BSNL-SMP
23	Content-Length: 0
24
25
26	[2025-10-17 17:58:32] VERBOSE[41313] res_pjsip_logger.c: <--- Received SIP request (1821 bytes) from UDP:192.168.1.101:5060 --->
27	INVITE sip:[email protected] SIP/2.0
28	Via: SIP/2.0/UDP 10.10.10.223:5060;branch=z9hG4bK.VzQxg379H;rport
29	From: <sip:[email protected]>;tag=olYCB9Lbh
30	To: sip:[email protected]
31	CSeq: 20 INVITE
32	Call-ID: ZnE~XHIZjT
33	Max-Forwards: 70
34	Supported: replaces, outbound, gruu, path, record-aware
35	Allow: INVITE, ACK, CANCEL, OPTIONS, BYE, REFER, NOTIFY, MESSAGE, SUBSCRIBE, INFO, PRACK, UPDATE
36	Content-Type: application/sdp
37	Content-Length: 1116
38	Contact: <sip:[email protected];transport=udp>;expires=599;+org.linphone.specs="conference/2.0,ephemeral/1.1,groupchat/1.2,lime"
39	User-Agent: Linphone-Desktop/5.3.1 (pc-pc) ubuntu/25.04 Qt/5.15.2 LinphoneSDK/5.4.46-2-gbc9e72929
40
41	v=0
42	o=5000 2343 1734 IN IP4 10.10.10.223
43	s=Talk
44	c=IN IP4 10.10.10.223
45	t=0 0
46	a=ice-pwd:fea0b67325fa7c37b4f05c21
47	a=ice-ufrag:fc30a810
48	a=rtcp-xr:rcvr-rtt=all:10000 stat-summary=loss,dup,jitt,TTL voip-metrics
49	a=group:BUNDLE as
50	a=record:off
51	m=audio 49857 RTP/AVPF 0 8 18
52	c=IN IP4 qqq.qq.qqq.qq
53	a=fmtp:18 annexb=yes
54	a=rtcp-mux
55	a=mid:as
56	a=extmap:1 urn:ietf:params:rtp-hdrext:sdes:mid
57	a=rtcp:33853
58	a=candidate:1 1 UDP 2130706303 10.10.10.223 49857 typ host
59	a=candidate:1 2 UDP 2130706302 10.10.10.223 33853 typ host
60	a=candidate:2 1 UDP 2130706303 192.168.1.101 49857 typ host
61	a=candidate:2 2 UDP 2130706302 192.168.1.101 33853 typ host
62	a=candidate:3 1 UDP 2130706303 172.19.0.1 49857 typ host
63	a=candidate:3 2 UDP 2130706302 172.19.0.1 33853 typ host
64	a=candidate:4 1 UDP 2130706303 172.17.0.1 49857 typ host
65	a=candidate:4 2 UDP 2130706302 172.17.0.1 33853 typ host
66	a=candidate:5 1 UDP 1694498687 qqq.qq.qqq.qq 49857 typ srflx raddr 10.10.10.223 rport 49857
67	a=candidate:5 2 UDP 1694498686 qqq.qq.qqq.qq 33853 typ srflx raddr 10.10.10.223 rport 33853
68	a=rtcp-fb:* trr-int 1000
69	a=rtcp-fb:* ccm tmmbr
70
71	[2025-10-17 17:58:32] VERBOSE[147697] res_pjsip_logger.c: <--- Transmitting SIP response (464 bytes) to UDP:192.168.1.101:5060 --->
72	SIP/2.0 401 Unauthorized
73	Via: SIP/2.0/UDP 10.10.10.223:5060;rport=5060;received=192.168.1.101;branch=z9hG4bK.VzQxg379H
74	Call-ID: ZnE~XHIZjT
75	From: <sip:[email protected]>;tag=olYCB9Lbh
76	To: <sip:[email protected]>;tag=z9hG4bK.VzQxg379H
77	CSeq: 20 INVITE
78	WWW-Authenticate: Digest realm="asterisk",nonce="1760720312/85e0dd5b5f280db45f849b5aa9e091aa",opaque="631c56066cb94668",algorithm=MD5,qop="auth"
79	Server: FPBX-17.0.21.2(22.6.0)
80	Content-Length: 0
81
82
83	[2025-10-17 17:58:32] VERBOSE[41313] res_pjsip_logger.c: <--- Received SIP request (401 bytes) from UDP:192.168.1.101:5060 --->
84	ACK sip:[email protected] SIP/2.0
85	Via: SIP/2.0/UDP 10.10.10.223:5060;branch=z9hG4bK.VzQxg379H;rport
86	Call-ID: ZnE~XHIZjT
87	From: <sip:[email protected]>;tag=olYCB9Lbh
88	To: <sip:[email protected]>;tag=z9hG4bK.VzQxg379H
89	Contact: <sip:[email protected];transport=udp>;expires=599;+org.linphone.specs="conference/2.0,ephemeral/1.1,groupchat/1.2,lime"
90	Max-Forwards: 70
91	CSeq: 20 ACK
92
93
94	[2025-10-17 17:58:32] VERBOSE[41313] res_pjsip_logger.c: <--- Received SIP request (2106 bytes) from UDP:192.168.1.101:5060 --->
95	INVITE sip:[email protected] SIP/2.0
96	Via: SIP/2.0/UDP 10.10.10.223:5060;branch=z9hG4bK.pqOruN-yP;rport
97	From: <sip:[email protected]>;tag=olYCB9Lbh
98	To: sip:[email protected]
99	CSeq: 21 INVITE
100	Call-ID: ZnE~XHIZjT
101	Max-Forwards: 70
102	Supported: replaces, outbound, gruu, path, record-aware
103	Allow: INVITE, ACK, CANCEL, OPTIONS, BYE, REFER, NOTIFY, MESSAGE, SUBSCRIBE, INFO, PRACK, UPDATE
104	Content-Type: application/sdp
105	Content-Length: 1116
106	Contact: <sip:[email protected];transport=udp>;expires=599;+org.linphone.specs="conference/2.0,ephemeral/1.1,groupchat/1.2,lime"
107	User-Agent: Linphone-Desktop/5.3.1 (pc-pc) ubuntu/25.04 Qt/5.15.2 LinphoneSDK/5.4.46-2-gbc9e72929
108	Authorization: Digest realm="asterisk", nonce="1760720312/85e0dd5b5f280db45f849b5aa9e091aa", algorithm=MD5, opaque="631c56066cb94668", username="5000", uri="sip:[email protected]", response="16ddb8f4addc18a7561193d58f9f651e", cnonce="CUuYTYIUkx93lAGf", nc=00000001, qop=auth
109
110	v=0
111	o=5000 2343 1734 IN IP4 10.10.10.223
112	s=Talk
113	c=IN IP4 10.10.10.223
114	t=0 0
115	a=ice-pwd:fea0b67325fa7c37b4f05c21
116	a=ice-ufrag:fc30a810
117	a=rtcp-xr:rcvr-rtt=all:10000 stat-summary=loss,dup,jitt,TTL voip-metrics
118	a=group:BUNDLE as
119	a=record:off
120	m=audio 49857 RTP/AVPF 0 8 18
121	c=IN IP4 qqq.qq.qqq.qq
122	a=fmtp:18 annexb=yes
123	a=rtcp-mux
124	a=mid:as
125	a=extmap:1 urn:ietf:params:rtp-hdrext:sdes:mid
126	a=rtcp:33853
127	a=candidate:1 1 UDP 2130706303 10.10.10.223 49857 typ host
128	a=candidate:1 2 UDP 2130706302 10.10.10.223 33853 typ host
129	a=candidate:2 1 UDP 2130706303 192.168.1.101 49857 typ host
130	a=candidate:2 2 UDP 2130706302 192.168.1.101 33853 typ host
131	a=candidate:3 1 UDP 2130706303 172.19.0.1 49857 typ host
132	a=candidate:3 2 UDP 2130706302 172.19.0.1 33853 typ host
133	a=candidate:4 1 UDP 2130706303 172.17.0.1 49857 typ host
134	a=candidate:4 2 UDP 2130706302 172.17.0.1 33853 typ host
135	a=candidate:5 1 UDP 1694498687 qqq.qq.qqq.qq 49857 typ srflx raddr 10.10.10.223 rport 49857
136	a=candidate:5 2 UDP 1694498686 qqq.qq.qqq.qq 33853 typ srflx raddr 10.10.10.223 rport 33853
137	a=rtcp-fb:* trr-int 1000
138	a=rtcp-fb:* ccm tmmbr
139
140	[2025-10-17 17:58:32] VERBOSE[147697] res_pjsip_logger.c: <--- Transmitting SIP response (290 bytes) to UDP:192.168.1.101:5060 --->
141	SIP/2.0 100 Trying
142	Via: SIP/2.0/UDP 10.10.10.223:5060;rport=5060;received=192.168.1.101;branch=z9hG4bK.pqOruN-yP
143	Call-ID: ZnE~XHIZjT
144	From: <sip:[email protected]>;tag=olYCB9Lbh
145	To: <sip:[email protected]>
146	CSeq: 21 INVITE
147	Server: FPBX-17.0.21.2(22.6.0)
148	Content-Length: 0
149
150
151	[2025-10-17 17:58:32] ERROR[147697] res_pjsip_session.c: 5000: Couldn't negotiate stream 0:audio-0:audio:sendrecv (nothing)
152	[2025-10-17 17:58:32] VERBOSE[147697] res_pjsip_logger.c: <--- Transmitting SIP response (344 bytes) to UDP:192.168.1.101:5060 --->
153	SIP/2.0 488 Not Acceptable Here
154	Via: SIP/2.0/UDP 10.10.10.223:5060;rport=5060;received=192.168.1.101;branch=z9hG4bK.pqOruN-yP
155	Call-ID: ZnE~XHIZjT
156	From: <sip:[email protected]>;tag=olYCB9Lbh
157	To: <sip:[email protected]>;tag=92718b80-2444-41dc-ab84-3d48f89ebd13
158	CSeq: 21 INVITE
159	Server: FPBX-17.0.21.2(22.6.0)
160	Content-Length: 0
161
162
163	[2025-10-17 17:58:32] VERBOSE[41313] res_pjsip_logger.c: <--- Received SIP request (420 bytes) from UDP:192.168.1.101:5060 --->
164	ACK sip:[email protected] SIP/2.0
165	Via: SIP/2.0/UDP 10.10.10.223:5060;branch=z9hG4bK.pqOruN-yP;rport
166	Call-ID: ZnE~XHIZjT
167	From: <sip:[email protected]>;tag=olYCB9Lbh
168	To: <sip:[email protected]>;tag=92718b80-2444-41dc-ab84-3d48f89ebd13
169	Contact: <sip:[email protected];transport=udp>;expires=599;+org.linphone.specs="conference/2.0,ephemeral/1.1,groupchat/1.2,lime"
170	Max-Forwards: 70
171	CSeq: 21 ACK
172
173
174	[2025-10-17 17:58:32] VERBOSE[41313] res_pjsip_logger.c: <--- Received SIP request (1820 bytes) from UDP:192.168.1.101:5060 --->
175	INVITE sip:[email protected] SIP/2.0
176	Via: SIP/2.0/UDP 10.10.10.223:5060;branch=z9hG4bK.7W59MmamE;rport
177	From: <sip:[email protected]>;tag=B5GpVw49Q
178	To: sip:[email protected]
179	CSeq: 20 INVITE
180	Call-ID: YkrzKiR1pd
181	Max-Forwards: 70
182	Supported: replaces, outbound, gruu, path, record-aware
183	Allow: INVITE, ACK, CANCEL, OPTIONS, BYE, REFER, NOTIFY, MESSAGE, SUBSCRIBE, INFO, PRACK, UPDATE
184	Content-Type: application/sdp
185	Content-Length: 1115
186	Contact: <sip:[email protected];transport=udp>;expires=599;+org.linphone.specs="conference/2.0,ephemeral/1.1,groupchat/1.2,lime"
187	User-Agent: Linphone-Desktop/5.3.1 (pc-pc) ubuntu/25.04 Qt/5.15.2 LinphoneSDK/5.4.46-2-gbc9e72929
188
189	v=0
190	o=5000 2343 1736 IN IP4 10.10.10.223
191	s=Talk
192	c=IN IP4 10.10.10.223
193	t=0 0
194	a=ice-pwd:d155f10ffa04ec225fc91f91
195	a=ice-ufrag:9cfef9e8
196	a=rtcp-xr:rcvr-rtt=all:10000 stat-summary=loss,dup,jitt,TTL voip-metrics
197	a=group:BUNDLE as
198	a=record:off
199	m=audio 39251 RTP/AVP 0 8 18
200	c=IN IP4 qqq.qq.qqq.qq
201	a=fmtp:18 annexb=yes
202	a=rtcp-mux
203	a=mid:as
204	a=extmap:1 urn:ietf:params:rtp-hdrext:sdes:mid
205	a=rtcp:41709
206	a=candidate:1 1 UDP 2130706303 10.10.10.223 39251 typ host
207	a=candidate:1 2 UDP 2130706302 10.10.10.223 41709 typ host
208	a=candidate:2 1 UDP 2130706303 192.168.1.101 39251 typ host
209	a=candidate:2 2 UDP 2130706302 192.168.1.101 41709 typ host
210	a=candidate:3 1 UDP 2130706303 172.19.0.1 39251 typ host
211	a=candidate:3 2 UDP 2130706302 172.19.0.1 41709 typ host
212	a=candidate:4 1 UDP 2130706303 172.17.0.1 39251 typ host
213	a=candidate:4 2 UDP 2130706302 172.17.0.1 41709 typ host
214	a=candidate:5 1 UDP 1694498687 qqq.qq.qqq.qq 39251 typ srflx raddr 10.10.10.223 rport 39251
215	a=candidate:5 2 UDP 1694498686 qqq.qq.qqq.qq 41709 typ srflx raddr 10.10.10.223 rport 41709
216	a=rtcp-fb:* trr-int 1000
217	a=rtcp-fb:* ccm tmmbr
218
219	[2025-10-17 17:58:32] VERBOSE[147697] res_pjsip_logger.c: <--- Transmitting SIP response (464 bytes) to UDP:192.168.1.101:5060 --->
220	SIP/2.0 401 Unauthorized
221	Via: SIP/2.0/UDP 10.10.10.223:5060;rport=5060;received=192.168.1.101;branch=z9hG4bK.7W59MmamE
222	Call-ID: YkrzKiR1pd
223	From: <sip:[email protected]>;tag=B5GpVw49Q
224	To: <sip:[email protected]>;tag=z9hG4bK.7W59MmamE
225	CSeq: 20 INVITE
226	WWW-Authenticate: Digest realm="asterisk",nonce="1760720312/85e0dd5b5f280db45f849b5aa9e091aa",opaque="4865247b3251cec3",algorithm=MD5,qop="auth"
227	Server: FPBX-17.0.21.2(22.6.0)
228	Content-Length: 0
229
230
231	[2025-10-17 17:58:32] VERBOSE[41313] res_pjsip_logger.c: <--- Received SIP request (401 bytes) from UDP:192.168.1.101:5060 --->
232	ACK sip:[email protected] SIP/2.0
233	Via: SIP/2.0/UDP 10.10.10.223:5060;branch=z9hG4bK.7W59MmamE;rport
234	Call-ID: YkrzKiR1pd
235	From: <sip:[email protected]>;tag=B5GpVw49Q
236	To: <sip:[email protected]>;tag=z9hG4bK.7W59MmamE
237	Contact: <sip:[email protected];transport=udp>;expires=599;+org.linphone.specs="conference/2.0,ephemeral/1.1,groupchat/1.2,lime"
238	Max-Forwards: 70
239	CSeq: 20 ACK
240
241
242	[2025-10-17 17:58:32] VERBOSE[41313] res_pjsip_logger.c: <--- Received SIP request (2105 bytes) from UDP:192.168.1.101:5060 --->
243	INVITE sip:[email protected] SIP/2.0
244	Via: SIP/2.0/UDP 10.10.10.223:5060;branch=z9hG4bK.bifwwK~BC;rport
245	From: <sip:[email protected]>;tag=B5GpVw49Q
246	To: sip:[email protected]
247	CSeq: 21 INVITE
248	Call-ID: YkrzKiR1pd
249	Max-Forwards: 70
250	Supported: replaces, outbound, gruu, path, record-aware
251	Allow: INVITE, ACK, CANCEL, OPTIONS, BYE, REFER, NOTIFY, MESSAGE, SUBSCRIBE, INFO, PRACK, UPDATE
252	Content-Type: application/sdp
253	Content-Length: 1115
254	Contact: <sip:[email protected];transport=udp>;expires=599;+org.linphone.specs="conference/2.0,ephemeral/1.1,groupchat/1.2,lime"
255	User-Agent: Linphone-Desktop/5.3.1 (pc-pc) ubuntu/25.04 Qt/5.15.2 LinphoneSDK/5.4.46-2-gbc9e72929
256	Authorization: Digest realm="asterisk", nonce="1760720312/85e0dd5b5f280db45f849b5aa9e091aa", algorithm=MD5, opaque="4865247b3251cec3", username="5000", uri="sip:[email protected]", response="9cc70926322e1135310eb75192460582", cnonce="NDPCmj1SMiKtA2Pw", nc=00000001, qop=auth
257
258	v=0
259	o=5000 2343 1736 IN IP4 10.10.10.223
260	s=Talk
261	c=IN IP4 10.10.10.223
262	t=0 0
263	a=ice-pwd:d155f10ffa04ec225fc91f91
264	a=ice-ufrag:9cfef9e8
265	a=rtcp-xr:rcvr-rtt=all:10000 stat-summary=loss,dup,jitt,TTL voip-metrics
266	a=group:BUNDLE as
267	a=record:off
268	m=audio 39251 RTP/AVP 0 8 18
269	c=IN IP4 qqq.qq.qqq.qq
270	a=fmtp:18 annexb=yes
271	a=rtcp-mux
272	a=mid:as
273	a=extmap:1 urn:ietf:params:rtp-hdrext:sdes:mid
274	a=rtcp:41709
275	a=candidate:1 1 UDP 2130706303 10.10.10.223 39251 typ host
276	a=candidate:1 2 UDP 2130706302 10.10.10.223 41709 typ host
277	a=candidate:2 1 UDP 2130706303 192.168.1.101 39251 typ host
278	a=candidate:2 2 UDP 2130706302 192.168.1.101 41709 typ host
279	a=candidate:3 1 UDP 2130706303 172.19.0.1 39251 typ host
280	a=candidate:3 2 UDP 2130706302 172.19.0.1 41709 typ host
281	a=candidate:4 1 UDP 2130706303 172.17.0.1 39251 typ host
282	a=candidate:4 2 UDP 2130706302 172.17.0.1 41709 typ host
283	a=candidate:5 1 UDP 1694498687 qqq.qq.qqq.qq 39251 typ srflx raddr 10.10.10.223 rport 39251
284	a=candidate:5 2 UDP 1694498686 qqq.qq.qqq.qq 41709 typ srflx raddr 10.10.10.223 rport 41709
285	a=rtcp-fb:* trr-int 1000
286	a=rtcp-fb:* ccm tmmbr
287
288	[2025-10-17 17:58:32] VERBOSE[147697] res_pjsip_logger.c: <--- Transmitting SIP response (290 bytes) to UDP:192.168.1.101:5060 --->
289	SIP/2.0 100 Trying
290	Via: SIP/2.0/UDP 10.10.10.223:5060;rport=5060;received=192.168.1.101;branch=z9hG4bK.bifwwK~BC
291	Call-ID: YkrzKiR1pd
292	From: <sip:[email protected]>;tag=B5GpVw49Q
293	To: <sip:[email protected]>
294	CSeq: 21 INVITE
295	Server: FPBX-17.0.21.2(22.6.0)
296	Content-Length: 0
297
298
299	[2025-10-17 17:58:32] VERBOSE[147697] netsock2.c: Using SIP RTP Audio TOS bits 184
300	[2025-10-17 17:58:32] VERBOSE[147697] netsock2.c: Using SIP RTP Audio CoS mark 5
301	[2025-10-17 17:58:32] ERROR[147697] res_pjsip_header_funcs.c: No headers had been previously added to this session.
302	[2025-10-17 17:58:32] VERBOSE[184812][C-00000005] app_stack.c: Spawn extension (from-pstn, 09983595359, 1) exited non-zero on 'PJSIP/bsnl-00000009'
303	[2025-10-17 17:58:32] VERBOSE[147697] res_pjsip_logger.c: <--- Transmitting SIP response (557 bytes) to UDP:192.168.1.101:5060 --->
304	SIP/2.0 180 Ringing
305	Via: SIP/2.0/UDP 10.10.10.223:5060;rport=5060;received=192.168.1.101;branch=z9hG4bK.bifwwK~BC
306	Call-ID: YkrzKiR1pd
307	From: <sip:[email protected]>;tag=B5GpVw49Q
308	To: <sip:[email protected]>;tag=a547eee6-fbd6-4ee7-b294-c980e01ee6c5
309	CSeq: 21 INVITE
310	Server: FPBX-17.0.21.2(22.6.0)
311	Contact: <sip:192.168.1.103:5060>
312	Allow: OPTIONS, REGISTER, SUBSCRIBE, NOTIFY, PUBLISH, INVITE, ACK, BYE, CANCEL, UPDATE, PRACK, INFO, MESSAGE, REFER
313	P-Asserted-Identity: "CID:91XXXXXXXXXX" <sip:[email protected]>
314	Content-Length: 0
315
316
317	[2025-10-17 17:58:33] VERBOSE[147697] res_pjsip_logger.c: <--- Transmitting SIP request (1156 bytes) to UDP:10.187.10.65:5060 --->
318	INVITE sip:[email protected]:5060 SIP/2.0
319	Via: SIP/2.0/UDP yy.yyy.yyy.yyy:5060;rport;branch=z9hG4bKPjffb00009-a226-40eb-be68-66693a7d2682
320	From: <sip:[email protected]>;tag=cb7fdc01-9867-4ab0-a8f5-f3f268eb99d6
321	To: <sip:[email protected]>
322	Contact: <sip:[email protected]:5060>
323	Call-ID: 41eded9c-5fe4-4024-a6b7-36362985cfb8
324	CSeq: 15387 INVITE
325	Allow: OPTIONS, REGISTER, SUBSCRIBE, NOTIFY, PUBLISH, INVITE, ACK, BYE, CANCEL, UPDATE, PRACK, INFO, MESSAGE, REFER
326	Supported: 100rel, timer, replaces, norefersub, histinfo
327	Session-Expires: 1800
328	Min-SE: 90
329	P-Asserted-Identity: <sip:[email protected]>
330	Max-Forwards: 70
331	User-Agent: FPBX-17.0.21.2(22.6.0)
332	Content-Type: application/sdp
333	Content-Length: 375
334
335	v=0
336	o=- 2073867518 2073867518 IN IP4 yy.yyy.yyy.yyy
337	s=Asterisk
338	c=IN IP4 yy.yyy.yyy.yyy
339	t=0 0
340	m=audio 13766 RTP/AVP 0 8 107 3 101 102
341	a=rtpmap:0 PCMU/8000
342	a=rtpmap:8 PCMA/8000
343	a=rtpmap:107 opus/48000/2
344	a=rtpmap:3 GSM/8000
345	a=rtpmap:101 telephone-event/8000
346	a=fmtp:101 0-16
347	a=rtpmap:102 telephone-event/48000
348	a=fmtp:102 0-16
349	a=ptime:20
350	a=maxptime:60
351	a=sendrecv
352
353	[2025-10-17 17:58:33] VERBOSE[41313] res_pjsip_logger.c: <--- Received SIP response (412 bytes) from UDP:10.187.10.65:5060 --->
354	SIP/2.0 100 trying -- your call is important to us
355	Via: SIP/2.0/UDP 192.168.1.103:5060;rport=5060;branch=z9hG4bKPjffb00009-a226-40eb-be68-66693a7d2682;received=192.168.1.103
356	From: <sip:[email protected]>;tag=cb7fdc01-9867-4ab0-a8f5-f3f268eb99d6
357	To: <sip:[email protected]>
358	Call-ID: 41eded9c-5fe4-4024-a6b7-36362985cfb8
359	CSeq: 15387 INVITE
360	Server: BSNL-SMP
361	Content-Length: 0
362
363
364	[2025-10-17 17:58:33] VERBOSE[41313] res_pjsip_logger.c: <--- Received SIP response (531 bytes) from UDP:10.187.10.65:5060 --->
365	SIP/2.0 403 Forbidden
366	Record-Route: <sip:10.187.10.65;lr;did=a18.8137>
367	Call-ID: 41eded9c-5fe4-4024-a6b7-36362985cfb8
368	CSeq: 15387 INVITE
369	From: <sip:[email protected]>;tag=cb7fdc01-9867-4ab0-a8f5-f3f268eb99d6
370	To: <sip:[email protected]>;tag=SBC+1+1ef5009c+d01fc181
371	Via: SIP/2.0/UDP 192.168.1.103:5060;received=192.168.1.103;rport=5060;branch=z9hG4bKPjffb00009-a226-40eb-be68-66693a7d2682
372	Server: SIP/2.0
373	Organization: CDOT
374	Supported: timer
375	Content-Length: 0
376	Contact: <sip:10.187.6.12:5060>
377
378
379	[2025-10-17 17:58:33] VERBOSE[147697] res_pjsip_logger.c: <--- Transmitting SIP request (449 bytes) to UDP:10.187.10.65:5060 --->
380	ACK sip:[email protected]:5060 SIP/2.0
381	Via: SIP/2.0/UDP yy.yyy.yyy.yyy:5060;rport;branch=z9hG4bKPjffb00009-a226-40eb-be68-66693a7d2682
382	From: <sip:[email protected]>;tag=cb7fdc01-9867-4ab0-a8f5-f3f268eb99d6
383	To: <sip:[email protected]>;tag=SBC+1+1ef5009c+d01fc181
384	Call-ID: 41eded9c-5fe4-4024-a6b7-36362985cfb8
385	CSeq: 15387 ACK
386	Max-Forwards: 70
387	User-Agent: FPBX-17.0.21.2(22.6.0)
388	Content-Length: 0
389
390
391	[2025-10-17 17:58:33] VERBOSE[184812][C-00000005] app_stack.c: Spawn extension (from-pstn, 09983595359, 1) exited non-zero on 'PJSIP/bsnl-00000009'
392	[2025-10-17 17:58:33] VERBOSE[184812][C-00000005] app_dial.c: Everyone is busy/congested at this time (1:0/0/1)
393	[2025-10-17 17:58:33] VERBOSE[147697] res_pjsip_logger.c: <--- Transmitting SIP response (795 bytes) to UDP:192.168.1.101:5060 --->
394	SIP/2.0 183 Session Progress
395	Via: SIP/2.0/UDP 10.10.10.223:5060;rport=5060;received=192.168.1.101;branch=z9hG4bK.bifwwK~BC
396	Call-ID: YkrzKiR1pd
397	From: <sip:[email protected]>;tag=B5GpVw49Q
398	To: <sip:[email protected]>;tag=a547eee6-fbd6-4ee7-b294-c980e01ee6c5
399	CSeq: 21 INVITE
400	Server: FPBX-17.0.21.2(22.6.0)
401	Allow: OPTIONS, REGISTER, SUBSCRIBE, NOTIFY, PUBLISH, INVITE, ACK, BYE, CANCEL, UPDATE, PRACK, INFO, MESSAGE, REFER
402	Contact: <sip:192.168.1.103:5060>
403	P-Asserted-Identity: "CID:91XXXXXXXXXX" <sip:[email protected]>
404	Content-Type: application/sdp
405	Content-Length: 195
406
407	v=0
408	o=- 2343 1738 IN IP4 192.168.1.103
409	s=Asterisk
410	c=IN IP4 192.168.1.103
411	t=0 0
412	m=audio 13246 RTP/AVP 0 8
413	a=rtpmap:0 PCMU/8000
414	a=rtpmap:8 PCMA/8000
415	a=ptime:20
416	a=maxptime:140
417	a=sendrecv
418
419	[2025-10-17 17:58:37] VERBOSE[147697] res_pjsip_logger.c: <--- Transmitting SIP response (558 bytes) to UDP:192.168.1.101:5060 --->
420	SIP/2.0 503 Service Unavailable
421	Via: SIP/2.0/UDP 10.10.10.223:5060;rport=5060;received=192.168.1.101;branch=z9hG4bK.bifwwK~BC
422	Call-ID: YkrzKiR1pd
423	From: <sip:[email protected]>;tag=B5GpVw49Q
424	To: <sip:[email protected]>;tag=a547eee6-fbd6-4ee7-b294-c980e01ee6c5
425	CSeq: 21 INVITE
426	Server: FPBX-17.0.21.2(22.6.0)
427	Allow: OPTIONS, REGISTER, SUBSCRIBE, NOTIFY, PUBLISH, INVITE, ACK, BYE, CANCEL, UPDATE, PRACK, INFO, MESSAGE, REFER
428	Reason: Q.850;cause=34
429	P-Asserted-Identity: "CID:91XXXXXXXXXX" <sip:[email protected]>
430	Content-Length: 0
431
432
433	[2025-10-17 17:58:37] VERBOSE[184812][C-00000005] pbx.c: Spawn extension (macro-outisbusy, s, 5) exited non-zero on 'PJSIP/5000-00000008'
434	[2025-10-17 17:58:37] VERBOSE[41313] res_pjsip_logger.c: <--- Received SIP request (420 bytes) from UDP:192.168.1.101:5060 --->
435	ACK sip:[email protected] SIP/2.0
436	Via: SIP/2.0/UDP 10.10.10.223:5060;branch=z9hG4bK.bifwwK~BC;rport
437	Call-ID: YkrzKiR1pd
438	From: <sip:[email protected]>;tag=B5GpVw49Q
439	To: <sip:[email protected]>;tag=a547eee6-fbd6-4ee7-b294-c980e01ee6c5
440	Contact: <sip:[email protected];transport=udp>;expires=599;+org.linphone.specs="conference/2.0,ephemeral/1.1,groupchat/1.2,lime"
441	Max-Forwards: 70
442	CSeq: 21 ACK
443
444
445	[2025-10-17 17:58:43] VERBOSE[147697] res_pjsip_logger.c: <--- Transmitting SIP request (428 bytes) to UDP:192.168.1.101:5060 --->
446	OPTIONS sip:[email protected]:5060 SIP/2.0
447	Via: SIP/2.0/UDP 192.168.1.103:5060;rport;branch=z9hG4bKPj921f315a-521c-4271-8ac6-6af6e677bb59
448	From: <sip:[email protected]>;tag=e3eab935-cbd1-4917-b7c7-196fa5c4b2e5
449	To: <sip:[email protected]>
450	Contact: <sip:[email protected]:5060>
451	Call-ID: fd471ea5-c53c-45c8-9437-f9f16437132a
452	CSeq: 55860 OPTIONS
453	Max-Forwards: 70
454	User-Agent: FPBX-17.0.21.2(22.6.0)
455	Content-Length: 0
456
457
458	[2025-10-17 17:58:43] VERBOSE[41313] res_pjsip_logger.c: <--- Received SIP response (295 bytes) from UDP:192.168.1.101:5060 --->
459	SIP/2.0 200 Ok
460	Via: SIP/2.0/UDP 192.168.1.103:5060;rport;branch=z9hG4bKPj921f315a-521c-4271-8ac6-6af6e677bb59
461	From: <sip:[email protected]>;tag=e3eab935-cbd1-4917-b7c7-196fa5c4b2e5
462	To: <sip:[email protected]>;tag=A0Ti5
463	Call-ID: fd471ea5-c53c-45c8-9437-f9f16437132a
464	CSeq: 55860 OPTIONS```
17

Your provider is rejecting the call.

18

I noticed that, there maybe 2 reasons I presume, one being my provider not supporting pjsip and 2nd being any error in my config.
Earlier with chan_sip it was working. Now I fresh installed FreePBX v17 which is not having legacy chan_sip.

19

You should also provide a trace of it working with chan_sip, so that it can be compared.

20

Logs using chan_sip here

21

Unfortunately, the log for the chan_sip case is missing the SIP trace for the trunk.
You need to issue
sip set debug on
as well as
pjsip set logger on
to get the trace on both ends.
