Your router appears to have a SIP ALG (sometimes called SIP Passthrough or similar) enabled.
If there is a setting to disable it, try that. Otherwise, we can look for a workaround after trying some simple measures.
- The two cases are presenting a different set of codecs. Try disabling all but alaw and ulaw.
- The pjsip case is sending a PAI header, which chan_sip does not. In the trunk, set Send RPID/PAI to No.
- Possibly a DNS issue. pjsip was sending the INVITE to 10.187.10.65. Was chan_sip sending to the same address?
If it’s not any of the above and you can’t easily disable the ALG, please describe your network setup: Modem/ONT make/model? Is it configured as a router? Separate router, if any?

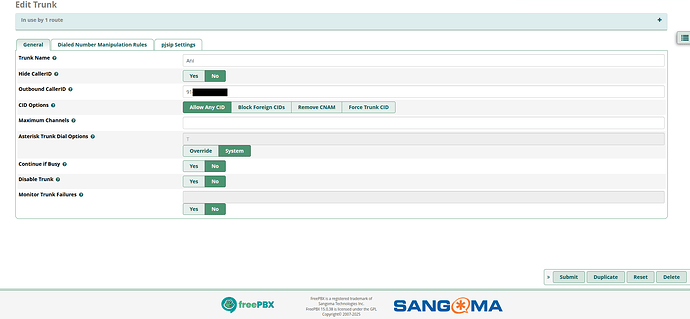

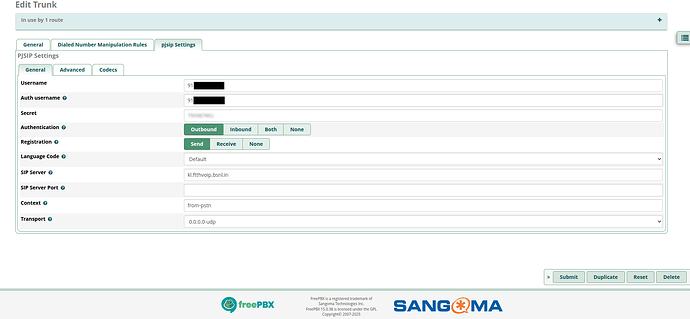

My config:
Theres a modem(TP-LINK Archer XR500V) which receives fiber input. In that we register a vlan with connection type as DynamicIP. Then we bind that connection to a LAN port of modem, where the freepbx server connects.
I disabled SIP ALG.

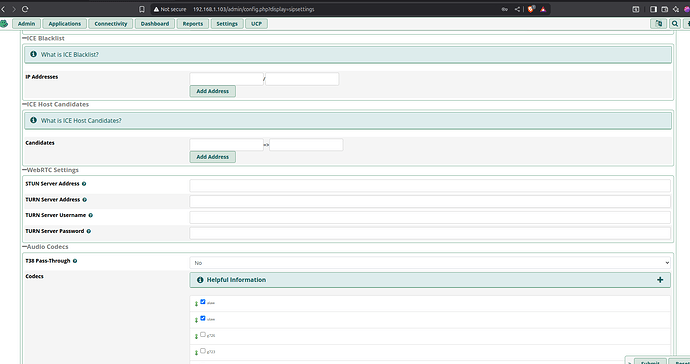

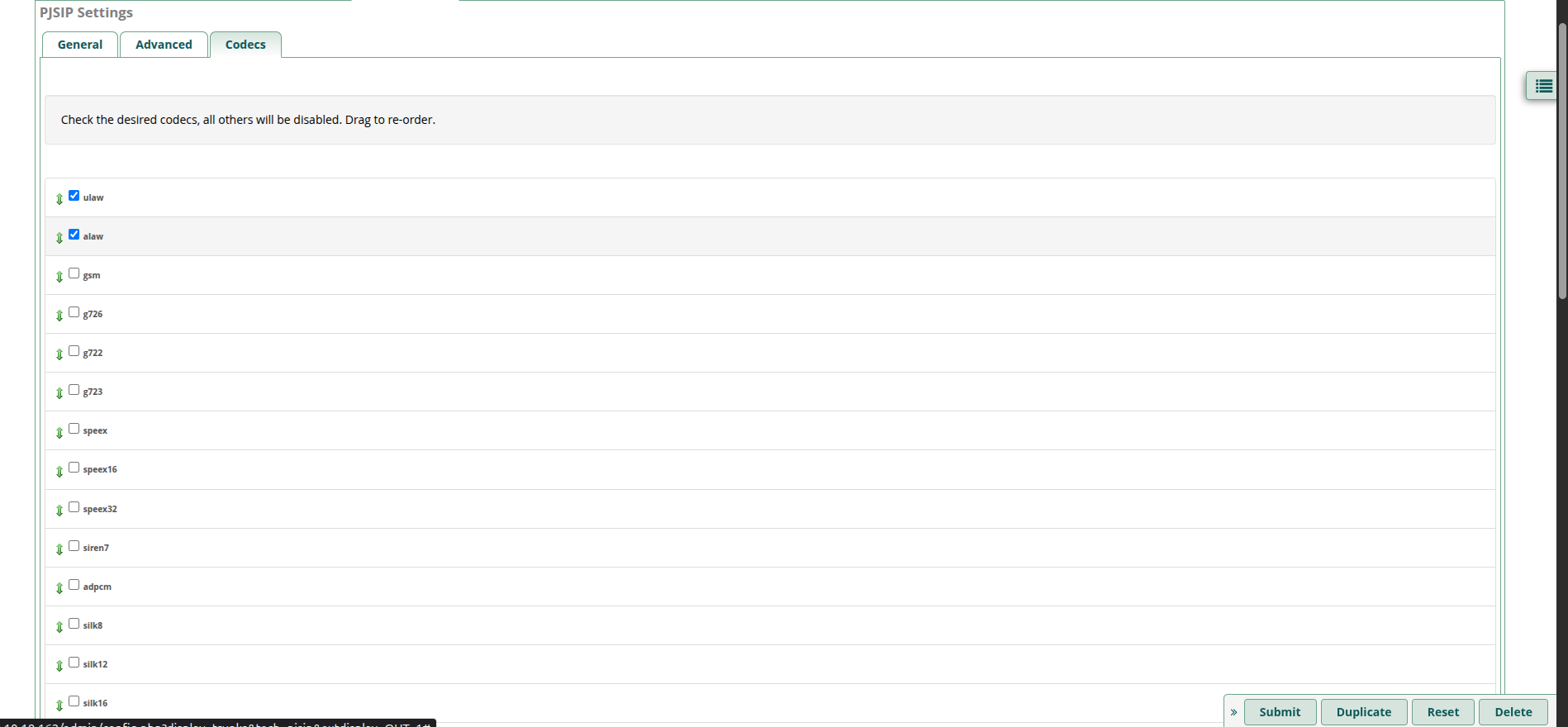

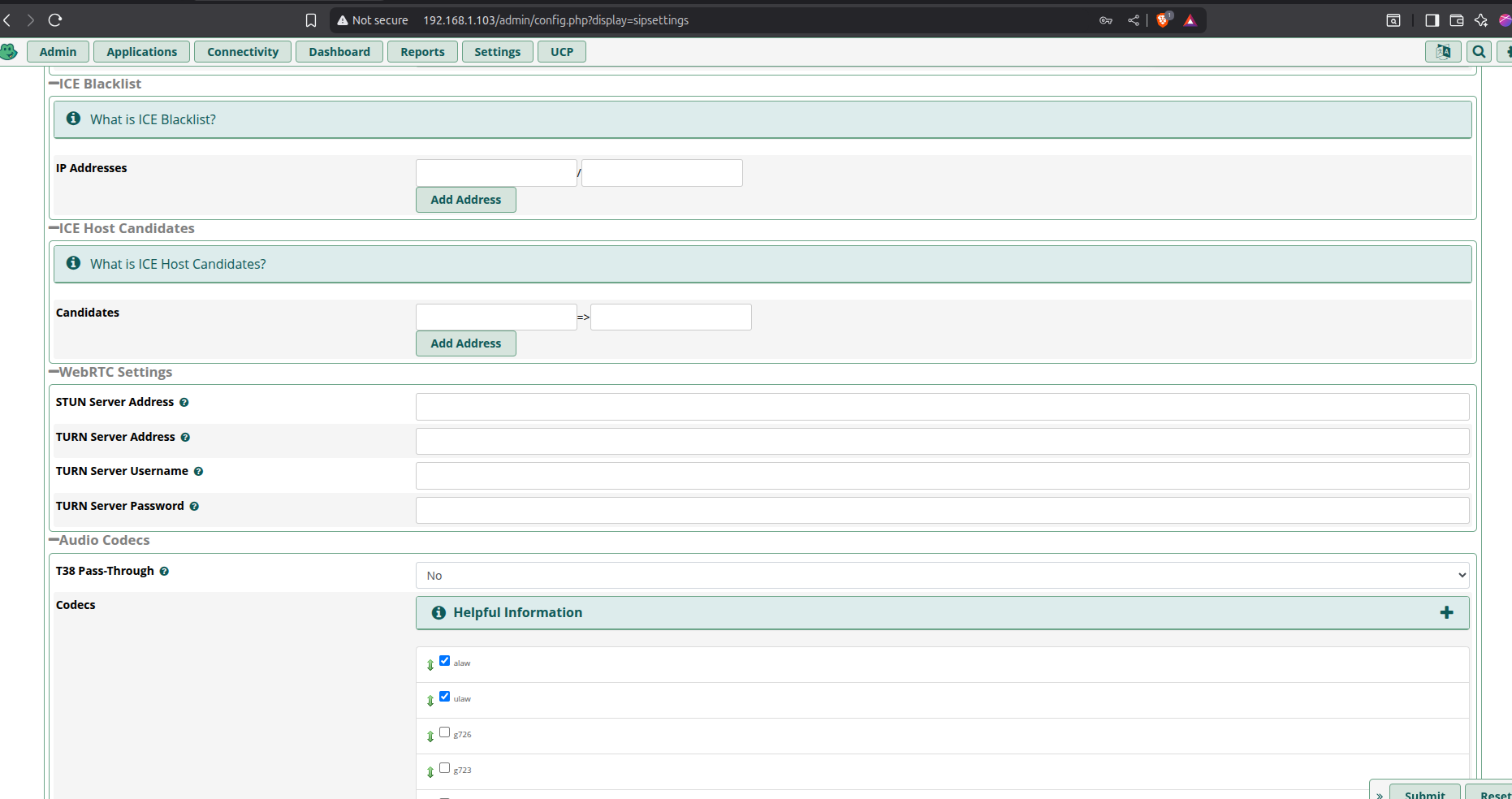

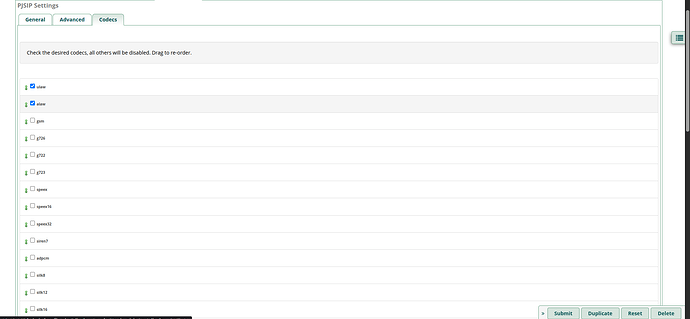

Only allowed alaw and ulaw(in both extension phone(softphone) and in the freepbx), reloaded everyhting.
Still outbound calls reply with: “All circuits are busy”.
Current log(FreePBX 17):
[2025-10-17 19:41:32] VERBOSE[14142] res_pjsip_logger.c: <--- Received SIP request (1802 bytes) from UDP:192.168.1.101:5060 --->
3 INVITE sip:[email protected] SIP/2.0
4 Via: SIP/2.0/UDP 192.168.1.101:5060;branch=z9hG4bK.ABPdgY9og;rport
5 From: <sip:[email protected]>;tag=XLpNRKnnq
6 To: sip:[email protected]
7 CSeq: 20 INVITE
8 Call-ID: Khm3rnm7vh
9 Max-Forwards: 70
10 Supported: replaces, outbound, gruu, path, record-aware
11 Allow: INVITE, ACK, CANCEL, OPTIONS, BYE, REFER, NOTIFY, MESSAGE, SUBSCRIBE, INFO, PRACK, UPDATE
12 Content-Type: application/sdp
13 Content-Length: 1096
14 Contact: <sip:[email protected];transport=udp>;expires=599;+org.linphone.specs="conference/2.0,ephemeral/1.1,groupchat/1.2,lime"
15 User-Agent: Linphone-Desktop/5.3.1 (pc-Predator-PH315-53) ubuntu/25.04 Qt/5.15.2 LinphoneSDK/5.4.46-2-gbc9e72929
16
17 v=0
18 o=5000 1578 2513 IN IP4 192.168.1.101
19 s=Talk
20 c=IN IP4 192.168.1.101
21 t=0 0
22 a=ice-pwd:13395d8fddf08506eb75d6d6
23 a=ice-ufrag:77c24a92
24 a=rtcp-xr:rcvr-rtt=all:10000 stat-summary=loss,dup,jitt,TTL voip-metrics
25 a=group:BUNDLE as
26 a=record:off
27 m=audio 45695 RTP/AVPF 0 8
28 c=IN IP4 117.216.84.179
29 a=rtcp-mux
30 a=mid:as
31 a=extmap:1 urn:ietf:params:rtp-hdrext:sdes:mid
32 a=rtcp:45955
33 a=candidate:1 1 UDP 2130706303 10.10.10.223 45695 typ host
34 a=candidate:1 2 UDP 2130706302 10.10.10.223 45955 typ host
35 a=candidate:2 1 UDP 2130706303 192.168.1.101 45695 typ host
36 a=candidate:2 2 UDP 2130706302 192.168.1.101 45955 typ host
37 a=candidate:3 1 UDP 2130706303 172.19.0.1 45695 typ host
38 a=candidate:3 2 UDP 2130706302 172.19.0.1 45955 typ host
39 a=candidate:4 1 UDP 2130706303 172.17.0.1 45695 typ host
40 a=candidate:4 2 UDP 2130706302 172.17.0.1 45955 typ host
41 a=candidate:5 1 UDP 1694498687 117.216.84.179 45695 typ srflx raddr 10.10.10.223 rport 45695
42 a=candidate:5 2 UDP 1694498686 117.216.84.179 45955 typ srflx raddr 10.10.10.223 rport 45955
43 a=rtcp-fb:* trr-int 1000
44 a=rtcp-fb:* ccm tmmbr
45
46 [2025-10-17 19:41:32] VERBOSE[14143] res_pjsip_logger.c: <--- Transmitting SIP response (465 bytes) to UDP:192.168.1.101:5060 --->
47 SIP/2.0 401 Unauthorized
48 Via: SIP/2.0/UDP 192.168.1.101:5060;rport=5060;received=192.168.1.101;branch=z9hG4bK.ABPdgY9og
49 Call-ID: Khm3rnm7vh
50 From: <sip:[email protected]>;tag=XLpNRKnnq
51 To: <sip:[email protected]>;tag=z9hG4bK.ABPdgY9og
52 CSeq: 20 INVITE
53 WWW-Authenticate: Digest realm="asterisk",nonce="1760726492/0adb130a63489750609cfeccfde4434f",opaque="2ad33d5c73aab316",algorithm=MD5,qop="auth"
54 Server: FPBX-17.0.21.2(22.6.0)
55 Content-Length: 0
56
57
58 [2025-10-17 19:41:32] VERBOSE[14142] res_pjsip_logger.c: <--- Received SIP request (402 bytes) from UDP:192.168.1.101:5060 --->
59 ACK sip:[email protected] SIP/2.0
60 Via: SIP/2.0/UDP 192.168.1.101:5060;branch=z9hG4bK.ABPdgY9og;rport
61 Call-ID: Khm3rnm7vh
62 From: <sip:[email protected]>;tag=XLpNRKnnq
63 To: <sip:[email protected]>;tag=z9hG4bK.ABPdgY9og
64 Contact: <sip:[email protected];transport=udp>;expires=599;+org.linphone.specs="conference/2.0,ephemeral/1.1,groupchat/1.2,lime"
65 Max-Forwards: 70
66 CSeq: 20 ACK
67
68
69 [2025-10-17 19:41:32] VERBOSE[14142] res_pjsip_logger.c: <--- Received SIP request (2087 bytes) from UDP:192.168.1.101:5060 --->
70 INVITE sip:[email protected] SIP/2.0
71 Via: SIP/2.0/UDP 192.168.1.101:5060;branch=z9hG4bK.JAQJ7iijc;rport
72 From: <sip:[email protected]>;tag=XLpNRKnnq
73 To: sip:[email protected]
74 CSeq: 21 INVITE
75 Call-ID: Khm3rnm7vh
76 Max-Forwards: 70
77 Supported: replaces, outbound, gruu, path, record-aware
78 Allow: INVITE, ACK, CANCEL, OPTIONS, BYE, REFER, NOTIFY, MESSAGE, SUBSCRIBE, INFO, PRACK, UPDATE
79 Content-Type: application/sdp
80 Content-Length: 1096
81 Contact: <sip:[email protected];transport=udp>;expires=599;+org.linphone.specs="conference/2.0,ephemeral/1.1,groupchat/1.2,lime"
82 User-Agent: Linphone-Desktop/5.3.1 (pc-Predator-PH315-53) ubuntu/25.04 Qt/5.15.2 LinphoneSDK/5.4.46-2-gbc9e72929
83 Authorization: Digest realm="asterisk", nonce="1760726492/0adb130a63489750609cfeccfde4434f", algorithm=MD5, opaque="2ad33d5c73aab316", username="5000", uri="sip:[email protected]", response="e429b06e6fe55dca2560e287a4e51006", cnonce="WOzFvK4KOrDf1AXd", nc=00000001, qop=auth
84
85 v=0
86 o=5000 1578 2513 IN IP4 192.168.1.101
87 s=Talk
88 c=IN IP4 192.168.1.101
89 t=0 0
90 a=ice-pwd:13395d8fddf08506eb75d6d6
91 a=ice-ufrag:77c24a92
92 a=rtcp-xr:rcvr-rtt=all:10000 stat-summary=loss,dup,jitt,TTL voip-metrics
93 a=group:BUNDLE as
94 a=record:off
95 m=audio 45695 RTP/AVPF 0 8
96 c=IN IP4 117.216.84.179
97 a=rtcp-mux
98 a=mid:as
99 a=extmap:1 urn:ietf:params:rtp-hdrext:sdes:mid
100 a=rtcp:45955
101 a=candidate:1 1 UDP 2130706303 10.10.10.223 45695 typ host
102 a=candidate:1 2 UDP 2130706302 10.10.10.223 45955 typ host
103 a=candidate:2 1 UDP 2130706303 192.168.1.101 45695 typ host
104 a=candidate:2 2 UDP 2130706302 192.168.1.101 45955 typ host
105 a=candidate:3 1 UDP 2130706303 172.19.0.1 45695 typ host
106 a=candidate:3 2 UDP 2130706302 172.19.0.1 45955 typ host
107 a=candidate:4 1 UDP 2130706303 172.17.0.1 45695 typ host
108 a=candidate:4 2 UDP 2130706302 172.17.0.1 45955 typ host
109 a=candidate:5 1 UDP 1694498687 117.216.84.179 45695 typ srflx raddr 10.10.10.223 rport 45695
110 a=candidate:5 2 UDP 1694498686 117.216.84.179 45955 typ srflx raddr 10.10.10.223 rport 45955
111 a=rtcp-fb:* trr-int 1000
112 a=rtcp-fb:* ccm tmmbr
113
114 [2025-10-17 19:41:32] VERBOSE[14143] res_pjsip_logger.c: <--- Transmitting SIP response (291 bytes) to UDP:192.168.1.101:5060 --->
115 SIP/2.0 100 Trying
116 Via: SIP/2.0/UDP 192.168.1.101:5060;rport=5060;received=192.168.1.101;branch=z9hG4bK.JAQJ7iijc
117 Call-ID: Khm3rnm7vh
118 From: <sip:[email protected]>;tag=XLpNRKnnq
119 To: <sip:[email protected]>
120 CSeq: 21 INVITE
121 Server: FPBX-17.0.21.2(22.6.0)
122 Content-Length: 0
123
124
125 [2025-10-17 19:41:32] ERROR[14143] res_pjsip_session.c: 5000: Couldn't negotiate stream 0:audio-0:audio:sendrecv (nothing)
126 [2025-10-17 19:41:32] VERBOSE[14143] res_pjsip_logger.c: <--- Transmitting SIP response (345 bytes) to UDP:192.168.1.101:5060 --->
127 SIP/2.0 488 Not Acceptable Here
128 Via: SIP/2.0/UDP 192.168.1.101:5060;rport=5060;received=192.168.1.101;branch=z9hG4bK.JAQJ7iijc
129 Call-ID: Khm3rnm7vh
130 From: <sip:[email protected]>;tag=XLpNRKnnq
131 To: <sip:[email protected]>;tag=b4b1da2e-7d27-4f68-9023-b00e8183bb66
132 CSeq: 21 INVITE
133 Server: FPBX-17.0.21.2(22.6.0)
134 Content-Length: 0
135
136
137 [2025-10-17 19:41:32] VERBOSE[14142] res_pjsip_logger.c: <--- Received SIP request (421 bytes) from UDP:192.168.1.101:5060 --->
138 ACK sip:[email protected] SIP/2.0
139 Via: SIP/2.0/UDP 192.168.1.101:5060;branch=z9hG4bK.JAQJ7iijc;rport
140 Call-ID: Khm3rnm7vh
141 From: <sip:[email protected]>;tag=XLpNRKnnq
142 To: <sip:[email protected]>;tag=b4b1da2e-7d27-4f68-9023-b00e8183bb66
143 Contact: <sip:[email protected];transport=udp>;expires=599;+org.linphone.specs="conference/2.0,ephemeral/1.1,groupchat/1.2,lime"
144 Max-Forwards: 70
145 CSeq: 21 ACK
146
147
148 [2025-10-17 19:41:33] VERBOSE[14142] res_pjsip_logger.c: <--- Received SIP request (1801 bytes) from UDP:192.168.1.101:5060 --->
149 INVITE sip:[email protected] SIP/2.0
150 Via: SIP/2.0/UDP 192.168.1.101:5060;branch=z9hG4bK.a4ppxS-B8;rport
151 From: <sip:[email protected]>;tag=C0LhQEbIR
152 To: sip:[email protected]
153 CSeq: 20 INVITE
154 Call-ID: suN-q5Ts6e
155 Max-Forwards: 70
156 Supported: replaces, outbound, gruu, path, record-aware
157 Allow: INVITE, ACK, CANCEL, OPTIONS, BYE, REFER, NOTIFY, MESSAGE, SUBSCRIBE, INFO, PRACK, UPDATE
158 Content-Type: application/sdp
159 Content-Length: 1095
160 Contact: <sip:[email protected];transport=udp>;expires=599;+org.linphone.specs="conference/2.0,ephemeral/1.1,groupchat/1.2,lime"
161 User-Agent: Linphone-Desktop/5.3.1 (pc-Predator-PH315-53) ubuntu/25.04 Qt/5.15.2 LinphoneSDK/5.4.46-2-gbc9e72929
162
163 v=0
164 o=5000 1578 2515 IN IP4 192.168.1.101
165 s=Talk
166 c=IN IP4 192.168.1.101
167 t=0 0
168 a=ice-pwd:5e360b379de2ecc1b7ecf7b2
169 a=ice-ufrag:a5c454f6
170 a=rtcp-xr:rcvr-rtt=all:10000 stat-summary=loss,dup,jitt,TTL voip-metrics
171 a=group:BUNDLE as
172 a=record:off
173 m=audio 34269 RTP/AVP 0 8
174 c=IN IP4 117.216.84.179
175 a=rtcp-mux
176 a=mid:as
177 a=extmap:1 urn:ietf:params:rtp-hdrext:sdes:mid
178 a=rtcp:59976
179 a=candidate:1 1 UDP 2130706303 10.10.10.223 34269 typ host
180 a=candidate:1 2 UDP 2130706302 10.10.10.223 59976 typ host
181 a=candidate:2 1 UDP 2130706303 192.168.1.101 34269 typ host
182 a=candidate:2 2 UDP 2130706302 192.168.1.101 59976 typ host
183 a=candidate:3 1 UDP 2130706303 172.19.0.1 34269 typ host
184 a=candidate:3 2 UDP 2130706302 172.19.0.1 59976 typ host
185 a=candidate:4 1 UDP 2130706303 172.17.0.1 34269 typ host
186 a=candidate:4 2 UDP 2130706302 172.17.0.1 59976 typ host
187 a=candidate:5 1 UDP 1694498687 117.216.84.179 34269 typ srflx raddr 10.10.10.223 rport 34269
188 a=candidate:5 2 UDP 1694498686 117.216.84.179 59976 typ srflx raddr 10.10.10.223 rport 59976
189 a=rtcp-fb:* trr-int 1000
190 a=rtcp-fb:* ccm tmmbr
191
192 [2025-10-17 19:41:33] VERBOSE[14143] res_pjsip_logger.c: <--- Transmitting SIP response (465 bytes) to UDP:192.168.1.101:5060 --->
193 SIP/2.0 401 Unauthorized
194 Via: SIP/2.0/UDP 192.168.1.101:5060;rport=5060;received=192.168.1.101;branch=z9hG4bK.a4ppxS-B8
195 Call-ID: suN-q5Ts6e
196 From: <sip:[email protected]>;tag=C0LhQEbIR
197 To: <sip:[email protected]>;tag=z9hG4bK.a4ppxS-B8
198 CSeq: 20 INVITE
199 WWW-Authenticate: Digest realm="asterisk",nonce="1760726493/5124046b49863321952a69dfd8cb3576",opaque="527d70af1ca4121e",algorithm=MD5,qop="auth"
200 Server: FPBX-17.0.21.2(22.6.0)
201 Content-Length: 0
202
203
204 [2025-10-17 19:41:33] VERBOSE[14142] res_pjsip_logger.c: <--- Received SIP request (402 bytes) from UDP:192.168.1.101:5060 --->
205 ACK sip:[email protected] SIP/2.0
206 Via: SIP/2.0/UDP 192.168.1.101:5060;branch=z9hG4bK.a4ppxS-B8;rport
207 Call-ID: suN-q5Ts6e
208 From: <sip:[email protected]>;tag=C0LhQEbIR
209 To: <sip:[email protected]>;tag=z9hG4bK.a4ppxS-B8
210 Contact: <sip:[email protected];transport=udp>;expires=599;+org.linphone.specs="conference/2.0,ephemeral/1.1,groupchat/1.2,lime"
211 Max-Forwards: 70
212 CSeq: 20 ACK
213
214
215 [2025-10-17 19:41:33] VERBOSE[14142] res_pjsip_logger.c: <--- Received SIP request (2086 bytes) from UDP:192.168.1.101:5060 --->
216 INVITE sip:[email protected] SIP/2.0
217 Via: SIP/2.0/UDP 192.168.1.101:5060;branch=z9hG4bK.v7SS8gokP;rport
218 From: <sip:[email protected]>;tag=C0LhQEbIR
219 To: sip:[email protected]
220 CSeq: 21 INVITE
221 Call-ID: suN-q5Ts6e
222 Max-Forwards: 70
223 Supported: replaces, outbound, gruu, path, record-aware
224 Allow: INVITE, ACK, CANCEL, OPTIONS, BYE, REFER, NOTIFY, MESSAGE, SUBSCRIBE, INFO, PRACK, UPDATE
225 Content-Type: application/sdp
226 Content-Length: 1095
227 Contact: <sip:[email protected];transport=udp>;expires=599;+org.linphone.specs="conference/2.0,ephemeral/1.1,groupchat/1.2,lime"
228 User-Agent: Linphone-Desktop/5.3.1 (pc-Predator-PH315-53) ubuntu/25.04 Qt/5.15.2 LinphoneSDK/5.4.46-2-gbc9e72929
229 Authorization: Digest realm="asterisk", nonce="1760726493/5124046b49863321952a69dfd8cb3576", algorithm=MD5, opaque="527d70af1ca4121e", username="5000", uri="sip:[email protected]", response="20d822899fa2da0089c5c2cc547c3661", cnonce="-tZC0msCcuGmtlcw", nc=00000001, qop=auth
230
231 v=0
232 o=5000 1578 2515 IN IP4 192.168.1.101
233 s=Talk
234 c=IN IP4 192.168.1.101
235 t=0 0
236 a=ice-pwd:5e360b379de2ecc1b7ecf7b2
237 a=ice-ufrag:a5c454f6
238 a=rtcp-xr:rcvr-rtt=all:10000 stat-summary=loss,dup,jitt,TTL voip-metrics
239 a=group:BUNDLE as
240 a=record:off
241 m=audio 34269 RTP/AVP 0 8
242 c=IN IP4 117.216.84.179
243 a=rtcp-mux
244 a=mid:as
245 a=extmap:1 urn:ietf:params:rtp-hdrext:sdes:mid
246 a=rtcp:59976
247 a=candidate:1 1 UDP 2130706303 10.10.10.223 34269 typ host
248 a=candidate:1 2 UDP 2130706302 10.10.10.223 59976 typ host
249 a=candidate:2 1 UDP 2130706303 192.168.1.101 34269 typ host
250 a=candidate:2 2 UDP 2130706302 192.168.1.101 59976 typ host
251 a=candidate:3 1 UDP 2130706303 172.19.0.1 34269 typ host
252 a=candidate:3 2 UDP 2130706302 172.19.0.1 59976 typ host
253 a=candidate:4 1 UDP 2130706303 172.17.0.1 34269 typ host
254 a=candidate:4 2 UDP 2130706302 172.17.0.1 59976 typ host
255 a=candidate:5 1 UDP 1694498687 117.216.84.179 34269 typ srflx raddr 10.10.10.223 rport 34269
256 a=candidate:5 2 UDP 1694498686 117.216.84.179 59976 typ srflx raddr 10.10.10.223 rport 59976
257 a=rtcp-fb:* trr-int 1000
258 a=rtcp-fb:* ccm tmmbr
259
260 [2025-10-17 19:41:33] VERBOSE[14143] res_pjsip_logger.c: <--- Transmitting SIP response (291 bytes) to UDP:192.168.1.101:5060 --->
261 SIP/2.0 100 Trying
262 Via: SIP/2.0/UDP 192.168.1.101:5060;rport=5060;received=192.168.1.101;branch=z9hG4bK.v7SS8gokP
263 Call-ID: suN-q5Ts6e
264 From: <sip:[email protected]>;tag=C0LhQEbIR
265 To: <sip:[email protected]>
266 CSeq: 21 INVITE
267 Server: FPBX-17.0.21.2(22.6.0)
268 Content-Length: 0
269
270
271 [2025-10-17 19:41:33] ERROR[14143] res_pjsip_header_funcs.c: No headers had been previously added to this session.
272 [2025-10-17 19:41:33] VERBOSE[14143] res_pjsip_logger.c: <--- Transmitting SIP response (558 bytes) to UDP:192.168.1.101:5060 --->
273 SIP/2.0 180 Ringing
274 Via: SIP/2.0/UDP 192.168.1.101:5060;rport=5060;received=192.168.1.101;branch=z9hG4bK.v7SS8gokP
275 Call-ID: suN-q5Ts6e
276 From: <sip:[email protected]>;tag=C0LhQEbIR
277 To: <sip:[email protected]>;tag=a0eb3342-fae3-4608-b9a2-fe5a8c55efd2
278 CSeq: 21 INVITE
279 Server: FPBX-17.0.21.2(22.6.0)
280 Contact: <sip:192.168.1.103:5060>
281 Allow: OPTIONS, REGISTER, SUBSCRIBE, NOTIFY, PUBLISH, INVITE, ACK, BYE, CANCEL, UPDATE, PRACK, INFO, MESSAGE, REFER
282 P-Asserted-Identity: "CID:91XXXXXXXXXX" <sip:[email protected]>
283 Content-Length: 0
284
285
286 [2025-10-17 19:41:33] VERBOSE[14143] res_pjsip_logger.c: <--- Transmitting SIP request (1154 bytes) to UDP:10.187.10.65:5060 --->
287 INVITE sip:[email protected]:5060 SIP/2.0
288 Via: SIP/2.0/UDP 10.152.190.223:5060;rport;branch=z9hG4bKPjd4d3ef16-a413-4e95-b211-7bd07bab679c
289 From: <sip:[email protected]>;tag=faa38220-886d-40bc-bb7c-698b72a365cf
290 To: <sip:[email protected]>
291 Contact: <sip:[email protected]:5060>
292 Call-ID: 1e66d0e6-36f5-4530-8ea5-faa0beef8940
293 CSeq: 24734 INVITE
294 Allow: OPTIONS, REGISTER, SUBSCRIBE, NOTIFY, PUBLISH, INVITE, ACK, BYE, CANCEL, UPDATE, PRACK, INFO, MESSAGE, REFER
295 Supported: 100rel, timer, replaces, norefersub, histinfo
296 Session-Expires: 1800
297 Min-SE: 90
298 P-Asserted-Identity: <sip:[email protected]>
299 Max-Forwards: 70
300 User-Agent: FPBX-17.0.21.2(22.6.0)
301 Content-Type: application/sdp
302 Content-Length: 373
303
304 v=0
305 o=- 914756638 914756638 IN IP4 10.152.190.223
306 s=Asterisk
307 c=IN IP4 10.152.190.223
308 t=0 0
309 m=audio 18124 RTP/AVP 8 0 107 3 101 102
310 a=rtpmap:8 PCMA/8000
311 a=rtpmap:0 PCMU/8000
312 a=rtpmap:107 opus/48000/2
313 a=rtpmap:3 GSM/8000
314 a=rtpmap:101 telephone-event/8000
315 a=fmtp:101 0-16
316 a=rtpmap:102 telephone-event/48000
317 a=fmtp:102 0-16
318 a=ptime:20
319 a=maxptime:60
320 a=sendrecv
321
322 [2025-10-17 19:41:33] VERBOSE[14142] res_pjsip_logger.c: <--- Received SIP response (414 bytes) from UDP:10.187.10.65:5060 --->
323 SIP/2.0 100 trying -- your call is important to us
324 Via: SIP/2.0/UDP 10.152.190.223:5060;rport=5060;branch=z9hG4bKPjd4d3ef16-a413-4e95-b211-7bd07bab679c;received=10.152.190.223
325 From: <sip:[email protected]>;tag=faa38220-886d-40bc-bb7c-698b72a365cf
326 To: <sip:[email protected]>
327 Call-ID: 1e66d0e6-36f5-4530-8ea5-faa0beef8940
328 CSeq: 24734 INVITE
329 Server: BSNL-SMP
330 Content-Length: 0
331
332
333 [2025-10-17 19:41:33] VERBOSE[14142] res_pjsip_logger.c: <--- Received SIP response (531 bytes) from UDP:10.187.10.65:5060 --->
334 SIP/2.0 403 Forbidden
335 Record-Route: <sip:10.187.10.65;lr;did=a7a.6486>
336 Call-ID: 1e66d0e6-36f5-4530-8ea5-faa0beef8940
337 CSeq: 24734 INVITE
338 From: <sip:[email protected]>;tag=faa38220-886d-40bc-bb7c-698b72a365cf
339 To: <sip:[email protected]>;tag=SBC+1+7fc00a8+57fc43c
340 Via: SIP/2.0/UDP 10.152.190.223:5060;received=10.152.190.223;rport=5060;branch=z9hG4bKPjd4d3ef16-a413-4e95-b211-7bd07bab679c
341 Server: SIP/2.0
342 Organization: CDOT
343 Supported: timer
344 Content-Length: 0
345 Contact: <sip:10.187.6.12:5060>
346
347
348 [2025-10-17 19:41:33] VERBOSE[14143] res_pjsip_logger.c: <--- Transmitting SIP request (447 bytes) to UDP:10.187.10.65:5060 --->
349 ACK sip:[email protected]:5060 SIP/2.0
350 Via: SIP/2.0/UDP 10.152.190.223:5060;rport;branch=z9hG4bKPjd4d3ef16-a413-4e95-b211-7bd07bab679c
351 From: <sip:[email protected]>;tag=faa38220-886d-40bc-bb7c-698b72a365cf
352 To: <sip:[email protected]>;tag=SBC+1+7fc00a8+57fc43c
353 Call-ID: 1e66d0e6-36f5-4530-8ea5-faa0beef8940
354 CSeq: 24734 ACK
355 Max-Forwards: 70
356 User-Agent: FPBX-17.0.21.2(22.6.0)
357 Content-Length: 0
358
359
360 [2025-10-17 19:41:33] VERBOSE[14143] res_pjsip_logger.c: <--- Transmitting SIP response (796 bytes) to UDP:192.168.1.101:5060 --->
361 SIP/2.0 183 Session Progress
362 Via: SIP/2.0/UDP 192.168.1.101:5060;rport=5060;received=192.168.1.101;branch=z9hG4bK.v7SS8gokP
363 Call-ID: suN-q5Ts6e
364 From: <sip:[email protected]>;tag=C0LhQEbIR
365 To: <sip:[email protected]>;tag=a0eb3342-fae3-4608-b9a2-fe5a8c55efd2
366 CSeq: 21 INVITE
367 Server: FPBX-17.0.21.2(22.6.0)
368 Allow: OPTIONS, REGISTER, SUBSCRIBE, NOTIFY, PUBLISH, INVITE, ACK, BYE, CANCEL, UPDATE, PRACK, INFO, MESSAGE, REFER
369 Contact: <sip:192.168.1.103:5060>
370 P-Asserted-Identity: "CID:91XXXXXXXXXX" <sip:[email protected]>
371 Content-Type: application/sdp
372 Content-Length: 195
373
374 v=0
375 o=- 1578 2517 IN IP4 192.168.1.103
376 s=Asterisk
377 c=IN IP4 192.168.1.103
378 t=0 0
379 m=audio 15514 RTP/AVP 8 0
380 a=rtpmap:8 PCMA/8000
381 a=rtpmap:0 PCMU/8000
382 a=ptime:20
383 a=maxptime:140
384 a=sendrecv
385
386 [2025-10-17 19:41:34] VERBOSE[14142] res_pjsip_logger.c: <--- Received SIP request (367 bytes) from UDP:192.168.1.101:5060 --->
387 CANCEL sip:[email protected] SIP/2.0
388 Via: SIP/2.0/UDP 192.168.1.101:5060;branch=z9hG4bK.v7SS8gokP;rport
389 Call-ID: suN-q5Ts6e
390 From: <sip:[email protected]>;tag=C0LhQEbIR
391 To: sip:[email protected]
392 Max-Forwards: 70
393 CSeq: 21 CANCEL
394 User-Agent: Linphone-Desktop/5.3.1 (pc-Predator-PH315-53) ubuntu/25.04 Qt/5.15.2 LinphoneSDK/5.4.46-2-gbc9e72929
395
396
397 [2025-10-17 19:41:34] VERBOSE[14143] res_pjsip_logger.c: <--- Transmitting SIP response (328 bytes) to UDP:192.168.1.101:5060 --->
398 SIP/2.0 200 OK
399 Via: SIP/2.0/UDP 192.168.1.101:5060;rport=5060;received=192.168.1.101;branch=z9hG4bK.v7SS8gokP
400 Call-ID: suN-q5Ts6e
401 From: <sip:[email protected]>;tag=C0LhQEbIR
402 To: <sip:[email protected]>;tag=a0eb3342-fae3-4608-b9a2-fe5a8c55efd2
403 CSeq: 21 CANCEL
404 Server: FPBX-17.0.21.2(22.6.0)
405 Content-Length: 0
406
407
408 [2025-10-17 19:41:34] VERBOSE[14143] res_pjsip_logger.c: <--- Transmitting SIP response (534 bytes) to UDP:192.168.1.101:5060 --->
409 SIP/2.0 487 Request Terminated
410 Via: SIP/2.0/UDP 192.168.1.101:5060;rport=5060;received=192.168.1.101;branch=z9hG4bK.v7SS8gokP
411 Call-ID: suN-q5Ts6e
412 From: <sip:[email protected]>;tag=C0LhQEbIR
413 To: <sip:[email protected]>;tag=a0eb3342-fae3-4608-b9a2-fe5a8c55efd2
414 CSeq: 21 INVITE
415 Server: FPBX-17.0.21.2(22.6.0)
416 Allow: OPTIONS, REGISTER, SUBSCRIBE, NOTIFY, PUBLISH, INVITE, ACK, BYE, CANCEL, UPDATE, PRACK, INFO, MESSAGE, REFER
417 P-Asserted-Identity: "CID:91XXXXXXXXXX" <sip:[email protected]>
418 Content-Length: 0
419
420
421 [2025-10-17 19:41:35] VERBOSE[14142] res_pjsip_logger.c: <--- Transmitting SIP response (534 bytes) to UDP:192.168.1.101:5060 --->
422 SIP/2.0 487 Request Terminated
423 Via: SIP/2.0/UDP 192.168.1.101:5060;rport=5060;received=192.168.1.101;branch=z9hG4bK.v7SS8gokP
424 Call-ID: suN-q5Ts6e
425 From: <sip:[email protected]>;tag=C0LhQEbIR
426 To: <sip:[email protected]>;tag=a0eb3342-fae3-4608-b9a2-fe5a8c55efd2
427 CSeq: 21 INVITE
428 Server: FPBX-17.0.21.2(22.6.0)
429 Allow: OPTIONS, REGISTER, SUBSCRIBE, NOTIFY, PUBLISH, INVITE, ACK, BYE, CANCEL, UPDATE, PRACK, INFO, MESSAGE, REFER
430 P-Asserted-Identity: "CID:91XXXXXXXXXX" <sip:[email protected]>
431 Content-Length: 0
432
433
434 [2025-10-17 19:41:36] VERBOSE[14142] res_pjsip_logger.c: <--- Received SIP request (421 bytes) from UDP:192.168.1.101:5060 --->
435 ACK sip:[email protected] SIP/2.0
436 Via: SIP/2.0/UDP 192.168.1.101:5060;branch=z9hG4bK.v7SS8gokP;rport
437 Call-ID: suN-q5Ts6e
438 From: <sip:[email protected]>;tag=C0LhQEbIR
439 To: <sip:[email protected]>;tag=a0eb3342-fae3-4608-b9a2-fe5a8c55efd2
440 Contact: <sip:[email protected];transport=udp>;expires=599;+org.linphone.specs="conference/2.0,ephemeral/1.1,groupchat/1.2,lime"
441 Max-Forwards: 70
442 CSeq: 21 ACK
443
444
445 [2025-10-17 19:41:36] VERBOSE[14142] res_pjsip_logger.c: <--- Received SIP request (421 bytes) from UDP:192.168.1.101:5060 --->
446 ACK sip:[email protected] SIP/2.0
447 Via: SIP/2.0/UDP 192.168.1.101:5060;branch=z9hG4bK.v7SS8gokP;rport
448 Call-ID: suN-q5Ts6e
449 From: <sip:[email protected]>;tag=C0LhQEbIR
450 To: <sip:[email protected]>;tag=a0eb3342-fae3-4608-b9a2-fe5a8c55efd2
451 Contact: <sip:[email protected];transport=udp>;expires=599;+org.linphone.specs="conference/2.0,ephemeral/1.1,groupchat/1.2,lime"
452 Max-Forwards: 70
453 CSeq: 21 ACK
ALG is correctly disabled.
Please turn off Opus and GSM codecs for the trunk and also set Send RPID/PAI to No.
After Submit and Apply Config, turn pjsip logger back on and post a new log.
Still being rejected by the provider. Time to reach out and ask them why they kept sending 403 Forbidden’s on your outbound calls.
Sure, but the OP has a working chan_sip example, so I’m pretty sure that if we match that, it will fix the problem.
And if the provider can give a reason as to why it is being rejected we can also use that to figure out what is happening.
There’s nothing like a “provider reply”. They don’t know that much technical stuff, all they do is can give account credentials, change plans, etc.
I can provide any logs for you.
So, you got rid of the extra codecs and the PAI, but still getting a 403? If so, paste a new trace and we’ll try to spot another problem.
Then you should change providers. If your current provider can offer you no real support, you shouldn’t be with them.
The situation here is different, this is a normal sip connection offered(no charges, its free) to customers who have internet connection of BSNL.
I reached to a person who knows freepbx and BSNL, and he replied that BSNL dont work with pjsip.
But pjsip option is not there in freepbx17. What to do(apart from changing providers).
Fact: Here for just 200mbps plan, its costs only about $14, that too with free sip connection.
Not sure how that is possible. SIP is SIP and that is all PJSIP is, a SIP driver. It also is the driver for other SIP projects and applications. BSNL would have no clue it’s chan_pjsip in Asterisk.
So that person is wrong.
1 Like
bro noel i am from telangana, and i am also trying since 25 days to get it working. at last found your post on broadband forum and tried chan sip. wow incoming calls work… but cant make outgoing calls.. can you kindly share your email id etc so that we can chat please.
If I understand correctly, you have a fully functional chan_sip setup, for which you posted a successful outbound trace.
Your last pjsip trace had two obvious differences (codecs and PAI) and I suggested that you correct them. Please post a current trace so we can see the responses and whether any differences remain.
Can you do outgoing calls with pjsip?

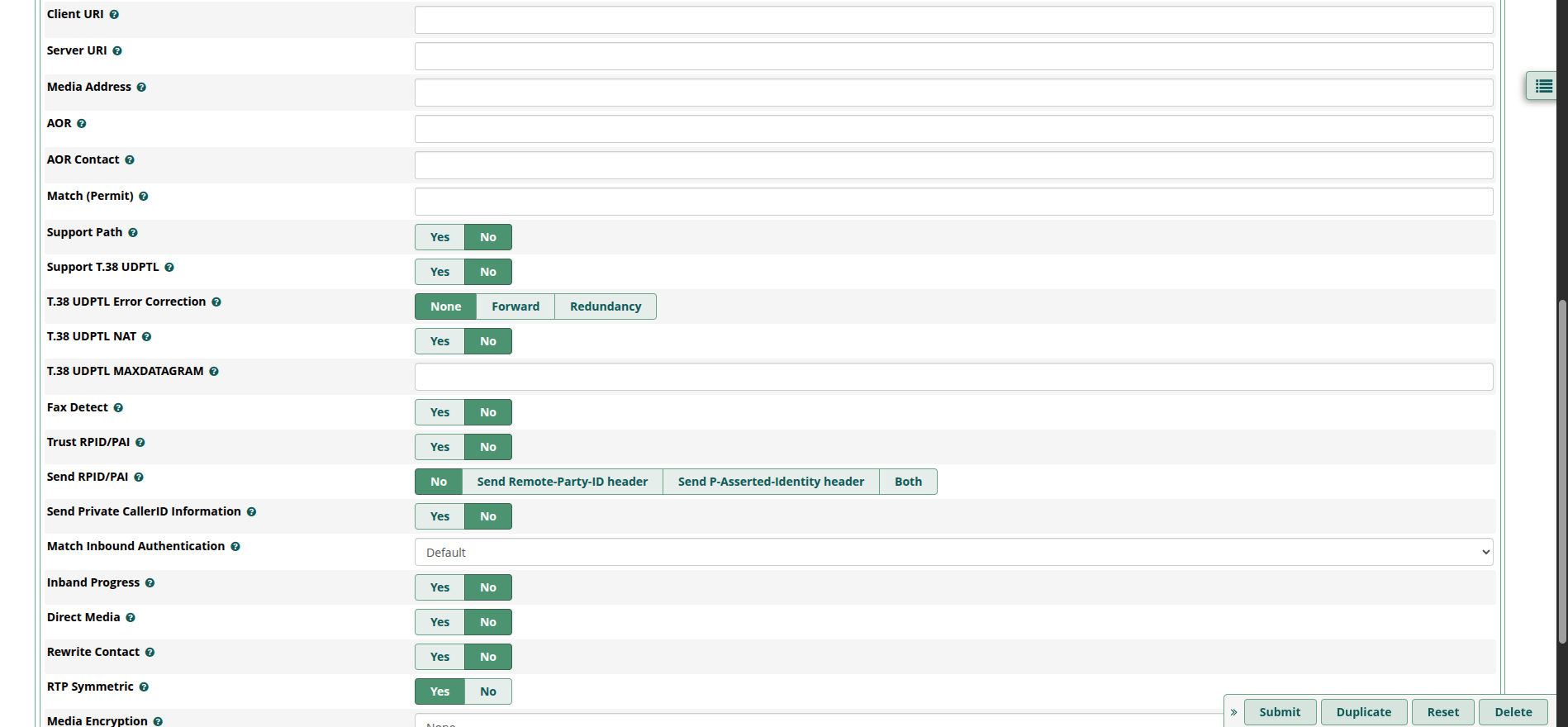

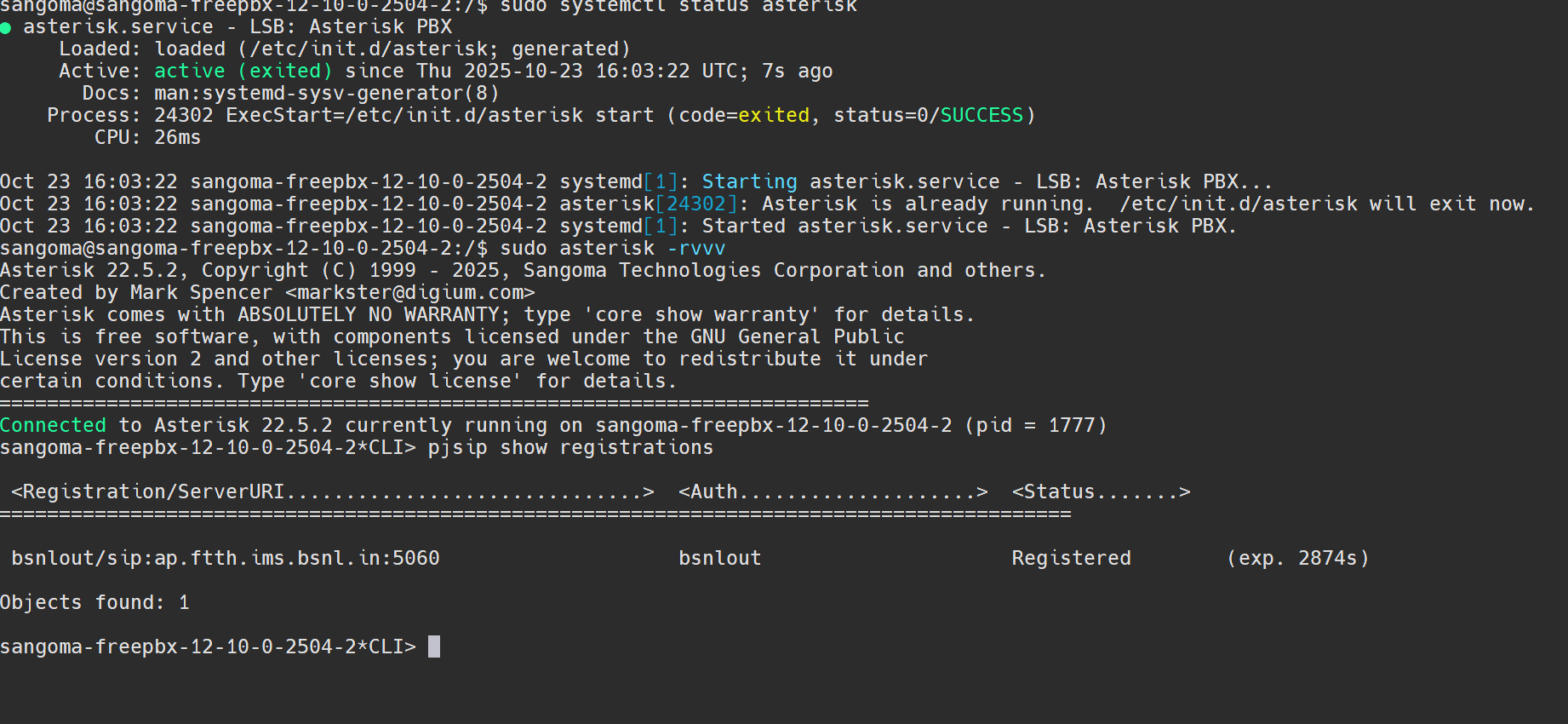

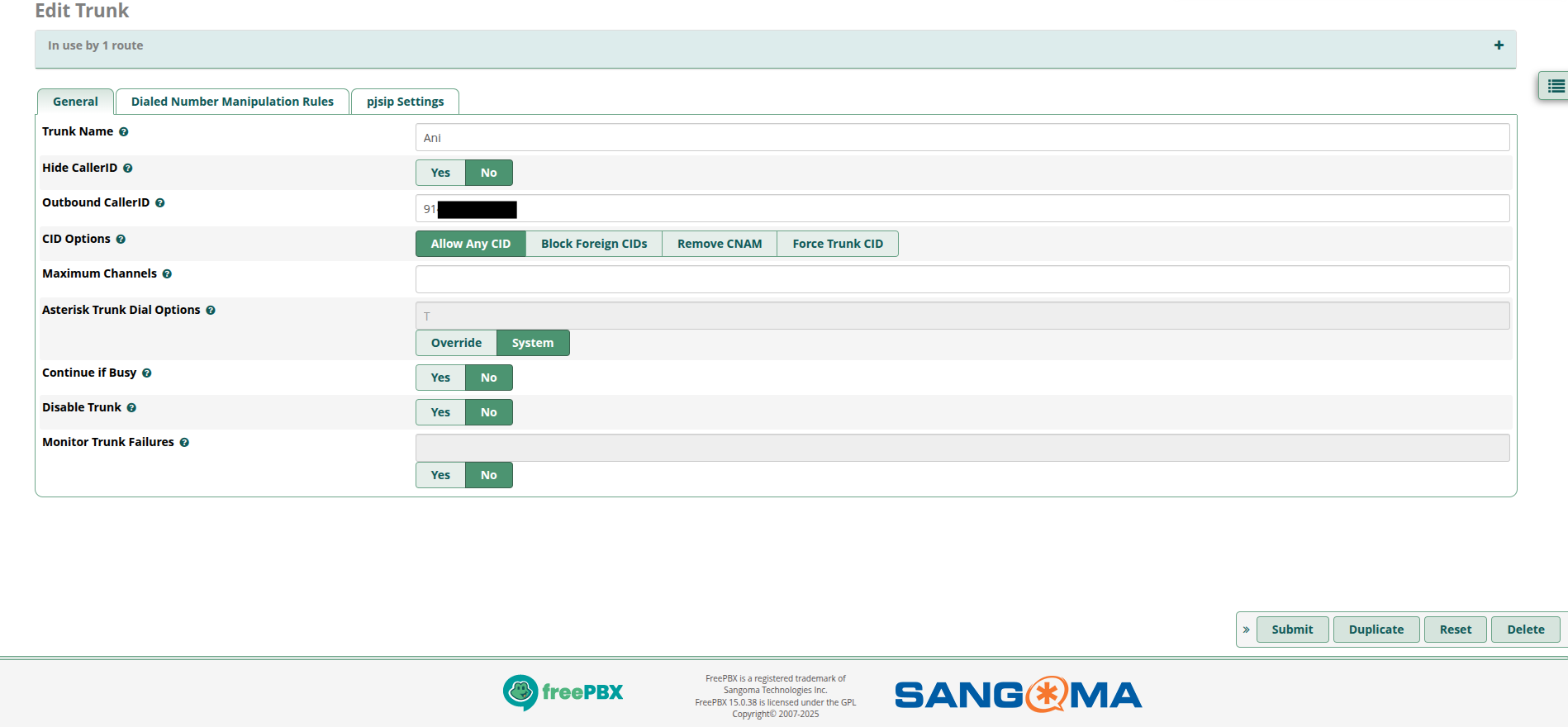

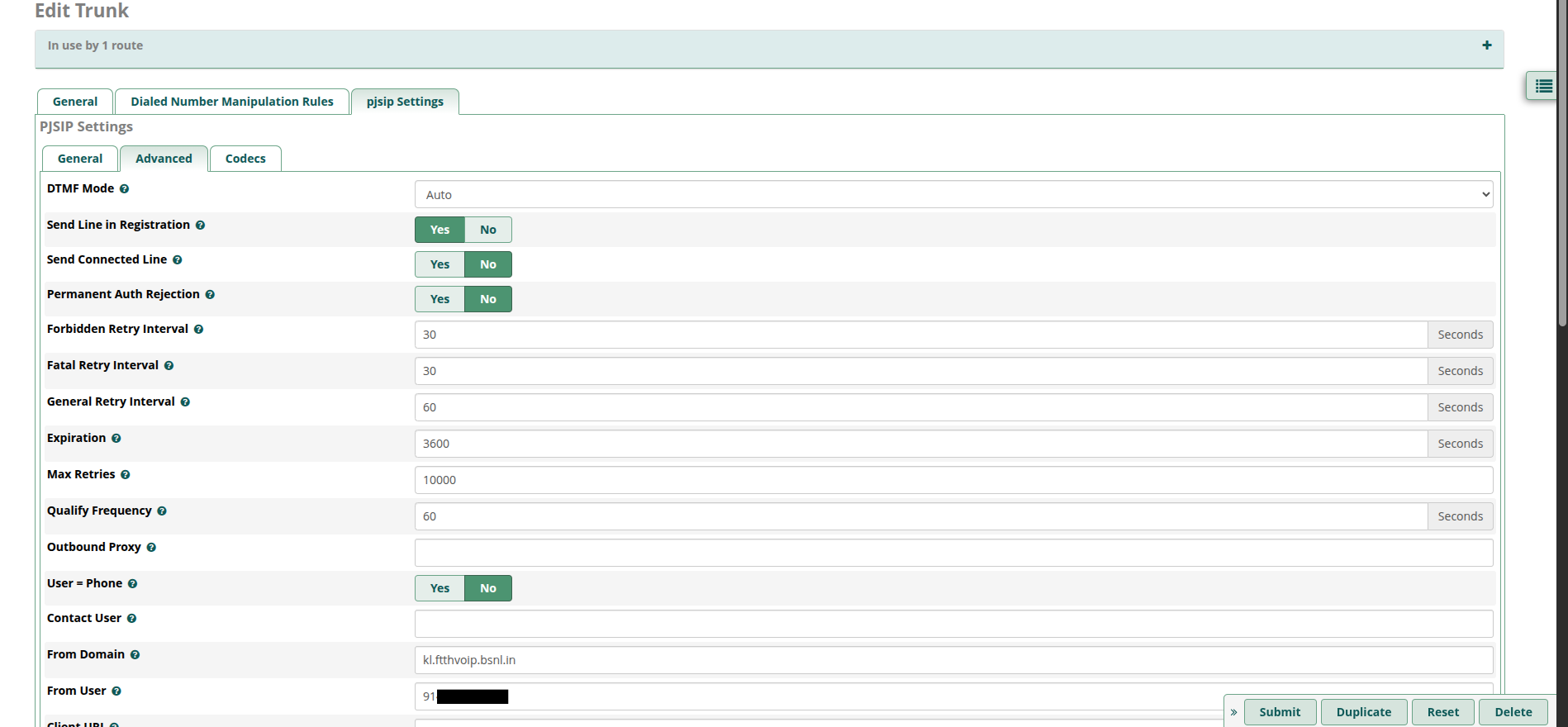

Screenshots(Black mask is the username/phone number of sip acc).
Also attached and recent logs during outgoing call.
Your provider is still rejecting the call.
@phanitheja
Can you do outgoing calls with pjsip?
yes finally cracked both incoming and outgoing calls.
