User Manager: LDAP connects but not LDAPs

FreePBX Applications / Modules
1

PBX Version: 14.0.17
PBX Distro: 12.7.8-2306-1.sng7
Asterisk Version: 16.30.0
User Management: 14.0.18.7

I’m able to connect User Management to my Active Directory servers (Windows 2022 Standard) using LDAP but not LDAPs.

I tried changing the port from 389 to 636 hit submit, went back to the directory configuration page and the status changed from “Connected” to “Can’t contact LDAP server”
I tried changing the secure connection to SSL
same results,
tried Start TLS, same.

I have been converting other systems to switch from LDAP to LDAPs to the same AD servers and those are working correctly, I just can’t seem to get freepbx to successfully connect.

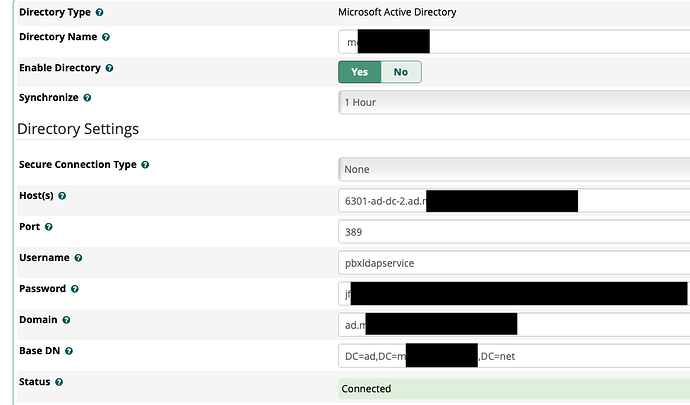

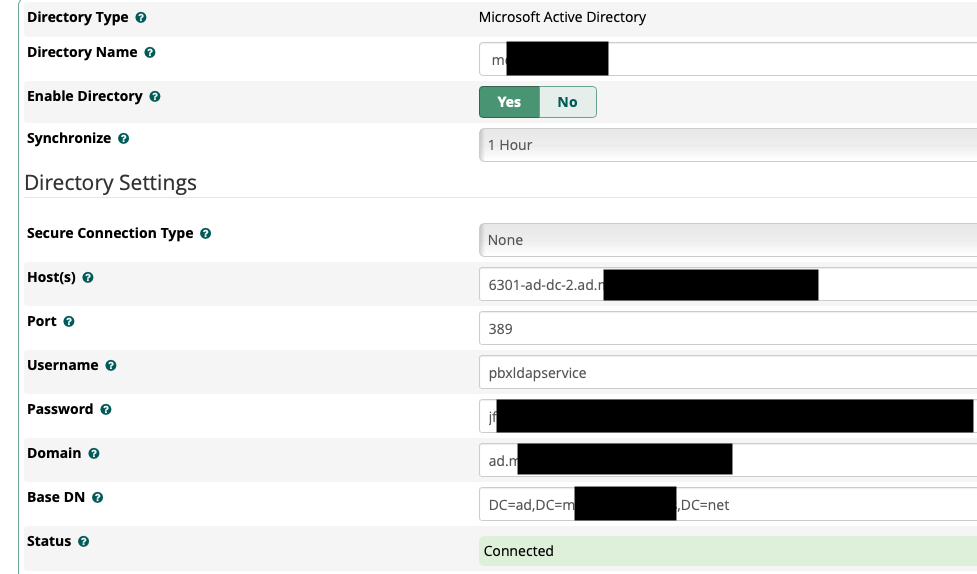

freepbx ldap settings
freepbx ldap settings977×574 36.3 KB

2

Ended I up getting it working. Needed to ad the CA cert from AD into the freepbx machine.

1. Confirm Active Directory is Serving LDAPS

From the FreePBX shell:

openssl s_client -connect dc1.ad.example.net:636 -servername dc1.ad.example.net -brief

■ If you see ‘CONNECTION ESTABLISHED’, LDAPS is active.

■■ If you see ‘verify error:num=20: unable to get local issuer certificate’, the FreePBX server does not

yet trust your AD CA.

2. Export the AD Root CA Certificate

On any domain-joined Windows system:

  1. Run certmgr.msc

  2. Navigate to Trusted Root Certification Authorities → Certificates

  3. Locate your domain CA (e.g. Corp-Root-CA)

  4. Right-click → All Tasks → Export

  5. Choose Base-64 encoded X.509 (.CER)

  6. Save as RootCA.cer

3. Copy the CA Certificate to the FreePBX Server

scp RootCA.cer root@freepbx:/tmp/

4. Add the CA to the System Trust Store

For FreePBX Distro / RHEL / CentOS / AlmaLinux:

sudo cp /tmp/RootCA.cer /etc/pki/ca-trust/source/anchors/

sudo update-ca-trust extract

For Debian / Ubuntu:

sudo cp /tmp/RootCA.cer /usr/local/share/ca-certificates/

sudo update-ca-certificates

5. Update the OpenLDAP Configuration

Edit /etc/openldap/ldap.conf and set:

sudo sed -i ‘s|^TLS_CACERTDIR.*|#TLS_CACERTDIR /etc/openldap/cacerts|’ /etc/openldap/ldap.conf

echo ‘TLS_CACERT /etc/pki/tls/certs/ca-bundle.crt’ | sudo tee -a /etc/openldap/ldap.conf

echo ‘TLS_REQCERT demand’ | sudo tee -a /etc/openldap/ldap.conf

Use /etc/ssl/certs/ca-certificates.crt on Debian/Ubuntu.

6. Verify LDAPS and Certificate Trustopenssl s_client -connect dc1.ad.example.net:636 -servername dc1.ad.example.net -brief

■ Expect: Verify return code: 0 (ok)

Then test LDAP bind:

ldapwhoami -H ldaps://dc1.ad.example.net:636 -D “[email protected]” -W -x

Result: Success (0) confirms working LDAPS.

7. Update the FreePBX Directory Settings

In FreePBX → Admin → User Management → Directories → [Your AD Directory]:

  • Secure Connection Type: SSL

  • Host(s): FQDN of your Domain Controller

  • Port: 636

  • Username / Password / Domain / Base DN: unchanged

Then Submit → Apply Config.

Note: Older FreePBX versions list ‘None’, ‘Start TLS’, ‘SSL’. ‘SSL’ = LDAPS.

8. Test and Confirm

Run:

fwconsole userman --syncall

Expected output:

[Userman] Connecting via LDAPS … success

and GUI status: Connected (green).

9. Summary Checklist

  • DC has valid server certificate ■

  • CA imported to system trust ■

  • ldap.conf points to system CA bundle ■

  • openssl verify = 0 (ok) ■

  • fwconsole userman --syncall successful ■

  • FreePBX directory uses SSL/636 ■
