(Module) Audit Log Development

staticsyphon · February 5, 2026, 6:15pm

Working on an Audit Log module for FreePBX to show changes made through the UI portal (and maybe file diff too, but starting with UI database changes)

Any thoughts/comments on this? Any ideas about existing functionality for this already in FreePBX?

penguinpbx · February 5, 2026, 6:49pm

Howdy! Welcome back to the forums.

There’s quite a few logs tracking user interaction, such as Apache logs and FreePBX specific logs. Improving what gets stored in those logs is one approach.

For the database changes, you might consider TRIGGER statements that capture table modifications row-by-row into another “audit” table sharing the same column structure but with additional columns for audit_timestamp, audit_user, audit_operation, etc. More details on TRIGGERs:

As for files, the Debian-native etckeeper package is pretty slick for automating configuration file version control.

Another idea regarding where to insert this work… if it sits in between all write operations and the underlying database/file system, then you could put yourself on the path to an Undo History in addition to the Audit Log.

Related, security-wise, logging the details of everything, e.g. passwords, is not good either.

staticsyphon · February 5, 2026, 7:40pm

These are all really good points, thank you for taking the time to share!

I’ll consolidate your thoughts and what I’ve thought so far below.

Change sources for tracking:

FreePBX UI Database
AstDB - Asterisk database
File system logs

Tracking methods:

FreePBX Database (MariaDB): TRIGGER statements to track table modifications
AstDB - May have functionality similar to TRIGGERs? Alternative: crude snapshot dump + diff on interval (not very “audit”-y, more tracking at interval)
Diff on any new log entries since last read

(Consolidation) Outputs:

Simple: Plaintext log with single line entries like log file, human-friendly and quickly reviewable
NoSQL/Structured: JSON log with machine-friendly event objects
Database: Report-friendly rows with columns for data helpful in reporting

penguinpbx · February 5, 2026, 8:59pm

Regarding AstDB, snapshots could be a challenge on larger systems, in part because there is so much Asterisk SIP state tracked there completely outside of the confines of the FreePBX GUI. When the GUI does manipulate the AstDB, it is probably going through the plumbing to reach commands like database put here:

github.com/FreePBX/framework

amp_conf/htdocs/admin/libraries/php-asmanager.php

ec80591a8



          				}
          				$this->memAstDB[$keyUsed] = $value;
          				$write_through = true;
          			}
          			$this->memAstDBArray = array();
          		} else {
          			$write_through = true;
          		}
          		if ($write_through) {
          			$value = freepbx_str_replace('"','\\"',$value);
          			$r = $this->command("database put ".freepbx_str_replace(" ","/",$family)." ".freepbx_str_replace(" ","/",$key)." \"".$value."\"");
          			return (bool)strstr($r["data"] ?? '', "success");
          		}
          		return true;
          	}

          	/** Get an entry from the asterisk database
          	 * @param string $family	The family name to use
          	 * @param string $key		The key name to use
          	 * @return mixed Value of the key, or false if error
          	 */

And here:

github.com/FreePBX/firewall

phar/src/asmanager.php

7e63811ca



          			if (!isset($this->memAstDB[$keyUsed]) || $this->memAstDB[$keyUsed] != $value) {
          				$this->memAstDB[$keyUsed] = $value;
          				$write_through = true;
          			}
          			$this->memAstDBArray = array();
          		} else {
          			$write_through = true;
          		}
          		if ($write_through) {
          			$value = str_replace('"','\\"',$value);
          			$r = $this->command("database put ".str_replace(" ","/",$family)." ".str_replace(" ","/",$key)." \"".$value."\"");
          			return (bool)strstr($r["data"], "success");
          		}
          		return true;
          	}

          	/** Get an entry from the asterisk database
          	 * @param string $family	The family name to use
          	 * @param string $key		The key name to use
          	 * @return mixed Value of the key, or false if error
          	 */

And here:

github.com/FreePBX/voicemail

functions.inc.php

b1afb16de



          						if (isset($args[$id]) && !empty($args[$id]) && $args[$id] != "undefined") {
          							$options[$key] = $args[$id];
          						}
          					}
          					/* Remove call me num from options - that is set in ast db */
          					unset($options["callmenum"]);
          					/* New account values to vmconf */
          					$vmconf[$context][$extension] = ["mailbox"	=> $extension, "pwd" 		=> $pwd, "name" 		=> $name, "email" 	=> $email, "pager" 	=> $pager, "options" 	=> $options];
          					$callmenum = (isset($args["acct__callmenum"]) && !empty($args["acct__callmenum"]))?$args["acct__callmenum"]:$extension;
          					// Save call me num.
          					$cmd = "database put AMPUSER $extension/callmenum $callmenum";
          					if($astman->connected()) {
          						$astman->send_request("Command", ["Command" => $cmd]);
          					}
          				}
          				break;
          			case "bsettings":
          				if (!empty($extension)) {
          					/* Get user's old settings, since we are only replacing the basic settings. */
          					$vmbox = voicemail_mailbox_get($extension);
          					/* Delete user's old settings. */

And here:

github.com/FreePBX/voicemail

functions.inc.php

b1afb16de



          						} else if ($args[$id] == "undefined") {
          							unset($options[$basic_opt]);
          						}
          					}
          					/* Remove call me num from options - that is set in ast db. Should not be here anyway, since options are coming from the old settings... */
          					unset($options["callmenum"]);
          					/* New account values to vmconf */
          					$vmconf[$context][$extension] = ["mailbox"	=> $extension, "pwd" 		=> $pwd, "name" 		=> $name, "email" 	=> $email, "pager" 	=> $pager, "options" 	=> $options];
          					$callmenum = (isset($args["acct__callmenum"]) && !empty($args["acct__callmenum"]))?$args["acct__callmenum"]:$extension;
          					// Save call me num.
          					$cmd = "database put AMPUSER $extension/callmenum $callmenum";
          					if($astman->connected()) {
          						$astman->send_request("Command", ["Command" => $cmd]);
          					}
          				}
          				break;
          			default:
          				return false;
          		}
          		if(!empty($vmconf)) {
          			$vmconf['general']['charset'] = "UTF-8";

And maybe more… but (hopefully not) here:

github.com/FreePBX/framework

amp_conf/agi-bin/phpagi-asmanager.php

ec80591a8



          		}
          		return $db;
          	}

          	/** Add an entry to the asterisk database
          	 * @param string $family	The family name to use
          	 * @param string $key		The key name to use
          	 * @param mixed $value		The value to add
          	 * @return bool True if successful
          	 */
          	function database_put($family, $key, $value) {
          		$value = (trim($value ?? ' ') == '')?'"'.$value.'"':$value;
          		$r = $this->command("database put ".str_replace(" ","/",$family)." ".str_replace(" ","/",$key)." ".$value);
          		if (!empty($this->memAstDB)){
          			$keyUsed="/".str_replace(" ","/",$family)."/".str_replace(" ","/",$key);
          			$this->memAstDB[$keyUsed] = $value;
          		}
          		return (bool)strstr($r["data"], "success");
          	}

          	/** Get an entry from the asterisk database

Slightly aside, probably should add some upgrades from the generic command to more direct AMI commands in to the v18 milestone, so we can do nice things like DBPut and stuff… here is the GH issue.

staticsyphon · February 6, 2026, 2:37am

Awesome, I’ll review those instances.

I might also have a converged/timeline view which compiles events/changes from all sources and shows in one combined view (also hiding extra instances when an event results in entries in all the sources.)

staticsyphon · April 30, 2026, 10:35pm

Thought I’d share some progress on this. Any feedback welcome.

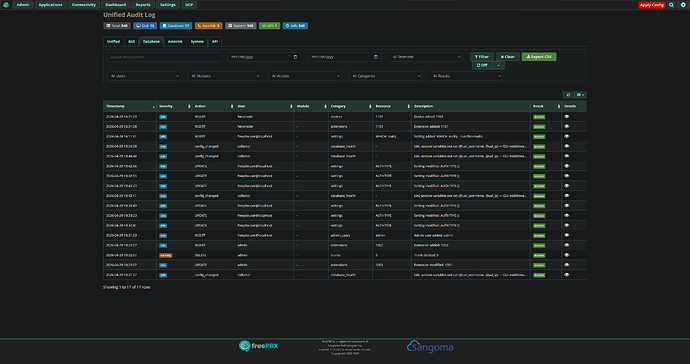

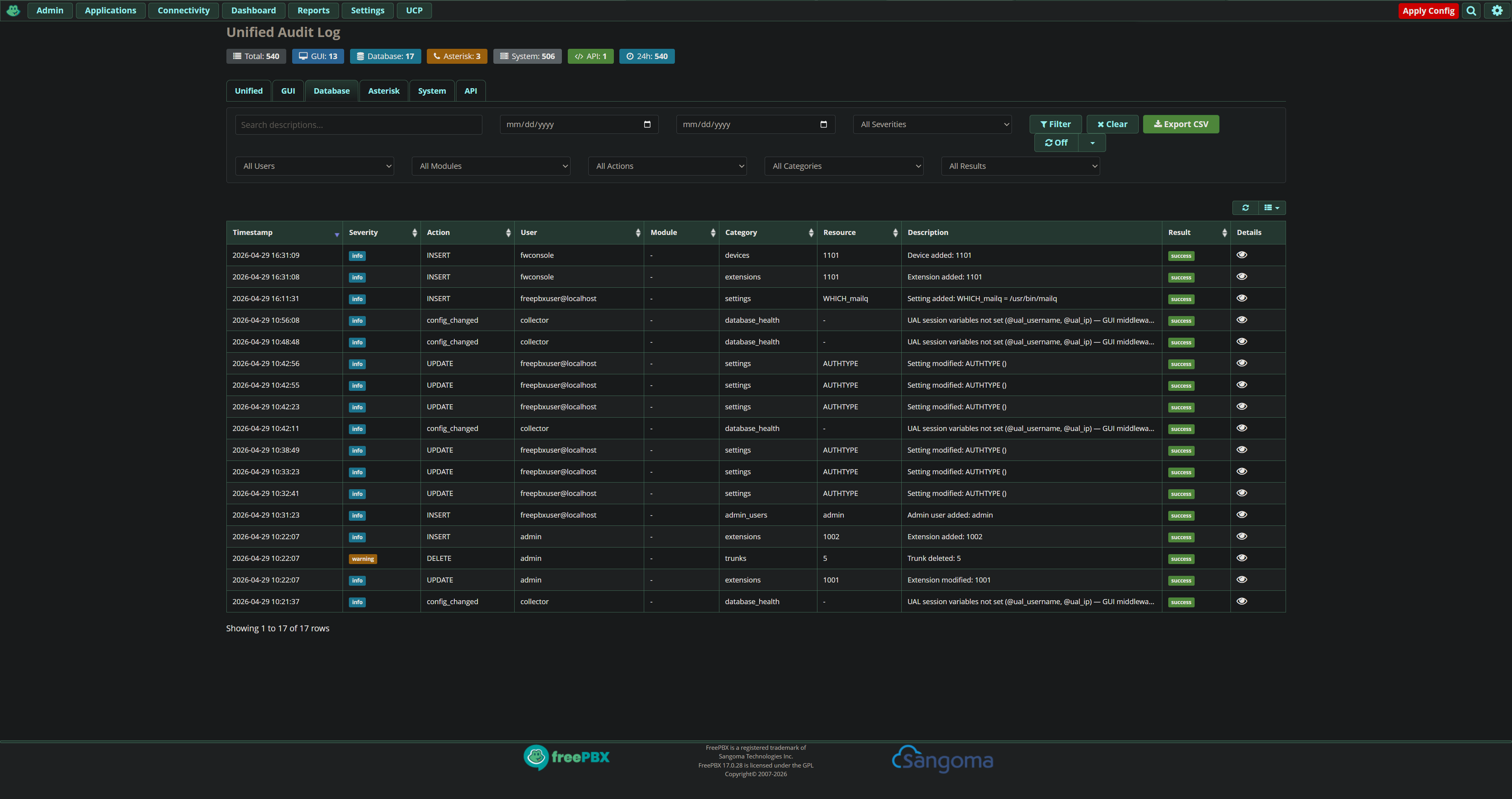

Unified View

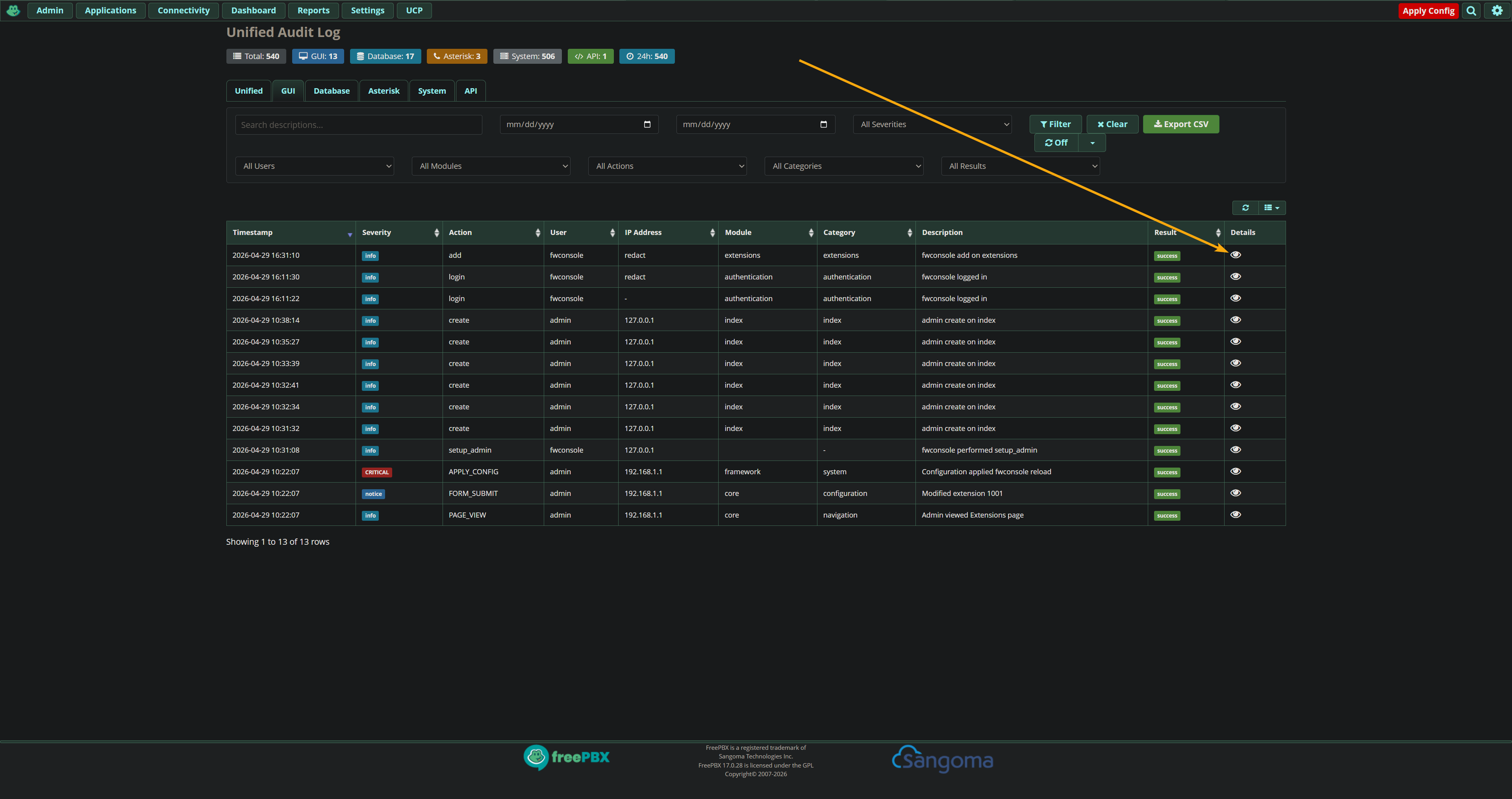

GUI View

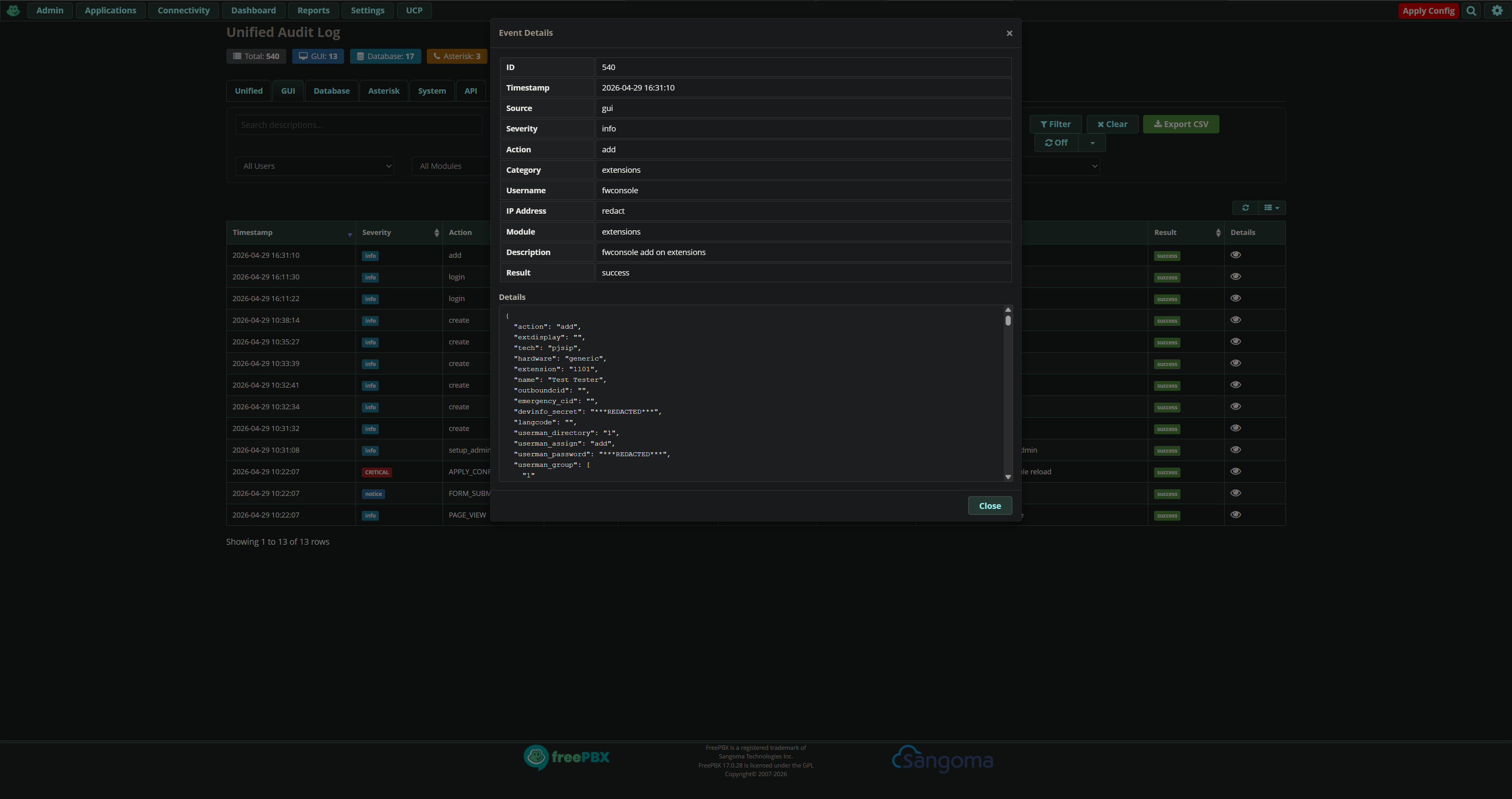

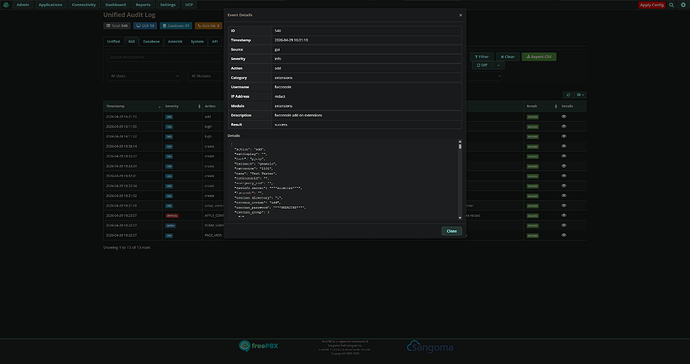

GUI View - Entry Details

Database View

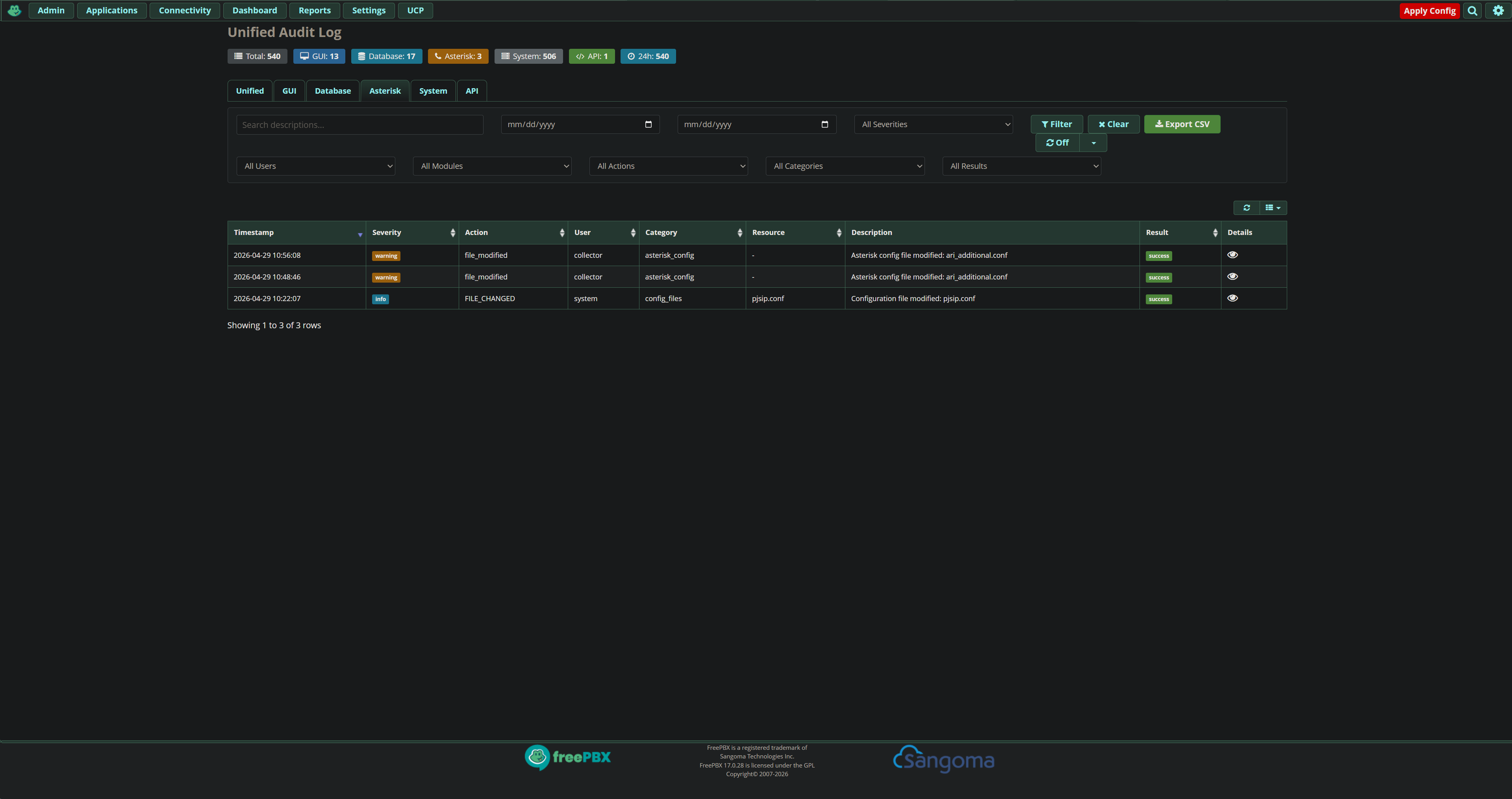

Asterisk View

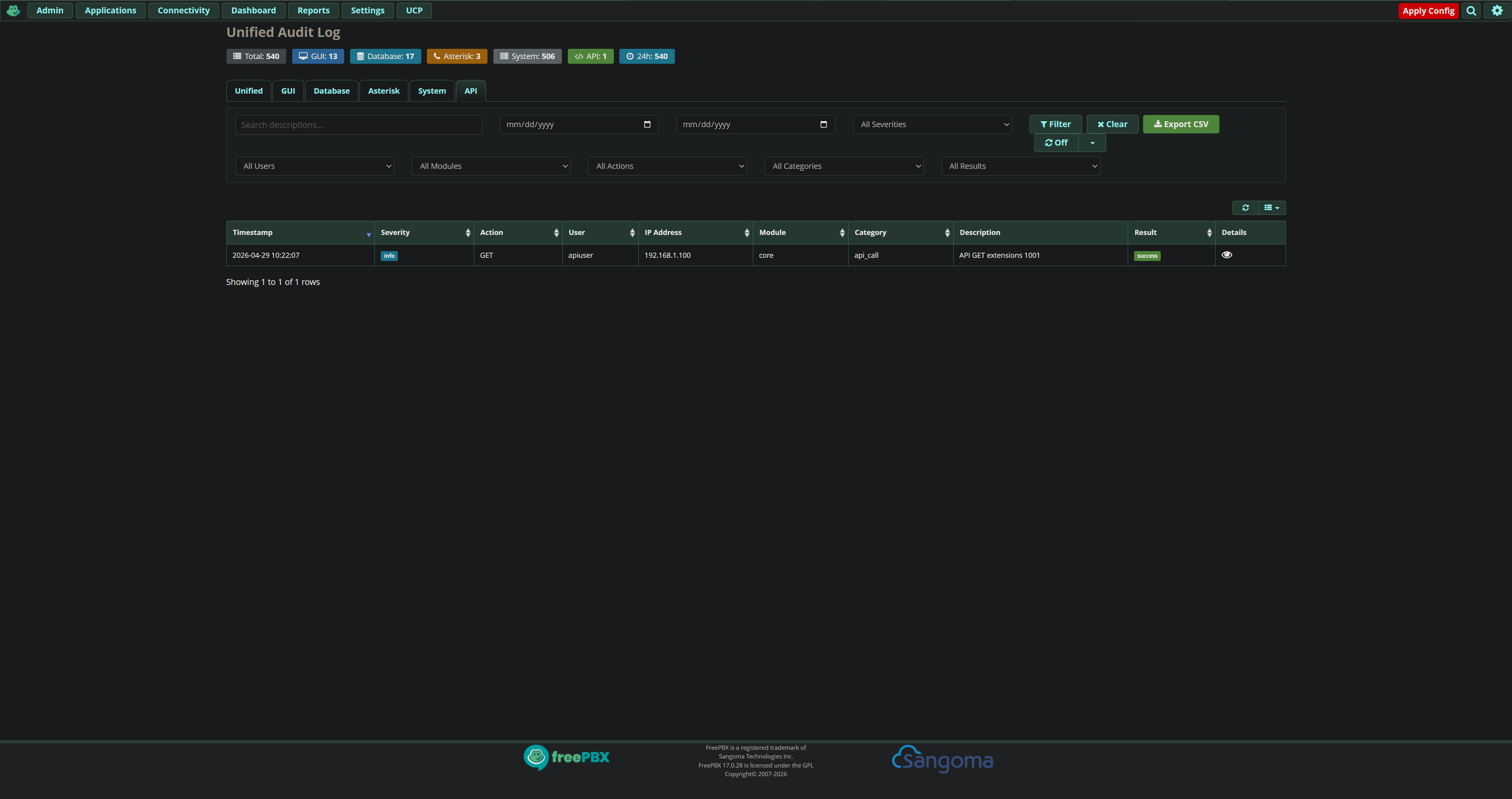

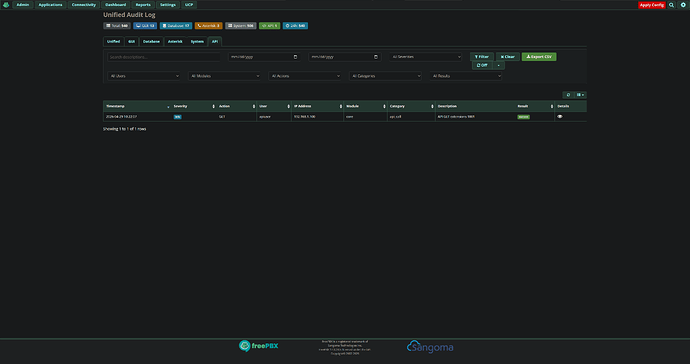

API View

penguinpbx · May 11, 2026, 8:54pm

There’s a lot to like here – excited where this is going – thank you for contributing. Is the open source code roll-out in the works ?

staticsyphon · May 13, 2026, 1:47am

If there’s interest for it, I may provide an OSS release. Currently, I’m providing repo access privately to those interested in testing it.

Honestly though, judging based on engagement here, it doesn’t seem worth the time to work on a release. ¯\_(ツ)_/¯

BlazeStudios · May 13, 2026, 12:36pm

Well there’s been no engagement from you for three months after saying “I’m working on this” with some snap shots. Until today you never offered repo access or made any indication you were looking for testers. Even on another forum there was more replies from the users and the same thing, you made an announcement (not offering any access or testing) and went radio silent for 3 months again even while people were posting.

Some might not be engaging because it doesn’t look like there was anything to engage with. No repos, no testing offers, etc.

adell4444 · May 13, 2026, 3:09pm

He gave me repo access based on communication in another forum. Just ask if you are interested. I’m still putting notes together but it’s a pretty neat module.

penguinpbx · May 13, 2026, 3:18pm

Sort of took the mantle back by saying: Engage!

But either way now here we are engaging!

Neat and needed because everybody always asking who did whaaaat?

staticsyphon · May 15, 2026, 10:44am

Ah, could be, could be.

staticsyphon · May 15, 2026, 10:51am

Simply commenting isn’t really engaging right? It’s like meta-engagement: literally talking about engaging without actually engaging

Your help pointing out places in code was very helpful. Andrew wanted to test it. That’s engagement. Otherwise, no one’s mentioned if it might be useful, offered feedback based on the screenshots, or even responded to the original idea.

I realize the forums pretty dead, but it is what it is. I’m not trying to force interest in the idea, but if no one even says “That could be useful”. Then it’s an obvious conclusion that people aren’t interested, not really complicated.

BlazeStudios · May 15, 2026, 11:18am

I PMd you and await access.

staticsyphon · May 15, 2026, 11:32am

Granted.

BlazeStudios · May 15, 2026, 12:25pm

Am I to guess where it is found on Github? I kinda expected a link so I would have to guess where to find it.

penguinpbx · May 15, 2026, 2:45pm

You are very welcome!

Forum ebbs and flows,
but its been here twenty years,
and the forks come back.

Please share as it might move along faster than you expect!
