Guide to Reducing the Size of ibdata1 File in FreePBX Without Issues

[darenavid]

After extensive research on how to safely reduce the size of the ibdata1 file in FreePBX without negative consequences, I found a reliable solution. I’m happy to share this guide for the FreePBX community.

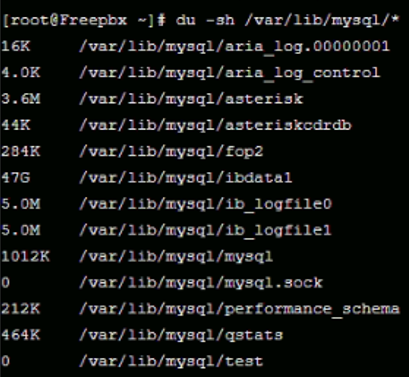

The ibdata1 file in my system had grown to 47GB, which can cause performance issues or storage problems on your server, as shown below:

Note: The final screenshot in this guide (showing the restored database) is from a different server. Enabling innodb_file_per_table does not reduce the total size of the database files but instead stores tables like cel and cdr in separate files, preventing ibdata1 from growing uncontrollably.

Follow these steps carefully to reduce the ibdata1 file size while preserving your FreePBX data:

1. Stop the Asterisk Service Begin by stopping the Asterisk service to prevent any database activity:

fwconsole stop

2. Check the innodb_file_per_table Setting
   Verify whether the innodb_file_per_table setting is enabled by running. When prompted for a password, try pressing Enter without entering a password :

mysql -u root -p -e "SHOW VARIABLES LIKE 'innodb_file_per_table';"

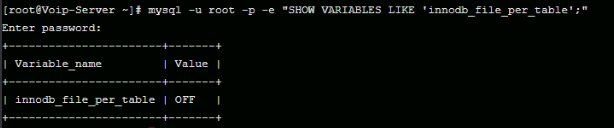

If it’s disabled, the output will look like this:

3. Enable innodb_file_per_table To enable this setting, create a new configuration file:

vi /etc/my.cnf.d/innodb.cnf

Add the following content:

[mysqld]
innodb_file_per_table = 1

4. Restart MariaDB Apply the changes by restarting the MariaDB service:

systemctl restart mariadb

Verify the setting again to confirm it’s enabled:

5. Back Up the Databases Create a directory to store the database backups:

mkdir /var/backup
cd /var/backup

Export the asterisk and asteriskcdrdb databases:

mysqldump -u root -p asterisk > asterisk.sql
mysqldump -u root -p asteriskcdrdb > asteriskcdrdb.sql

6. Drop Databases and Stop MariaDB Drop the asterisk and asteriskcdrdb databases:

mysql -u root -p -e "DROP DATABASE asterisk; DROP DATABASE asteriskcdrdb;"

Stop the MariaDB service:

systemctl stop mariadb

Confirm that MariaDB is stopped:

systemctl status mariadb

7. Remove Old InnoDB Files Delete the ibdata1 file and associated log files:

rm -rf /var/lib/mysql/ibdata1
rm -rf /var/lib/mysql/ib_logfile*

8. Start MariaDB and Verify Start the MariaDB service:

systemctl start mariadb

Check the status to ensure it’s running:

systemctl status mariadb

9. Recreate Databases and Restore Backups Recreate the databases:

mysql -u root -p -e "CREATE DATABASE asterisk; CREATE DATABASE asteriskcdrdb;"

Restore the backups:

mysql -u root -p asterisk < asterisk.sql
mysql -u root -p asteriskcdrdb < asteriskcdrdb.sql

10. Verify the Result After restoration, the asteriskcdrdb database will be recreated with separate cel and cdr tables, and the ibdata1 file size will be significantly reduced:
