All Outbound Calls Showing The Same Caller ID

FreePBX Ver.: 16.0.40.11

We have 5 different phone numbers for 5 different businesses on our FreePBX installation (single server).

All 5 outbound lines are indicating the same caller ID.

We want each phone number to have it’s own caller ID.

Our Trunking provider is Twilio. After speaking with them they feel the issue is with our FreePBX setup.

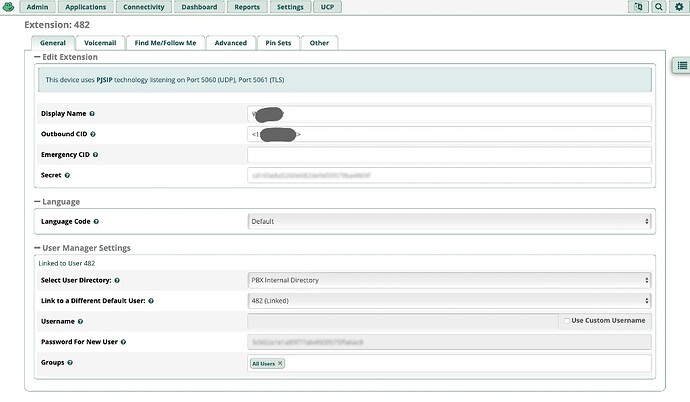

Here are 3 screen shots of our trunks, outbound routes and an example extension setting.

We have the outbound routes set to override the extension settings.

If someone could tell me what I’ve got wrong I would appreciate it.

Thanks,
John

Bump.

Anyone see something wrong with my setup?

Provide a log of your outbound call.

Providing Great Debug - Support Services - Sangoma Documentation (atlassian.net)

@comtech - Is this what you are asking for?

1738	[2024-10-08 14:06:16] VERBOSE[27684] netsock2.c: Using SIP RTP Audio TOS bits 184
1739	[2024-10-08 14:06:16] VERBOSE[27684] netsock2.c: Using SIP RTP Audio TOS bits 184 in TCLASS field.
1740	[2024-10-08 14:06:16] VERBOSE[27684] netsock2.c: Using SIP RTP Audio CoS mark 5
1741	[2024-10-08 14:06:16] VERBOSE[27684] netsock2.c: Using SIP RTP Audio TOS bits 184
1742	[2024-10-08 14:06:16] VERBOSE[27684] netsock2.c: Using SIP RTP Audio TOS bits 184 in TCLASS field.
1743	[2024-10-08 14:06:16] VERBOSE[27684] netsock2.c: Using SIP RTP Audio CoS mark 5
1744	[2024-10-08 14:06:16] VERBOSE[17894][C-00000050] app_dial.c: PJSIP/682-000000ad connected line has changed. Saving it until answer for PJSIP/RVVTwilioTrunk-2-000000aa
1745	[2024-10-08 14:06:16] VERBOSE[17894][C-00000050] app_dial.c: PJSIP/682-000000ac connected line has changed. Saving it until answer for PJSIP/RVVTwilioTrunk-2-000000aa
1746	[2024-10-08 14:06:16] VERBOSE[17894][C-00000050] app_dial.c: PJSIP/682-000000ab connected line has changed. Saving it until answer for PJSIP/RVVTwilioTrunk-2-000000aa
1747	[2024-10-08 14:06:16] VERBOSE[17894][C-00000050] app_dial.c: PJSIP/682-000000ad is ringing
1748	[2024-10-08 14:06:16] VERBOSE[17894][C-00000050] app_dial.c: PJSIP/682-000000ac is ringing
1749	[2024-10-08 14:06:17] VERBOSE[17894][C-00000050] app_dial.c: PJSIP/682-000000ab is ringing
1750	[2024-10-08 14:06:30] VERBOSE[17893][C-0000004f] app_macro.c: Spawn extension (macro-dialout-trunk, s, 30) exited non-zero on 'PJSIP/482-000000a8' in macro 'dialout-trunk'
1751	[2024-10-08 14:06:30] VERBOSE[17893][C-0000004f] pbx.c: Spawn extension (from-internal, 5412914261, 13) exited non-zero on 'PJSIP/482-000000a8'
1752	[2024-10-08 14:06:30] VERBOSE[17893][C-0000004f] pbx.c: Executing [h@from-internal:1] Macro("PJSIP/482-000000a8", "hangupcall") in new stack
1753	[2024-10-08 14:06:30] VERBOSE[17893][C-0000004f] pbx.c: Executing [s@macro-hangupcall:1] GotoIf("PJSIP/482-000000a8", "1?theend") in new stack
1754	[2024-10-08 14:06:30] VERBOSE[17893][C-0000004f] pbx_builtins.c: Goto (macro-hangupcall,s,3)
1755	[2024-10-08 14:06:30] ERROR[2269] cdr.c: Unable to find CDR for channel PJSIP/482-000000a8
1756	[2024-10-08 14:06:30] VERBOSE[17893][C-0000004f] pbx.c: Executing [s@macro-hangupcall:3] ExecIf("PJSIP/482-000000a8", "0?Set(CDR(recordingfile)=)") in new stack
1757	[2024-10-08 14:06:30] ERROR[2269] cdr.c: Unable to find CDR for channel PJSIP/482-000000a8
1758	[2024-10-08 14:06:30] VERBOSE[17893][C-0000004f] pbx.c: Executing [s@macro-hangupcall:4] Hangup("PJSIP/482-000000a8", "") in new stack
1759	[2024-10-08 14:06:30] VERBOSE[17893][C-0000004f] app_macro.c: Spawn extension (macro-hangupcall, s, 4) exited non-zero on 'PJSIP/482-000000a8' in macro 'hangupcall'
1760	[2024-10-08 14:06:30] VERBOSE[17893][C-0000004f] pbx.c: Spawn extension (from-internal, h, 1) exited non-zero on 'PJSIP/482-000000a8'
1761	[2024-10-08 14:06:30] VERBOSE[17894][C-00000050] app_macro.c: Spawn extension (macro-dial, s, 28) exited non-zero on 'PJSIP/RVVTwilioTrunk-2-000000aa' in macro 'dial'
1762	[2024-10-08 14:06:30] VERBOSE[17894][C-00000050] pbx.c: Spawn extension (ext-group, 601, 18) exited non-zero on 'PJSIP/RVVTwilioTrunk-2-000000aa'
1763	[2024-10-08 14:06:30] VERBOSE[17894][C-00000050] pbx.c: Executing [h@ext-group:1] Macro("PJSIP/RVVTwilioTrunk-2-000000aa", "hangupcall,") in new stack
1764	[2024-10-08 14:06:30] VERBOSE[17894][C-00000050] pbx.c: Executing [s@macro-hangupcall:1] GotoIf("PJSIP/RVVTwilioTrunk-2-000000aa", "1?theend") in new stack
1765	[2024-10-08 14:06:30] VERBOSE[17894][C-00000050] pbx_builtins.c: Goto (macro-hangupcall,s,3)
1766	[2024-10-08 14:06:30] ERROR[2269] cdr.c: Unable to find CDR for channel PJSIP/RVVTwilioTrunk-2-000000aa
1767	[2024-10-08 14:06:30] VERBOSE[17894][C-00000050] pbx.c: Executing [s@macro-hangupcall:3] ExecIf("PJSIP/RVVTwilioTrunk-2-000000aa", "0?Set(CDR(recordingfile)=)") in new stack
1768	[2024-10-08 14:06:30] ERROR[2269] cdr.c: Unable to find CDR for channel PJSIP/RVVTwilioTrunk-2-000000aa
1769	[2024-10-08 14:06:30] VERBOSE[17894][C-00000050] pbx.c: Executing [s@macro-hangupcall:4] Hangup("PJSIP/RVVTwilioTrunk-2-000000aa", "") in new stack
1770	[2024-10-08 14:06:30] VERBOSE[17894][C-00000050] app_macro.c: Spawn extension (macro-hangupcall, s, 4) exited non-zero on 'PJSIP/RVVTwilioTrunk-2-000000aa' in macro 'hangupcall'
1771	[2024-10-08 14:06:30] VERBOSE[17894][C-00000050] pbx.c: Spawn extension (ext-group, h, 1) exited non-zero on 'PJSIP/RVVTwilioTrunk-2-000000aa'
1772	[2024-10-08 14:06:53] VERBOSE[2195] asterisk.c: Remote UNIX connection
1773	[2024-10-08 14:06:53] VERBOSE[18166] asterisk.c: Remote UNIX connection disconnected

You don’t need < and > in your caller ID fields, try removing them.
