V17 Disk Partitions - where did the space go?

xptpa2020 · May 1, 2025, 3:07am

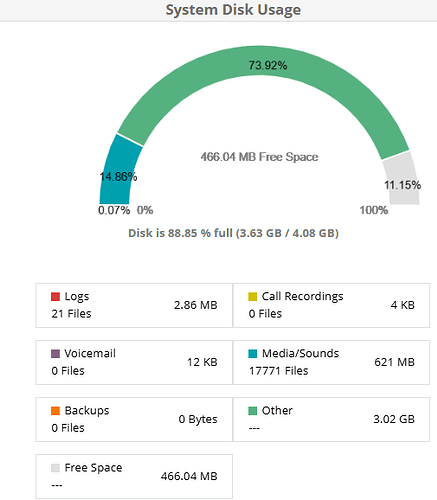

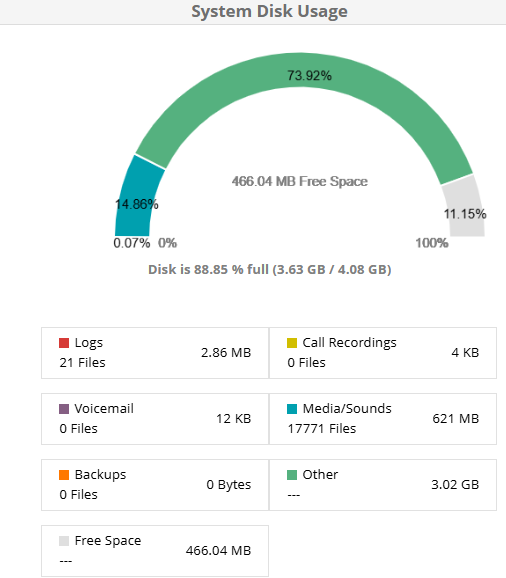

Built our first v17 from ISO installer. Chose FOG. There seems to be very little disk space:

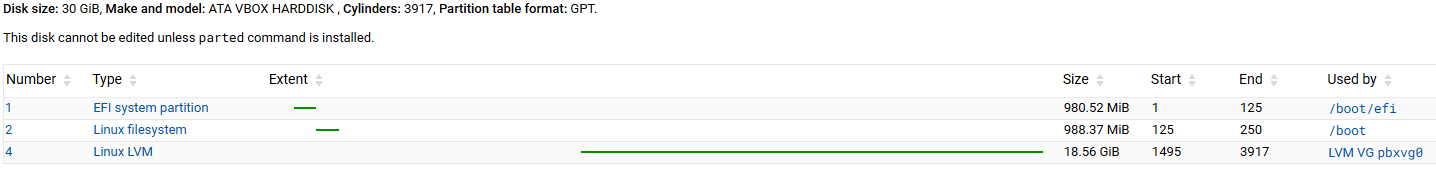

And I do not understand the disk layout. Webmin shows a 30GB disk, but here is the layout.

Did I do something wrong? How do the partitions get created? Why does the dashboard show so little space?

I thought I wanted to use the ISO installer, but am not certain of how the disk layout works.

penguinpbx · May 1, 2025, 7:53am

There’s an open issue on GitHub about the display in the dashboard:

github.com/FreePBX/sngfd12

[bug]: drive space reporting on dashboard does not show partitions

opened 03:41PM - 25 Apr 25 UTC

chrsmj

bug triage

### FreePBX Version FreePBX 17 ### Issue Description Either the sysadmin modu…le needs an update with a new function to take into account multiple partitions when it returns graphics to the dashboard, or the dashboard itself needs to be modified to take advantage of an existing function in sysadmin which suits this purpose. Another option would be a multi-page dashboard. ### Operating Environment SNGDEB ### Relevant log output ```shell ```

…probably should move it to main issue tracker :-/ but yes this is known issue. One workaround: if you activate the system, then you should be able to navigate into System Admin and see the space of individual partitions.

How much swap space is there ? That gets allocated, too: all the partitions are automatically made during installation based on spice level and disk size.
