I did try all the suggestions on a trial-and-error basis, but no luck.
This is my debug output
Last login: Sun Jan 21 14:49:55 2024 from 192.168.20.2
______ ______ ______ __ __
| ___| | ___ \| ___ \\ \ / /
| |_ _ __ ___ ___ | |_/ /| |_/ / \ V /
| _| | '__| / _ \ / _ \| __/ | ___ \ / \
| | | | | __/| __/| | | |_/ // /^\ \
\_| |_| \___| \___|\_| \____/ \/ \/
NOTICE! You have 4 notifications! Please log into the UI to see them!
Current Network Configuration
+-----------+-------------------+--------------------------+
| Interface | MAC Address | IP Addresses |
+-----------+-------------------+--------------------------+
| eth0 | 00:0C:29:1B:7E:9B | 10.2.0.20 |
| | | fe80::20c:29ff:fe1b:7e9b |
+-----------+-------------------+--------------------------+
Please note most tasks should be handled through the GUI.
You can access the GUI by typing one of the above IPs in to your web browser.
For support please visit:
http://www.freepbx.org/support-and-professional-services
[root@freepbx ~]# asterisk -rvv
Asterisk 18.16.0, Copyright (C) 1999 - 2022, Sangoma Technologies Corporation and others.
Created by Mark Spencer <[email protected]>
Asterisk comes with ABSOLUTELY NO WARRANTY; type 'core show warranty' for details.
This is free software, with components licensed under the GNU General Public
License version 2 and other licenses; you are welcome to redistribute it under
certain conditions. Type 'core show license' for details.
=========================================================================
Connected to Asterisk 18.16.0 currently running on freepbx (pid = 2395)
<--- Transmitting SIP request (450 bytes) to UDP:185.118.63.77:5060 --->
OPTIONS sip:[email protected] SIP/2.0
Via: SIP/2.0/UDP 185.52.***.***:5060;rport;branch=z9hG4bKPj55930a52-e075-4076-99c3-d88af23cc138
From: <sip:[email protected]>;tag=58b90414-06ba-4422-944f-86fec3041b8b
To: <sip:[email protected]>
Contact: <sip:[email protected].***.***:5060>
Call-ID: f2e7ab0b-8615-48ac-92a4-966cef61b53d
CSeq: 20565 OPTIONS
Max-Forwards: 70
User-Agent: FPBX-16.0.33(18.16.0)
Content-Length: 0
<--- Received SIP response (391 bytes) from UDP:185.118.63.77:5060 --->
SIP/2.0 200 OK
Via: SIP/2.0/UDP 185.52.***.***:5060;rport=32015;branch=z9hG4bKPj55930a52-e075-4076-99c3-d88af23cc138;received=185.52.***.***
From: <sip:[email protected]>;tag=58b90414-06ba-4422-944f-86fec3041b8b
To: <sip:[email protected]>;tag=9dd61ff61e802d8e2bef5f14621ef3c2.854d446b
Call-ID: f2e7ab0b-8615-48ac-92a4-966cef61b53d
CSeq: 20565 OPTIONS
Content-Length: 0
<--- Received SIP request (964 bytes) from UDP:10.100.0.1:60400 --->
INVITE sip:316********@10.2.0.20 SIP/2.0
Via: SIP/2.0/UDP 10.100.0.1:60400;rport;branch=z9hG4bKPjd8e1bca83dd94d43806b6fb1b17ab21c
Max-Forwards: 70
From: "Marc" <sip:[email protected]>;tag=7ad1867f5eb84c0c9ef3d1b7a206201d
To: <sip:316********@10.2.0.20>
Contact: "Marc" <sip:[email protected]:60400;ob>
Call-ID: d8bf1b6debf24631b13aa19802aac736
CSeq: 29368 INVITE
Allow: PRACK, INVITE, ACK, BYE, CANCEL, UPDATE, INFO, SUBSCRIBE, NOTIFY, REFER, MESSAGE, OPTIONS
Supported: replaces, 100rel, timer, norefersub
Session-Expires: 1800
Min-SE: 90
User-Agent: MicroSIP/3.21.3
Content-Type: application/sdp
Content-Length: 334
v=0
o=- 3914879804 3914879804 IN IP4 10.100.0.1
s=pjmedia
b=AS:84
t=0 0
a=X-nat:0
m=audio 4022 RTP/AVP 8 0 101
c=IN IP4 10.100.0.1
b=TIAS:64000
a=rtcp:4023 IN IP4 10.100.0.1
a=sendrecv
a=rtpmap:8 PCMA/8000
a=rtpmap:0 PCMU/8000
a=rtpmap:101 telephone-event/8000
a=fmtp:101 0-16
a=ssrc:2084714661 cname:30f9506477b00c55
<--- Transmitting SIP response (554 bytes) to UDP:10.100.0.1:60400 --->
SIP/2.0 401 Unauthorized
Via: SIP/2.0/UDP 10.100.0.1:60400;rport=60400;received=10.100.0.1;branch=z9hG4bKPjd8e1bca83dd94d43806b6fb1b17ab21c
Call-ID: d8bf1b6debf24631b13aa19802aac736
From: "Marc" <sip:[email protected]>;tag=7ad1867f5eb84c0c9ef3d1b7a206201d
To: <sip:316********@10.2.0.20>;tag=z9hG4bKPjd8e1bca83dd94d43806b6fb1b17ab21c
CSeq: 29368 INVITE
WWW-Authenticate: Digest realm="asterisk",nonce="1705847804/22832631bf86cbce27f4e391936a3fa7",opaque="4dbc9e09256feb4c",algorithm=MD5,qop="auth"
Server: FPBX-16.0.33(18.16.0)
Content-Length: 0
<--- Received SIP request (379 bytes) from UDP:10.100.0.1:60400 --->
ACK sip:316********@10.2.0.20 SIP/2.0
Via: SIP/2.0/UDP 10.100.0.1:60400;rport;branch=z9hG4bKPjd8e1bca83dd94d43806b6fb1b17ab21c
Max-Forwards: 70
From: "Marc" <sip:[email protected]>;tag=7ad1867f5eb84c0c9ef3d1b7a206201d
To: <sip:316********@10.2.0.20>;tag=z9hG4bKPjd8e1bca83dd94d43806b6fb1b17ab21c
Call-ID: d8bf1b6debf24631b13aa19802aac736
CSeq: 29368 ACK
Content-Length: 0
<--- Received SIP request (1259 bytes) from UDP:10.100.0.1:60400 --->
INVITE sip:316********@10.2.0.20 SIP/2.0
Via: SIP/2.0/UDP 10.100.0.1:60400;rport;branch=z9hG4bKPj08b08c02af70447d9f29566e01365d47
Max-Forwards: 70
From: "Marc" <sip:[email protected]>;tag=7ad1867f5eb84c0c9ef3d1b7a206201d
To: <sip:316********@10.2.0.20>
Contact: "Marc" <sip:[email protected]:60400;ob>
Call-ID: d8bf1b6debf24631b13aa19802aac736
CSeq: 29369 INVITE
Allow: PRACK, INVITE, ACK, BYE, CANCEL, UPDATE, INFO, SUBSCRIBE, NOTIFY, REFER, MESSAGE, OPTIONS
Supported: replaces, 100rel, timer, norefersub
Session-Expires: 1800
Min-SE: 90
User-Agent: MicroSIP/3.21.3
Authorization: Digest username="100", realm="asterisk", nonce="1705847804/22832631bf86cbce27f4e391936a3fa7", uri="sip:316********@10.2.0.20", response="232b1b5f34f5d31bde95be1b69ece1c4", algorithm=MD5, cnonce="a6b79cef38064a6eb7824e4195076c83", opaque="4dbc9e09256feb4c", qop=auth, nc=00000001
Content-Type: application/sdp
Content-Length: 334
v=0
o=- 3914879804 3914879804 IN IP4 10.100.0.1
s=pjmedia
b=AS:84
t=0 0
a=X-nat:0
m=audio 4022 RTP/AVP 8 0 101
c=IN IP4 10.100.0.1
b=TIAS:64000
a=rtcp:4023 IN IP4 10.100.0.1
a=sendrecv
a=rtpmap:8 PCMA/8000
a=rtpmap:0 PCMU/8000
a=rtpmap:101 telephone-event/8000
a=fmtp:101 0-16
a=ssrc:2084714661 cname:30f9506477b00c55
<--- Transmitting SIP response (356 bytes) to UDP:10.100.0.1:60400 --->
SIP/2.0 100 Trying
Via: SIP/2.0/UDP 10.100.0.1:60400;rport=60400;received=10.100.0.1;branch=z9hG4bKPj08b08c02af70447d9f29566e01365d47
Call-ID: d8bf1b6debf24631b13aa19802aac736
From: "Marc" <sip:[email protected]>;tag=7ad1867f5eb84c0c9ef3d1b7a206201d
To: <sip:316********@10.2.0.20>
CSeq: 29369 INVITE
Server: FPBX-16.0.33(18.16.0)
Content-Length: 0
== Using SIP RTP Audio TOS bits 184
== Using SIP RTP Audio TOS bits 184 in TCLASS field.
== Using SIP RTP Audio CoS mark 5
<--- Transmitting SIP response (838 bytes) to UDP:10.100.0.1:60400 --->
SIP/2.0 183 Session Progress
Via: SIP/2.0/UDP 10.100.0.1:60400;rport=60400;received=10.100.0.1;branch=z9hG4bKPj08b08c02af70447d9f29566e01365d47
Call-ID: d8bf1b6debf24631b13aa19802aac736
From: "Marc" <sip:[email protected]>;tag=7ad1867f5eb84c0c9ef3d1b7a206201d
To: <sip:316********@10.2.0.20>;tag=b2d9eee1-3613-428f-bf26-5a7aeab35c50
CSeq: 29369 INVITE
Server: FPBX-16.0.33(18.16.0)
Contact: <sip:10.2.0.20:5060>
Allow: OPTIONS, INVITE, ACK, BYE, CANCEL, UPDATE, PRACK, REGISTER, SUBSCRIBE, NOTIFY, PUBLISH, MESSAGE, REFER
Content-Type: application/sdp
Content-Length: 255
v=0
o=- 3914879804 3914879806 IN IP4 10.2.0.20
s=Asterisk
c=IN IP4 10.2.0.20
t=0 0
m=audio 15232 RTP/AVP 0 8 101
a=rtpmap:0 PCMU/8000
a=rtpmap:8 PCMA/8000
a=rtpmap:101 telephone-event/8000
a=fmtp:101 0-16
a=ptime:20
a=maxptime:150
a=sendrecv
<--- Received SIP request (847 bytes) from UDP:10.100.0.1:60400 --->
UPDATE sip:10.2.0.20:5060 SIP/2.0
Via: SIP/2.0/UDP 10.100.0.1:60400;rport;branch=z9hG4bKPj902a00e0964f41f983b148b8a977b780
Max-Forwards: 70
From: "Marc" <sip:[email protected]>;tag=7ad1867f5eb84c0c9ef3d1b7a206201d
To: <sip:316********@10.2.0.20>;tag=b2d9eee1-3613-428f-bf26-5a7aeab35c50
Contact: "Marc" <sip:[email protected]:60400;ob>
Call-ID: d8bf1b6debf24631b13aa19802aac736
CSeq: 29370 UPDATE
Supported: replaces, 100rel, timer, norefersub
Session-Expires: 1800
Min-SE: 90
Content-Type: application/sdp
Content-Length: 310
v=0
o=- 3914879804 3914879805 IN IP4 10.100.0.1
s=pjmedia
b=AS:84
t=0 0
a=X-nat:0
m=audio 4022 RTP/AVP 0 101
c=IN IP4 10.100.0.1
b=TIAS:64000
a=rtcp:4023 IN IP4 10.100.0.1
a=ssrc:2084714661 cname:30f9506477b00c55
a=rtpmap:0 PCMU/8000
a=rtpmap:101 telephone-event/8000
a=fmtp:101 0-16
a=sendrecv
<--- Transmitting SIP response (901 bytes) to UDP:10.100.0.1:60400 --->
SIP/2.0 200 OK
Via: SIP/2.0/UDP 10.100.0.1:60400;rport=60400;received=10.100.0.1;branch=z9hG4bKPj902a00e0964f41f983b148b8a977b780
Call-ID: d8bf1b6debf24631b13aa19802aac736
From: "Marc" <sip:[email protected]>;tag=7ad1867f5eb84c0c9ef3d1b7a206201d
To: <sip:316********@10.2.0.20>;tag=b2d9eee1-3613-428f-bf26-5a7aeab35c50
CSeq: 29370 UPDATE
Session-Expires: 1800;refresher=uac
Require: timer
Contact: <sip:10.2.0.20:5060>
Allow: OPTIONS, INVITE, ACK, BYE, CANCEL, UPDATE, PRACK, REGISTER, SUBSCRIBE, NOTIFY, PUBLISH, MESSAGE, REFER
Supported: 100rel, timer, replaces, norefersub
Server: FPBX-16.0.33(18.16.0)
Content-Type: application/sdp
Content-Length: 231
v=0
o=- 3914879804 3914879807 IN IP4 10.2.0.20
s=Asterisk
c=IN IP4 10.2.0.20
t=0 0
m=audio 15232 RTP/AVP 0 101
a=rtpmap:0 PCMU/8000
a=rtpmap:101 telephone-event/8000
a=fmtp:101 0-16
a=ptime:20
a=maxptime:150
a=sendrecv
[2024-01-21 14:36:44] ERROR[24202]: res_pjsip_header_funcs.c:717 remove_header: No headers had been previously added to this session.
== Spawn extension (func-apply-sipheaders, s, 13) exited non-zero on 'PJSIP/DIDLogicTrunk-0000005d'
<--- Transmitting SIP request (1164 bytes) to UDP:185.118.63.77:5060 --->
INVITE sip:316********@sip.nl.didlogic.net SIP/2.0
Via: SIP/2.0/UDP 185.52.***.***:5060;rport;branch=z9hG4bKPj6ad98f14-63d8-4604-8fde-95768cd4127d
From: <sip:3188*******@10.100.0.18>;tag=00b39610-6a82-4482-8561-e336e3b060ce
To: <sip:316********@sip.nl.didlogic.net>
Contact: <sip:[email protected].***.***:5060>
Call-ID: 96d617ad-bd5e-4719-8a3f-cae340a3ef44
CSeq: 31083 INVITE
Allow: OPTIONS, INVITE, ACK, BYE, CANCEL, UPDATE, PRACK, REGISTER, SUBSCRIBE, NOTIFY, PUBLISH, MESSAGE, REFER
Supported: 100rel, timer, replaces, norefersub, histinfo
Session-Expires: 1800
Min-SE: 90
P-Asserted-Identity: <sip:3188*******@10.100.0.18>
Remote-Party-ID: <sip:3188*******@10.100.0.18>;party=calling;privacy=off;screen=no
Max-Forwards: 70
User-Agent: FPBX-16.0.33(18.16.0)
Content-Type: application/sdp
Content-Length: 337
v=0
o=- 856107292 856107292 IN IP4 185.52.***.***
s=Asterisk
c=IN IP4 185.52.***.***
t=0 0
m=audio 19690 RTP/AVP 0 8 3 111 9 101
a=rtpmap:0 PCMU/8000
a=rtpmap:8 PCMA/8000
a=rtpmap:3 GSM/8000
a=rtpmap:111 G726-32/8000
a=rtpmap:9 G722/8000
a=rtpmap:101 telephone-event/8000
a=fmtp:101 0-16
a=ptime:20
a=maxptime:150
a=sendrecv
<--- Received SIP response (539 bytes) from UDP:185.118.63.77:5060 --->
SIP/2.0 407 Proxy Authentication Required
Via: SIP/2.0/UDP 185.52.***.***:5060;rport=32015;branch=z9hG4bKPj6ad98f14-63d8-4604-8fde-95768cd4127d;received=185.52.***.***
From: <sip:3188*******@10.100.0.18>;tag=00b39610-6a82-4482-8561-e336e3b060ce
To: <sip:316********@sip.nl.didlogic.net>;tag=9dd61ff61e802d8e2bef5f14621ef3c2.0e02c88a
Call-ID: 96d617ad-bd5e-4719-8a3f-cae340a3ef44
CSeq: 31083 INVITE
Proxy-Authenticate: Digest realm="sip.nl.didlogic.net", nonce="Za0tKGWtK/zNUUwZlLCxqYKgvjI+FA8reW3S94A=", qop="auth"
Content-Length: 0
<--- Transmitting SIP request (450 bytes) to UDP:185.118.63.77:5060 --->
ACK sip:316********@sip.nl.didlogic.net SIP/2.0
Via: SIP/2.0/UDP 185.52.***.***:5060;rport;branch=z9hG4bKPj6ad98f14-63d8-4604-8fde-95768cd4127d
From: <sip:3188*******@10.100.0.18>;tag=00b39610-6a82-4482-8561-e336e3b060ce
To: <sip:316********@sip.nl.didlogic.net>;tag=9dd61ff61e802d8e2bef5f14621ef3c2.0e02c88a
Call-ID: 96d617ad-bd5e-4719-8a3f-cae340a3ef44
CSeq: 31083 ACK
Max-Forwards: 70
User-Agent: FPBX-16.0.33(18.16.0)
Content-Length: 0
<--- Transmitting SIP request (1443 bytes) to UDP:185.118.63.77:5060 --->
INVITE sip:316********@sip.nl.didlogic.net SIP/2.0
Via: SIP/2.0/UDP 185.52.***.***:5060;rport;branch=z9hG4bKPj5d5866c7-3c35-4200-ad83-6d944cce7cb6
From: <sip:3188*******@10.100.0.18>;tag=00b39610-6a82-4482-8561-e336e3b060ce
To: <sip:316********@sip.nl.didlogic.net>
Contact: <sip:[email protected].***.***:5060>
Call-ID: 96d617ad-bd5e-4719-8a3f-cae340a3ef44
CSeq: 31084 INVITE
Allow: OPTIONS, INVITE, ACK, BYE, CANCEL, UPDATE, PRACK, REGISTER, SUBSCRIBE, NOTIFY, PUBLISH, MESSAGE, REFER
Supported: 100rel, timer, replaces, norefersub, histinfo
Session-Expires: 1800
Min-SE: 90
Max-Forwards: 70
User-Agent: FPBX-16.0.33(18.16.0)
Proxy-Authorization: Digest username="86346", realm="sip.nl.didlogic.net", nonce="Za0tKGWtK/zNUUwZlLCxqYKgvjI+FA8reW3S94A=", uri="sip:316********@sip.nl.didlogic.net", response="2a206020df0253f466d7d6439a667ece", cnonce="6be52cded77f41f09d7267d185778838", qop=auth, nc=00000001
P-Asserted-Identity: <sip:3188*******@10.100.0.18>
Remote-Party-ID: <sip:3188*******@10.100.0.18>;party=calling;privacy=off;screen=no
Content-Type: application/sdp
Content-Length: 337
v=0
o=- 856107292 856107292 IN IP4 185.52.***.***
s=Asterisk
c=IN IP4 185.52.***.***
t=0 0
m=audio 19690 RTP/AVP 0 8 3 111 9 101
a=rtpmap:0 PCMU/8000
a=rtpmap:8 PCMA/8000
a=rtpmap:3 GSM/8000
a=rtpmap:111 G726-32/8000
a=rtpmap:9 G722/8000
a=rtpmap:101 telephone-event/8000
a=fmtp:101 0-16
a=ptime:20
a=maxptime:150
a=sendrecv
<--- Received SIP response (384 bytes) from UDP:185.118.63.77:5060 --->
SIP/2.0 100 trying -- your call is important to us
Via: SIP/2.0/UDP 185.52.***.***:5060;rport=32015;branch=z9hG4bKPj5d5866c7-3c35-4200-ad83-6d944cce7cb6;received=185.52.***.***
From: <sip:3188*******@10.100.0.18>;tag=00b39610-6a82-4482-8561-e336e3b060ce
To: <sip:316********@sip.nl.didlogic.net>
Call-ID: 96d617ad-bd5e-4719-8a3f-cae340a3ef44
CSeq: 31084 INVITE
Content-Length: 0
<--- Received SIP response (1047 bytes) from UDP:185.118.63.77:5060 --->
SIP/2.0 183 Session Progress
Via: SIP/2.0/UDP 185.52.***.***:5060;received=185.52.***.***;rport=32015;branch=z9hG4bKPj5d5866c7-3c35-4200-ad83-6d944cce7cb6
Record-Route: <sip:185.118.63.77;lr=on;ftag=00b39610-6a82-4482-8561-e336e3b060ce;did=7d.4e11;nat=yes;vsf=AAAAAAcFCggCAAgBAQMDd3EBHh8BAB4eHh8JOA-->
From: <sip:3188*******@10.100.0.18>;tag=00b39610-6a82-4482-8561-e336e3b060ce
To: <sip:316********@sip.nl.didlogic.net>;tag=as2c7ce0c7
Call-ID: 96d617ad-bd5e-4719-8a3f-cae340a3ef44
CSeq: 31084 INVITE
Server: DID Logic MGW
Allow: INVITE, ACK, CANCEL, OPTIONS, BYE, REFER, SUBSCRIBE, NOTIFY, INFO, PUBLISH, MESSAGE
Supported: replaces
Contact: <sip:316********@81.171.28.137:5080>
Content-Type: application/sdp
Content-Length: 306
v=0
o=didlogic 95118517 95118517 IN IP4 81.171.28.137
s=DID Logic MGW
c=IN IP4 81.171.28.137
t=0 0
m=audio 11748 RTP/AVP 0 8 9 3 101
a=rtpmap:0 PCMU/8000
a=rtpmap:8 PCMA/8000
a=rtpmap:9 G722/8000
a=rtpmap:3 GSM/8000
a=rtpmap:101 telephone-event/8000
a=fmtp:101 0-16
a=maxptime:150
a=sendrecv
<--- Transmitting SIP response (906 bytes) to UDP:10.100.0.1:60400 --->
SIP/2.0 183 Session Progress
Via: SIP/2.0/UDP 10.100.0.1:60400;rport=60400;received=10.100.0.1;branch=z9hG4bKPj08b08c02af70447d9f29566e01365d47
Call-ID: d8bf1b6debf24631b13aa19802aac736
From: "Marc" <sip:[email protected]>;tag=7ad1867f5eb84c0c9ef3d1b7a206201d
To: <sip:316********@10.2.0.20>;tag=b2d9eee1-3613-428f-bf26-5a7aeab35c50
CSeq: 29369 INVITE
Server: FPBX-16.0.33(18.16.0)
Allow: OPTIONS, INVITE, ACK, BYE, CANCEL, UPDATE, PRACK, REGISTER, SUBSCRIBE, NOTIFY, PUBLISH, MESSAGE, REFER
Contact: <sip:10.2.0.20:5060>
P-Asserted-Identity: "CID:3188*******" <sip:316********@10.2.0.20>
Content-Type: application/sdp
Content-Length: 255
v=0
o=- 3914879804 3914879806 IN IP4 10.2.0.20
s=Asterisk
c=IN IP4 10.2.0.20
t=0 0
m=audio 15232 RTP/AVP 0 8 101
a=rtpmap:0 PCMU/8000
a=rtpmap:8 PCMA/8000
a=rtpmap:101 telephone-event/8000
a=fmtp:101 0-16
a=ptime:20
a=maxptime:150
a=sendrecv
<--- Received SIP request (861 bytes) from UDP:10.100.0.1:60400 --->
UPDATE sip:10.2.0.20:5060 SIP/2.0
Via: SIP/2.0/UDP 10.100.0.1:60400;rport;branch=z9hG4bKPja2703bcbe6434105b2c78a29192df5aa
Max-Forwards: 70
From: "Marc" <sip:[email protected]>;tag=7ad1867f5eb84c0c9ef3d1b7a206201d
To: <sip:316********@10.2.0.20>;tag=b2d9eee1-3613-428f-bf26-5a7aeab35c50
Contact: "Marc" <sip:[email protected]:60400;ob>
Call-ID: d8bf1b6debf24631b13aa19802aac736
CSeq: 29371 UPDATE
Supported: replaces, 100rel, timer, norefersub
Session-Expires: 1800;refresher=uac
Min-SE: 90
Content-Type: application/sdp
Content-Length: 310
v=0
o=- 3914879804 3914879807 IN IP4 10.100.0.1
s=pjmedia
b=AS:84
t=0 0
a=X-nat:0
m=audio 4022 RTP/AVP 0 101
c=IN IP4 10.100.0.1
b=TIAS:64000
a=rtcp:4023 IN IP4 10.100.0.1
a=ssrc:2084714661 cname:30f9506477b00c55
a=rtpmap:0 PCMU/8000
a=rtpmap:101 telephone-event/8000
a=fmtp:101 0-16
a=sendrecv
<--- Transmitting SIP response (969 bytes) to UDP:10.100.0.1:60400 --->
SIP/2.0 200 OK
Via: SIP/2.0/UDP 10.100.0.1:60400;rport=60400;received=10.100.0.1;branch=z9hG4bKPja2703bcbe6434105b2c78a29192df5aa
Call-ID: d8bf1b6debf24631b13aa19802aac736
From: "Marc" <sip:[email protected]>;tag=7ad1867f5eb84c0c9ef3d1b7a206201d
To: <sip:316********@10.2.0.20>;tag=b2d9eee1-3613-428f-bf26-5a7aeab35c50
CSeq: 29371 UPDATE
Session-Expires: 1800;refresher=uac
Require: timer
Contact: <sip:10.2.0.20:5060>
Allow: OPTIONS, INVITE, ACK, BYE, CANCEL, UPDATE, PRACK, REGISTER, SUBSCRIBE, NOTIFY, PUBLISH, MESSAGE, REFER
Supported: 100rel, timer, replaces, norefersub
P-Asserted-Identity: "CID:3188*******" <sip:316********@10.2.0.20>
Server: FPBX-16.0.33(18.16.0)
Content-Type: application/sdp
Content-Length: 231
v=0
o=- 3914879804 3914879808 IN IP4 10.2.0.20
s=Asterisk
c=IN IP4 10.2.0.20
t=0 0
m=audio 15232 RTP/AVP 0 101
a=rtpmap:0 PCMU/8000
a=rtpmap:101 telephone-event/8000
a=fmtp:101 0-16
a=ptime:20
a=maxptime:150
a=sendrecv
<--- Received SIP request (368 bytes) from UDP:10.100.0.1:60400 --->
CANCEL sip:316********@10.2.0.20 SIP/2.0
Via: SIP/2.0/UDP 10.100.0.1:60400;rport;branch=z9hG4bKPj08b08c02af70447d9f29566e01365d47
Max-Forwards: 70
From: "Marc" <sip:[email protected]>;tag=7ad1867f5eb84c0c9ef3d1b7a206201d
To: <sip:316********@10.2.0.20>
Call-ID: d8bf1b6debf24631b13aa19802aac736
CSeq: 29369 CANCEL
User-Agent: MicroSIP/3.21.3
Content-Length: 0
<--- Transmitting SIP response (393 bytes) to UDP:10.100.0.1:60400 --->
SIP/2.0 200 OK
Via: SIP/2.0/UDP 10.100.0.1:60400;rport=60400;received=10.100.0.1;branch=z9hG4bKPj08b08c02af70447d9f29566e01365d47
Call-ID: d8bf1b6debf24631b13aa19802aac736
From: "Marc" <sip:[email protected]>;tag=7ad1867f5eb84c0c9ef3d1b7a206201d
To: <sip:316********@10.2.0.20>;tag=b2d9eee1-3613-428f-bf26-5a7aeab35c50
CSeq: 29369 CANCEL
Server: FPBX-16.0.33(18.16.0)
Content-Length: 0
<--- Transmitting SIP response (588 bytes) to UDP:10.100.0.1:60400 --->
SIP/2.0 487 Request Terminated
Via: SIP/2.0/UDP 10.100.0.1:60400;rport=60400;received=10.100.0.1;branch=z9hG4bKPj08b08c02af70447d9f29566e01365d47
Call-ID: d8bf1b6debf24631b13aa19802aac736
From: "Marc" <sip:[email protected]>;tag=7ad1867f5eb84c0c9ef3d1b7a206201d
To: <sip:316********@10.2.0.20>;tag=b2d9eee1-3613-428f-bf26-5a7aeab35c50
CSeq: 29369 INVITE
Server: FPBX-16.0.33(18.16.0)
Allow: OPTIONS, INVITE, ACK, BYE, CANCEL, UPDATE, PRACK, REGISTER, SUBSCRIBE, NOTIFY, PUBLISH, MESSAGE, REFER
P-Asserted-Identity: "CID:3188*******" <sip:316********@10.2.0.20>
Content-Length: 0
<--- Received SIP request (374 bytes) from UDP:10.100.0.1:60400 --->
ACK sip:316********@10.2.0.20 SIP/2.0
Via: SIP/2.0/UDP 10.100.0.1:60400;rport;branch=z9hG4bKPj08b08c02af70447d9f29566e01365d47
Max-Forwards: 70
From: "Marc" <sip:[email protected]>;tag=7ad1867f5eb84c0c9ef3d1b7a206201d
To: <sip:316********@10.2.0.20>;tag=b2d9eee1-3613-428f-bf26-5a7aeab35c50
Call-ID: d8bf1b6debf24631b13aa19802aac736
CSeq: 29369 ACK
Content-Length: 0
== Spawn extension (app-missedcall-hangup, s, 4) exited non-zero on 'PJSIP/DIDLogicTrunk-0000005d'
== Spawn extension (macro-dialout-trunk, s, 36) exited non-zero on 'PJSIP/100-0000005c' in macro 'dialout-trunk'
== Spawn extension (from-internal, 316********, 11) exited non-zero on 'PJSIP/100-0000005c'
<--- Transmitting SIP request (435 bytes) to UDP:185.118.63.77:5060 --->
CANCEL sip:316********@sip.nl.didlogic.net SIP/2.0
Via: SIP/2.0/UDP 185.52.***.***:5060;rport;branch=z9hG4bKPj5d5866c7-3c35-4200-ad83-6d944cce7cb6
From: <sip:3188*******@10.100.0.18>;tag=00b39610-6a82-4482-8561-e336e3b060ce
To: <sip:316********@sip.nl.didlogic.net>
Call-ID: 96d617ad-bd5e-4719-8a3f-cae340a3ef44
CSeq: 31084 CANCEL
Reason: Q.850;cause=127
Max-Forwards: 70
User-Agent: FPBX-16.0.33(18.16.0)
Content-Length: 0
<--- Received SIP response (401 bytes) from UDP:185.118.63.77:5060 --->
SIP/2.0 200 canceling
Via: SIP/2.0/UDP 185.52.***.***:5060;rport=32015;branch=z9hG4bKPj5d5866c7-3c35-4200-ad83-6d944cce7cb6;received=185.52.***.***
From: <sip:3188*******@10.100.0.18>;tag=00b39610-6a82-4482-8561-e336e3b060ce
To: <sip:316********@sip.nl.didlogic.net>;tag=a6a1c5f60faecf035a1ae5b6e96e979a-f921c88a
Call-ID: 96d617ad-bd5e-4719-8a3f-cae340a3ef44
CSeq: 31084 CANCEL
Content-Length: 0
<--- Received SIP response (515 bytes) from UDP:185.118.63.77:5060 --->
SIP/2.0 487 Request Terminated
Via: SIP/2.0/UDP 185.52.***.***:5060;received=185.52.***.***;rport=32015;branch=z9hG4bKPj5d5866c7-3c35-4200-ad83-6d944cce7cb6
From: <sip:3188*******@10.100.0.18>;tag=00b39610-6a82-4482-8561-e336e3b060ce
To: <sip:316********@sip.nl.didlogic.net>;tag=as2c7ce0c7
Call-ID: 96d617ad-bd5e-4719-8a3f-cae340a3ef44
CSeq: 31084 INVITE
Server: DID Logic MGW
Allow: INVITE, ACK, CANCEL, OPTIONS, BYE, REFER, SUBSCRIBE, NOTIFY, INFO, PUBLISH, MESSAGE
Supported: replaces
Content-Length: 0
<--- Transmitting SIP request (419 bytes) to UDP:185.118.63.77:5060 --->
ACK sip:316********@sip.nl.didlogic.net SIP/2.0
Via: SIP/2.0/UDP 185.52.***.***:5060;rport;branch=z9hG4bKPj5d5866c7-3c35-4200-ad83-6d944cce7cb6
From: <sip:3188*******@10.100.0.18>;tag=00b39610-6a82-4482-8561-e336e3b060ce
To: <sip:316********@sip.nl.didlogic.net>;tag=as2c7ce0c7
Call-ID: 96d617ad-bd5e-4719-8a3f-cae340a3ef44
CSeq: 31084 ACK
Max-Forwards: 70
User-Agent: FPBX-16.0.33(18.16.0)
Content-Length: 0
== Spawn extension (macro-hangupcall, s, 5) exited non-zero on 'PJSIP/100-0000005c' in macro 'hangupcall'
== Spawn extension (from-internal, h, 1) exited non-zero on 'PJSIP/100-0000005c'
== Spawn extension (from-internal, h, 1) exited non-zero on 'PJSIP/100-0000005c'
<--- Transmitting SIP request (414 bytes) to UDP:10.100.0.1:60400 --->
OPTIONS sip:[email protected]:60400;ob SIP/2.0
Via: SIP/2.0/UDP 10.2.0.20:5060;rport;branch=z9hG4bKPj2819f416-eb71-49df-ae12-4cb14a2e6fdc
From: <sip:[email protected]>;tag=3922e9c6-c34d-4d56-8ffc-fe91c1a03b84
To: <sip:[email protected];ob>
Contact: <sip:[email protected]:5060>
Call-ID: 656711e5-be13-4bb1-90f4-e207ccb9a790
CSeq: 18617 OPTIONS
Max-Forwards: 70
User-Agent: FPBX-16.0.33(18.16.0)
Content-Length: 0
<--- Received SIP response (786 bytes) from UDP:10.100.0.1:60400 --->
SIP/2.0 200 OK
Via: SIP/2.0/UDP 10.2.0.20:5060;rport=5060;received=10.2.0.20;branch=z9hG4bKPj2819f416-eb71-49df-ae12-4cb14a2e6fdc
Call-ID: 656711e5-be13-4bb1-90f4-e207ccb9a790
From: <sip:[email protected]>;tag=3922e9c6-c34d-4d56-8ffc-fe91c1a03b84
To: <sip:[email protected];ob>;tag=z9hG4bKPj2819f416-eb71-49df-ae12-4cb14a2e6fdc
CSeq: 18617 OPTIONS
Allow: PRACK, INVITE, ACK, BYE, CANCEL, UPDATE, INFO, SUBSCRIBE, NOTIFY, REFER, MESSAGE, OPTIONS
Accept: application/sdp, application/pidf+xml, application/xpidf+xml, application/simple-message-summary, message/sipfrag;version=2.0, application/im-iscomposing+xml, text/plain
Supported: replaces, 100rel, timer, norefersub, trickle-ice
Allow-Events: presence, message-summary, refer
User-Agent: MicroSIP/3.21.3
Content-Length: 0

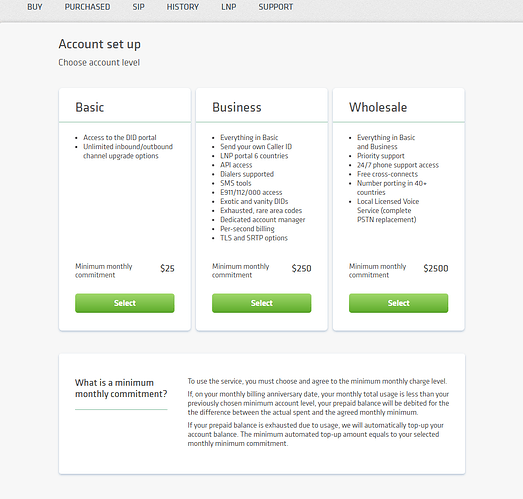

The only documentation I have from my provider seems to be pretty outdated (at least 4 years old): (I can’t post the link, but I use DID Logic)
