New DID registration issue FlowRoute

FreePBX Providers
1

Elastix 2.4 using FreePBX 2.8 / Asterix 1.8
When a call is made it is seen on FlowRoute side as DID is registering however phone goes silent after pickup. I think it maybe an issue with RTP audio but I am not sure. I am new here and just trying to get this DID to work.

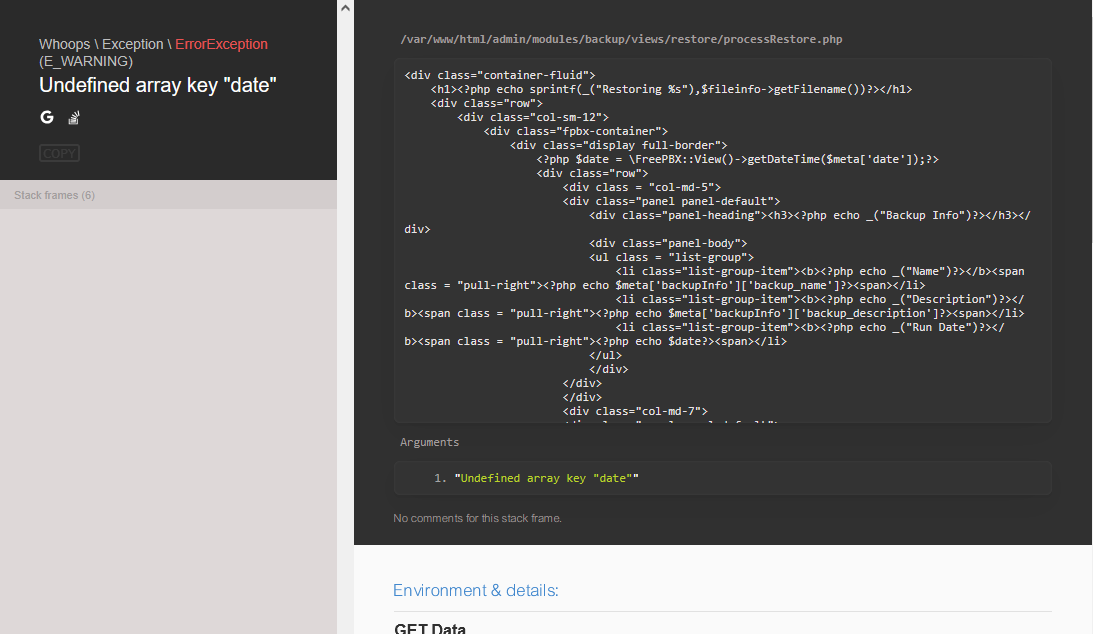

Also tried upgrading/restoring system files to fresh install of FreePBX v17 but keep getting the following error:

image1093×634 33.2 KB

“Undefined array key “date””

After attempting that I am now getting an error message from the fresh install of FreePBX stating: “Ajax request broken or aborted for an unexpected reason. Please check console logs for more details.”

Since that error message I am no longer able to access the server via SSH.

2

Inside CLI I am getting this:

— (13 headers 0 lines) —

– Executing [s@from-sip-external:7] Wait(“SIP/fl.gg-00000341”, “2”) in new stack

– Executing [s@from-sip-external:8] Playback(“SIP/fl.gg-00000341”, “ss-noservice”) in new stack

– <SIP/fl.gg-00000341> Playing ‘ss-noservice.gsm’ (language ‘en’)

This is not the full message but I was unable to post it due to 2 link limit for new users

3

You should mark it up as pre-formatted text, using the </> button

4

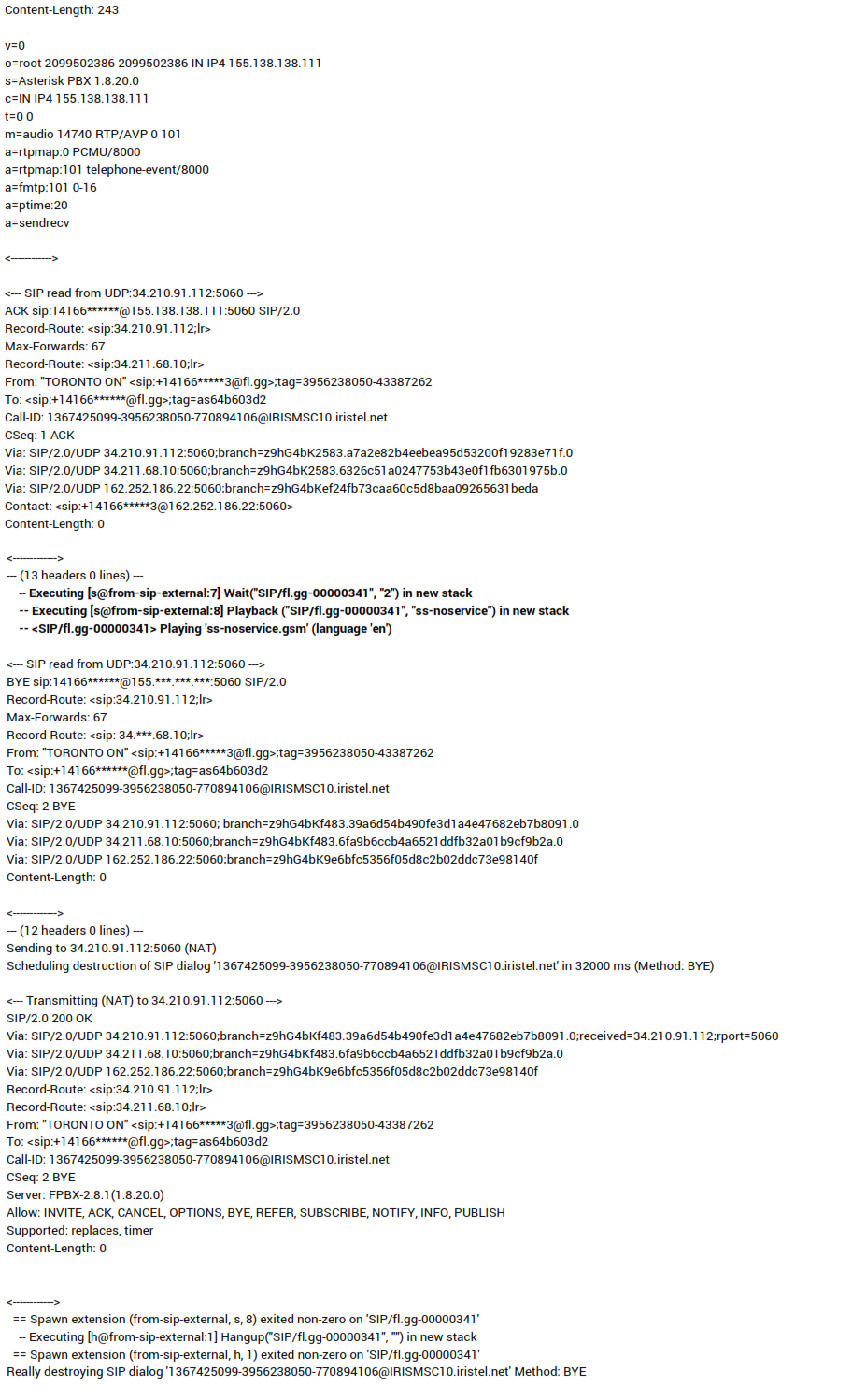

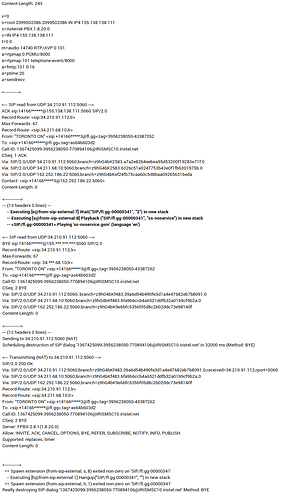

Here is the full CLI report on an inbound call to the new DID.

CLI Log May 15-25-b
CLI Log May 15-25-b912×1498 242 KB

5

Check that Match (Permit) for the trunk includes all addresses from which FlowRoute can send calls. See

6

The issue of registration has been resolved, however I still cannot figure out why I keep getting a Restore error when trying to restore FreePBX v2.8 to v17.

Error: “Undefined array key “date””
