Digium Wildcard TE133F UK BT ISDN 30 E1 configuration

londonnet · June 7, 2015, 12:31am

Hi. I am installing a free PBX using a Digium Wildcard TE 133F card and the latest version of FreePBX. The card is auto detected in dahdi config the card shows up as a Digium Wildcard TE131/TE133 card 0 [1]

However the settings for this card are set by default as a T1 and not as E1 as required for UK BT ISDN30

The closest matching card I can see in Modprobe Settings is the wcte13xp however the config options for this card look they are for a FXS card and not a PRI card.

If I set this to UK etc save the settings and reboot the card is not longer listed for further configuration.

Can somone tell me what the correct way is to configure a Digium Wildcard TE 133F is for the UK and more specificaly for a BT ISDN30 PRI E1?

Many thanks

dicko · June 7, 2015, 2:01am

http://kb.digium.com/articles/Configuration/How-to-Install-and-Configure-a-Digium-TE13x-Single-Span-T1-E1-Card

londonnet · June 7, 2015, 2:37am

Thanks for the reply.

The issue is /etc/modprobe.d/dahdi.conf is overwritten by freepbx

-----------------------------------------------------------------------------$

Do NOT edit this file as it is auto-generated by FreePBX. All modifications t$

this file must be done via the web gui. There are alternative files to make $

custom modifications, details at: http://freepbx.org/configuration_files $

-----------------------------------------------------------------------------$

I am expecting modprobe wcte13xp default_linemode=e1 is set in the GUI of freepbx somewere.

How do you set the card to be e1 in freepbx if the config file is overwriten by the gui?

Thanks

dicko · June 7, 2015, 2:43am

Then you need an answer from someone that uses the dahdi helper module.
Sorry

londonnet · June 7, 2015, 1:48pm

anyone know how to set digium TE133 cards to E1 config in FreePBX when FreePBX overwrites the config files?

Thanks

londonnet · June 7, 2015, 5:16pm

Message from Digium

“Ok, the only way I have found to keep freepbx from overwriting the files is to disable the dahdi module in freepbx. Unfortunatly I do not know how that is done because we dont support freepbx itself, just Asterisk. You may need to contact freepbx but this is the only solution I have heard of.”

simoneng69 · June 11, 2015, 11:06pm

Under “Connectivity” go to “DAHDI Config”.
On the far right there is a “Settings” area. Choose “Modprobe Settings”.
In the box that appears, there should be a selection for “wcte13xp” in the “Module Name” dropdown.
At the very bottom, “Other Modprobe Settings” add “default_linemode” = "e1"
Set “Opermode” equal to “UK”

That will make FreePBX always find the card as an E1. Ask me how I know

simoneng69 · June 11, 2015, 11:07pm

You should also set the tone settings to “UK”.

londonnet · June 12, 2015, 12:14pm

How do you know?

I think I tried this but when I do that the card is removed from the list of available devices to configure. Do you have the exact same card?
Do you have a good config for connecting to a BT ISDN30?

Thanks

simoneng69 · June 12, 2015, 12:21pm

I just went through the exact same issues about a month ago. Yes, connected a TE133 to a BT ISDN30e. At one point, I the card disappeared completely from the hardware configuration and it took me a bit to figure out how to get it to re-discover without re-installing the whole damn server. I’ll look at it in a bit and try to come back to you today.

simoneng69 · June 12, 2015, 12:28pm

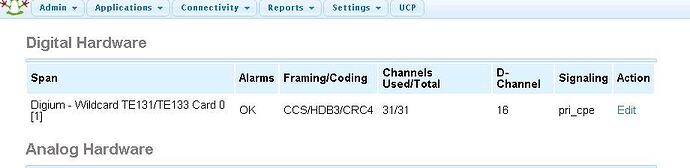

This is how I have mine configured.

londonnet · June 12, 2015, 1:49pm

Many thanks for this. Much appreciated. I’ll give this a go over the weekend.

Cheers

londonnet · June 15, 2015, 5:10pm

Yes tried this and it looks a lot better.

How have you configured the card to use it with a BT ISDN 30 with only 8 channels active?

Thanks

simoneng69 · June 19, 2015, 8:32pm

Yes, well, actually 10. You can just create a separate group with the first 8 channels in your case, and then busy out the second group that has the remaining channels. Only use group 1 in your outbound and you should be good.

londonnet · June 21, 2015, 4:54pm

OK so If you have 10 active channels you put the first 10 in group 0 and the rest in group 1 excluding channel 16.

I have filled out the config but dahdi won’t load. I get the following error message in the asterisk console

-- Remote UNIX connection

[2015-06-21 16:28:15] WARNING[2901]: loader.c:607 ast_unload_resource: Unload failed, ‘chan_dahdi.so’ is not loaded.
– Remote UNIX connection disconnected
– Remote UNIX connection
[2015-06-21 16:28:15] WARNING[2903]: pbx.c:7327 ast_register_application2: Already have an application ‘DAHDISendKeypadFacility’
[2015-06-21 16:28:15] WARNING[2903]: pbx.c:7327 ast_register_application2: Already have an application ‘DAHDISendCallreroutingFacility’
– Registered libwat
== Parsing ‘/etc/asterisk/chan_dahdi.conf’: Found
== Parsing ‘/etc/asterisk/chan_dahdi_general.conf’: Found
== Parsing ‘/etc/asterisk/chan_dahdi_general_custom.conf’: Found
== Parsing ‘/etc/asterisk/chan_dahdi_channels_custom.conf’: Found
== Parsing ‘/etc/asterisk/chan_dahdi_groups.conf’: Found
== Parsing ‘/etc/asterisk/chan_dahdi_additional.conf’: Found
[2015-06-21 16:28:15] WARNING[2903]: chan_dahdi.c:4774 dahdi_open: Unable to specify channel 1: No such device or address
[2015-06-21 16:28:15] ERROR[2903]: chan_dahdi.c:13123 mkintf: Unable to open channel 1: No such device or address
here = 0, tmp->channel = 1, channel = 1
[2015-06-21 16:28:15] ERROR[2903]: chan_dahdi.c:18109 build_channels: Unable to register channel ‘1-10’
– Remote UNIX connection disconnected

Any thoughts?

Thanks
