Calls not conecting

FreePBX Endpoints
21

Various Configs - FreePbx, Inbound Routes part 1

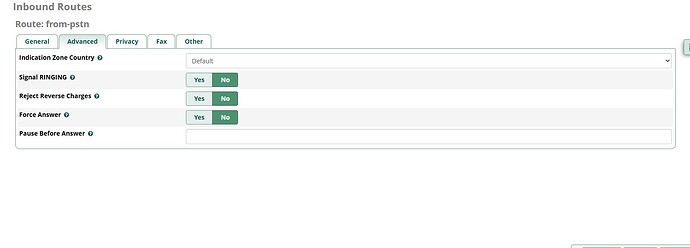

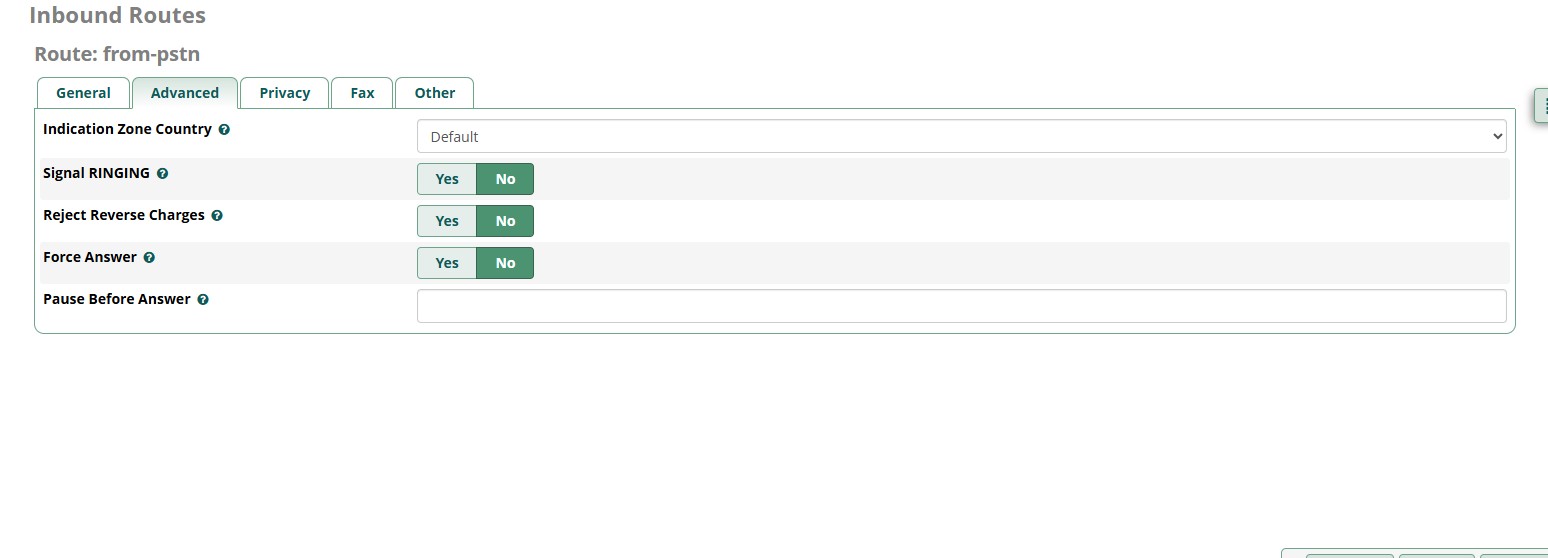

Advanced
Advanced1548×558 47.6 KB

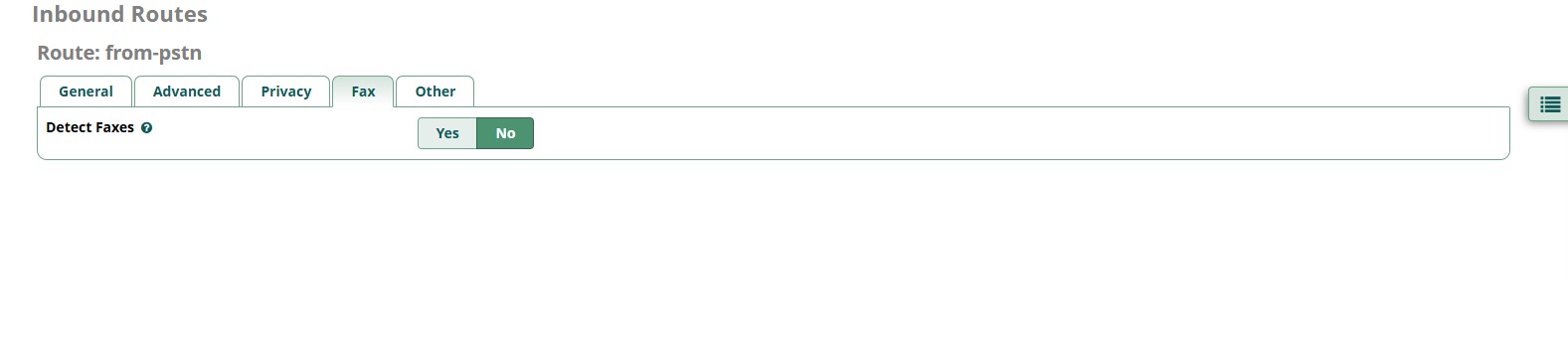

FAX
FAX1577×363 22.9 KB

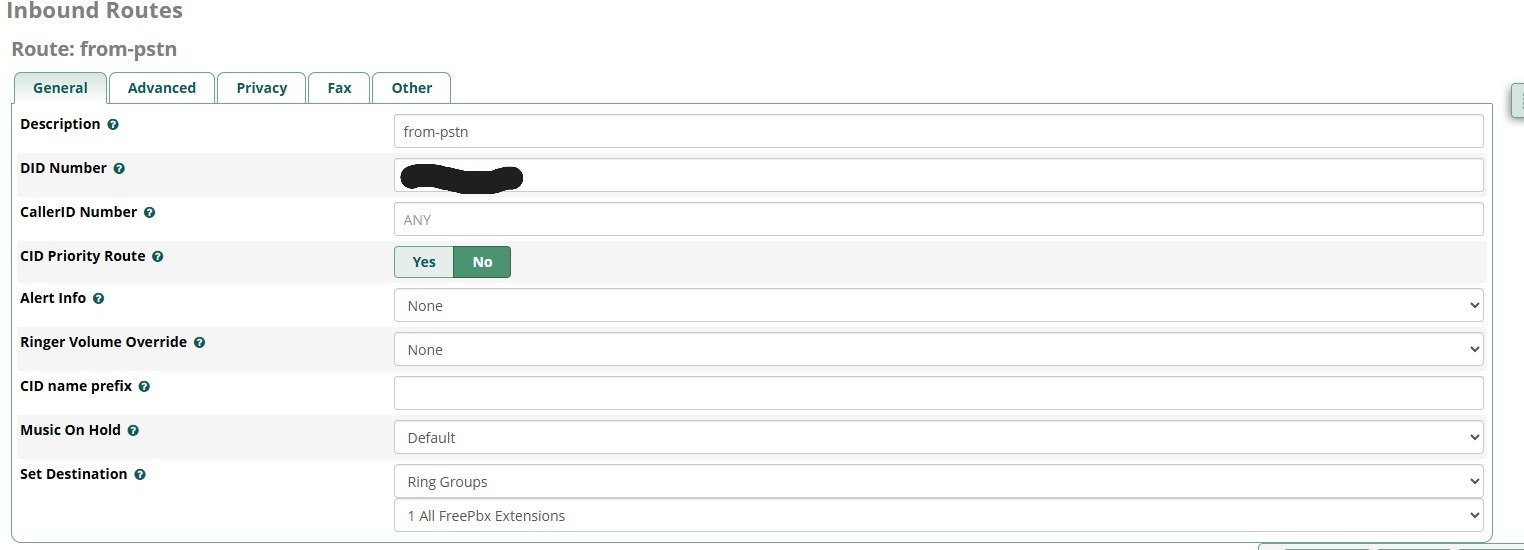

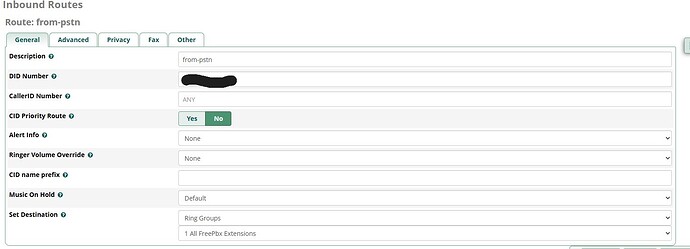

General
General1524×550 79.7 KB

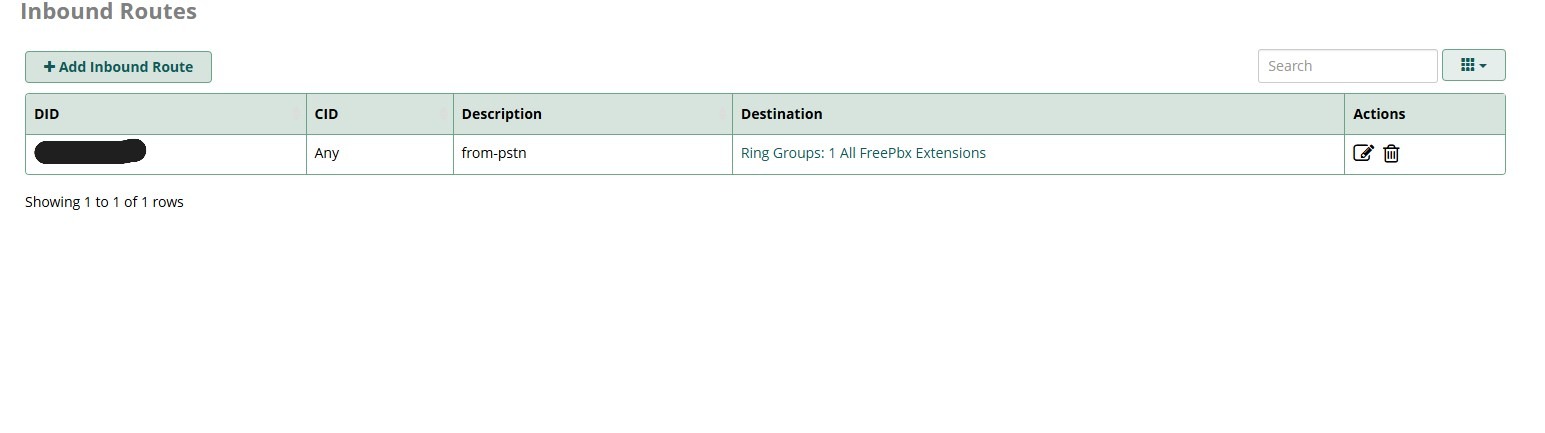

Inbound Routes
Inbound Routes1545×433 34.1 KB

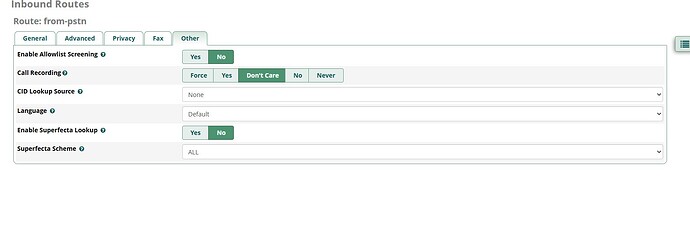

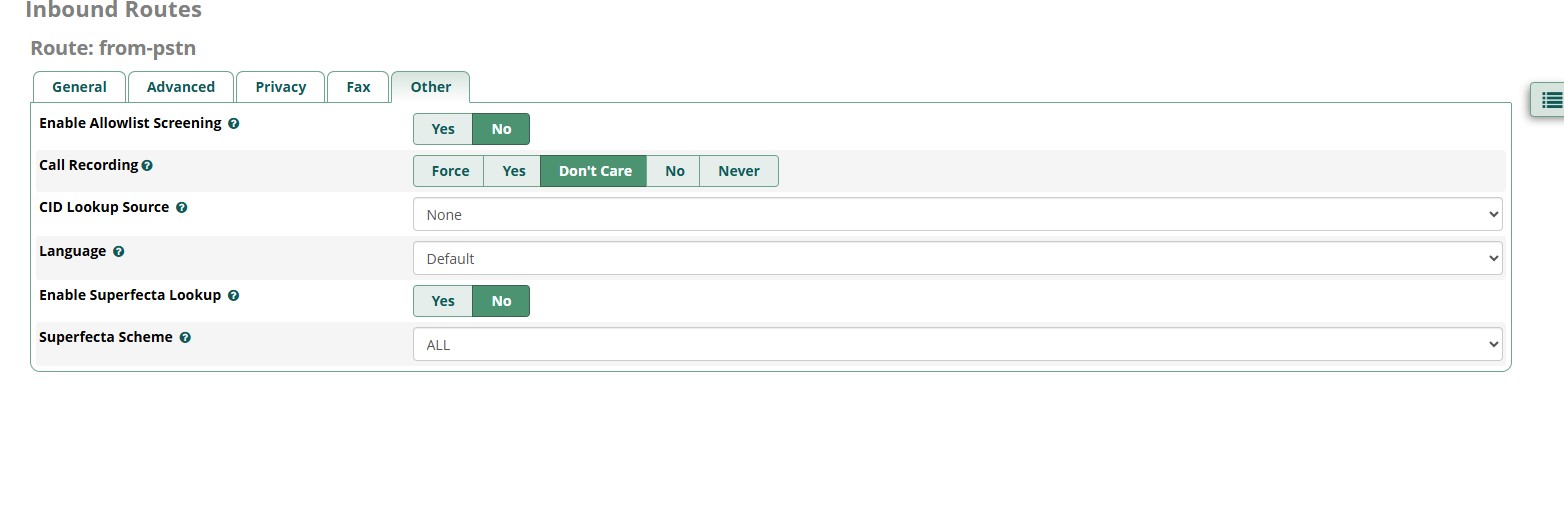

Other
Other1564×526 54.3 KB

22

Various Configs - FreePbx, Inbound Routes part 2

Outbound Routes
Outbound Routes1552×553 38.2 KB

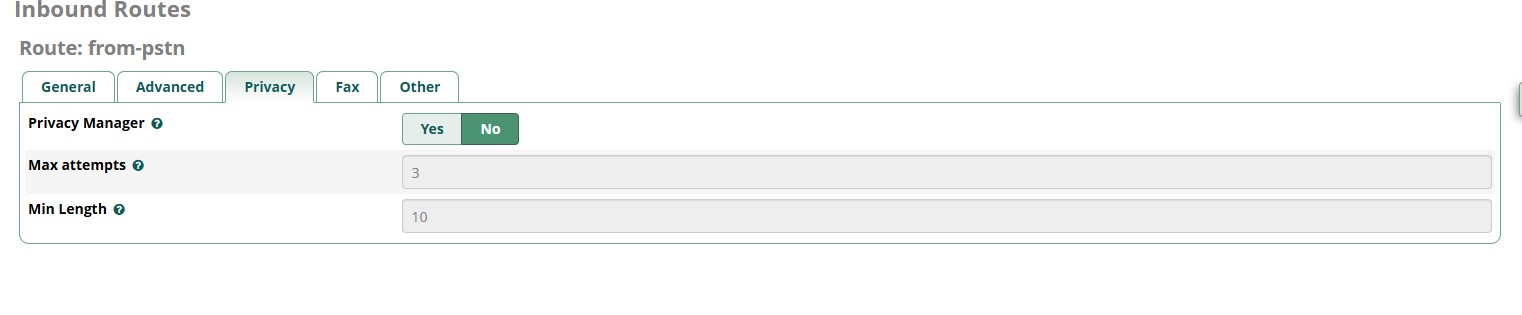

Privacy
Privacy1522×315 32.4 KB

23

Various Configs - FreePbx, Outbound Routes part 1;

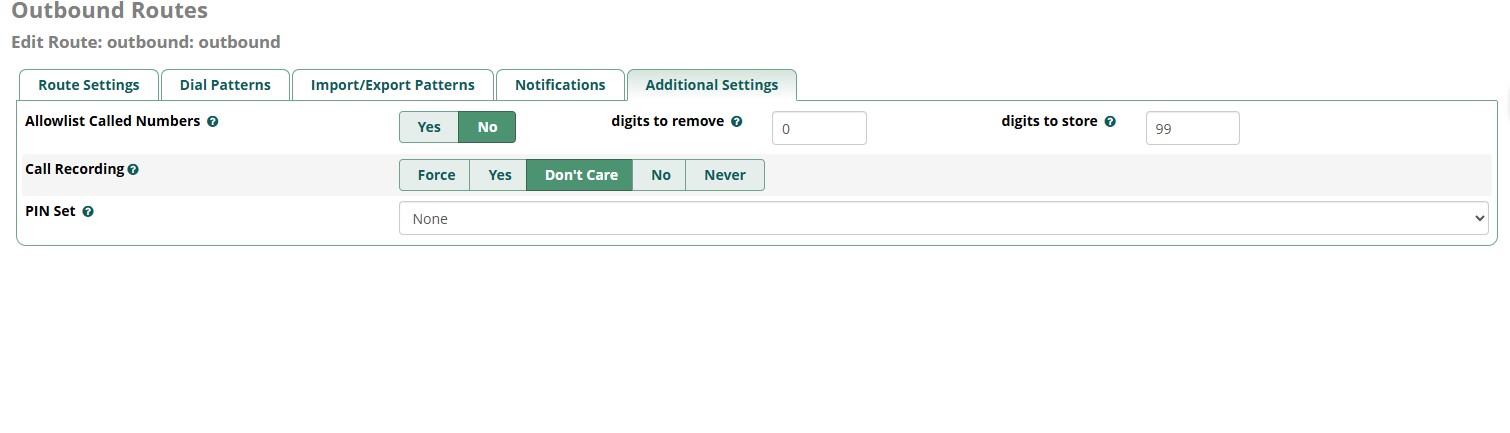

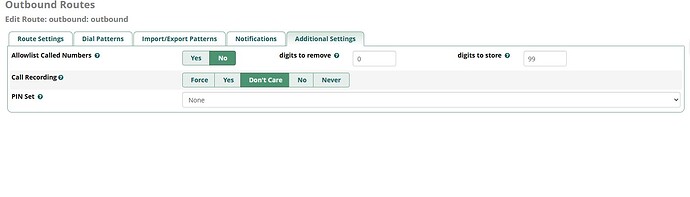

Additional Settings
Additional Settings1510×433 48 KB

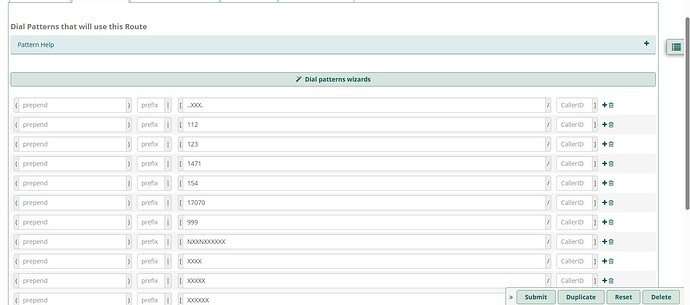

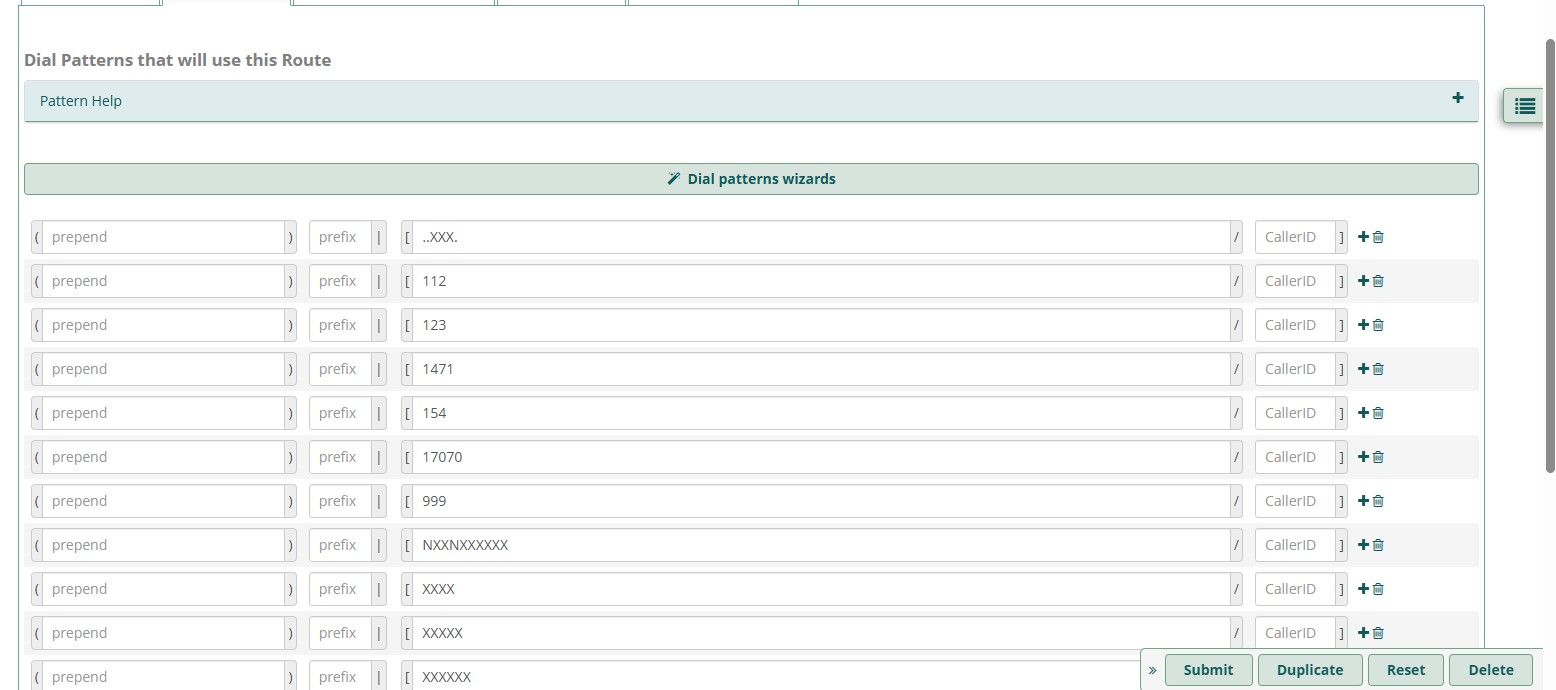

Dial Patterns
Dial Patterns1556×690 111 KB

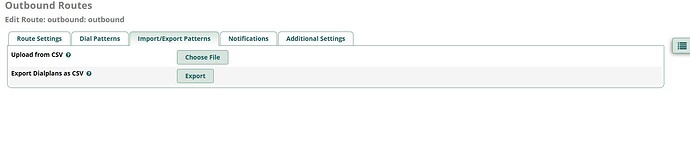

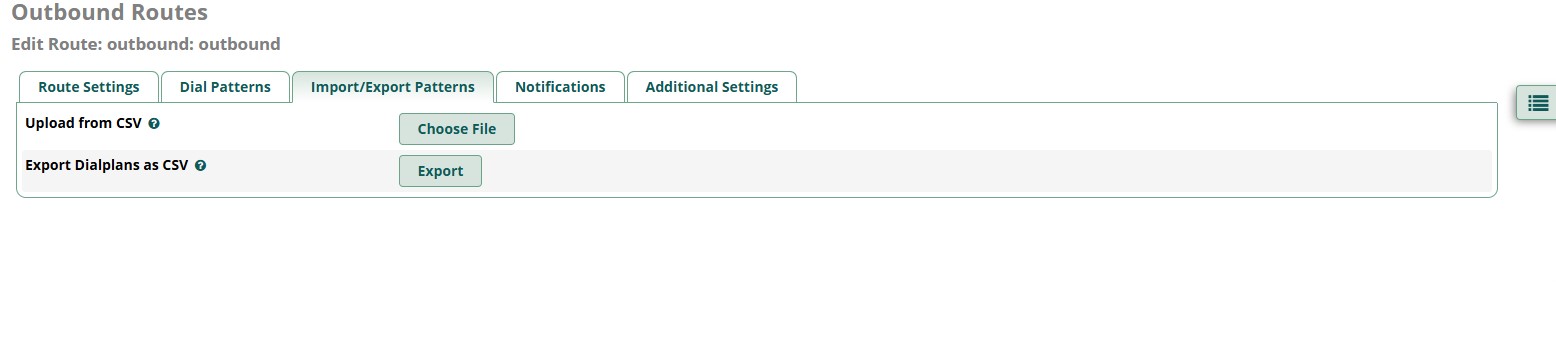

Inport Export Patterns
Inport Export Patterns1556×342 33.7 KB

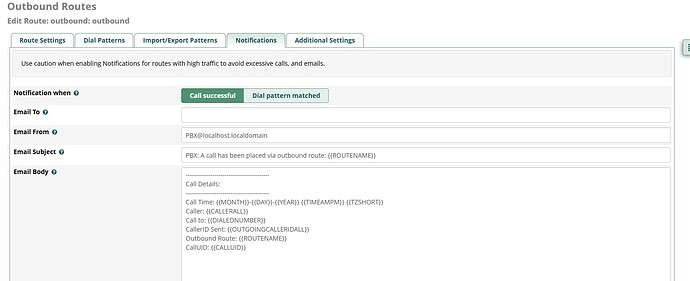

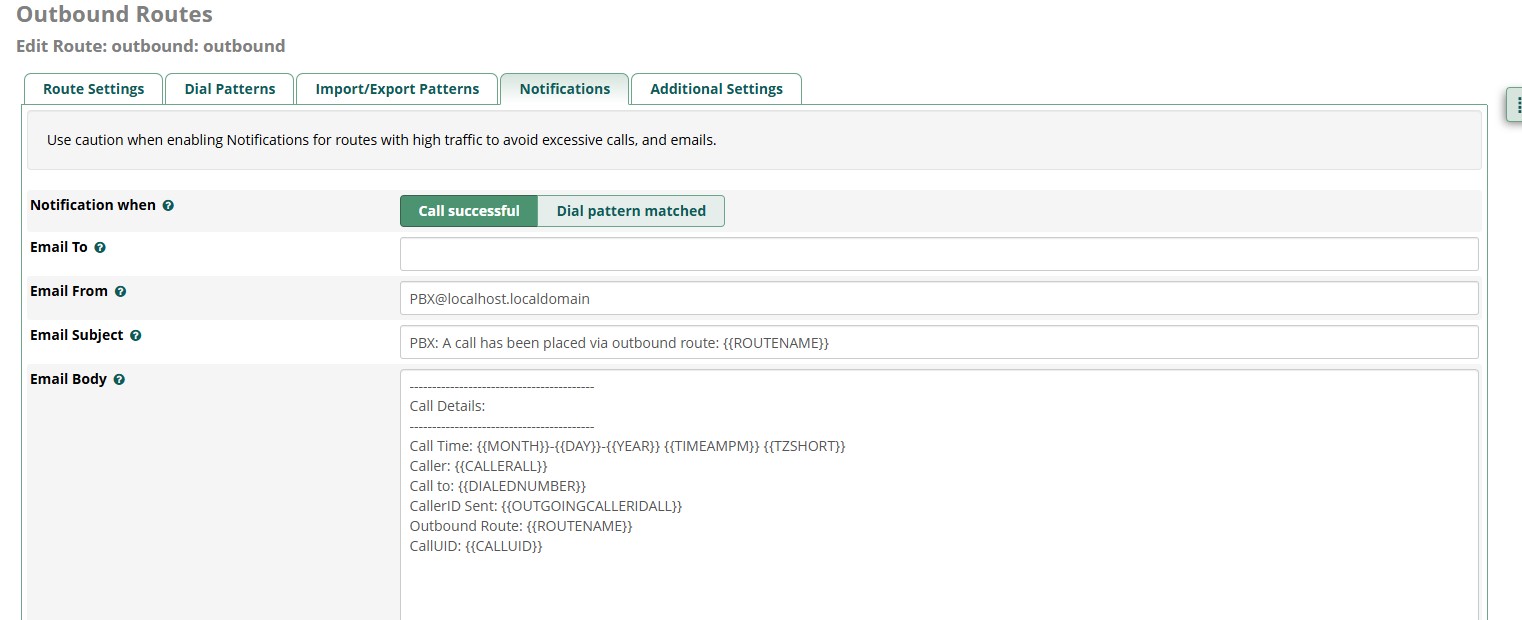

Notifications
Notifications1522×620 89.3 KB

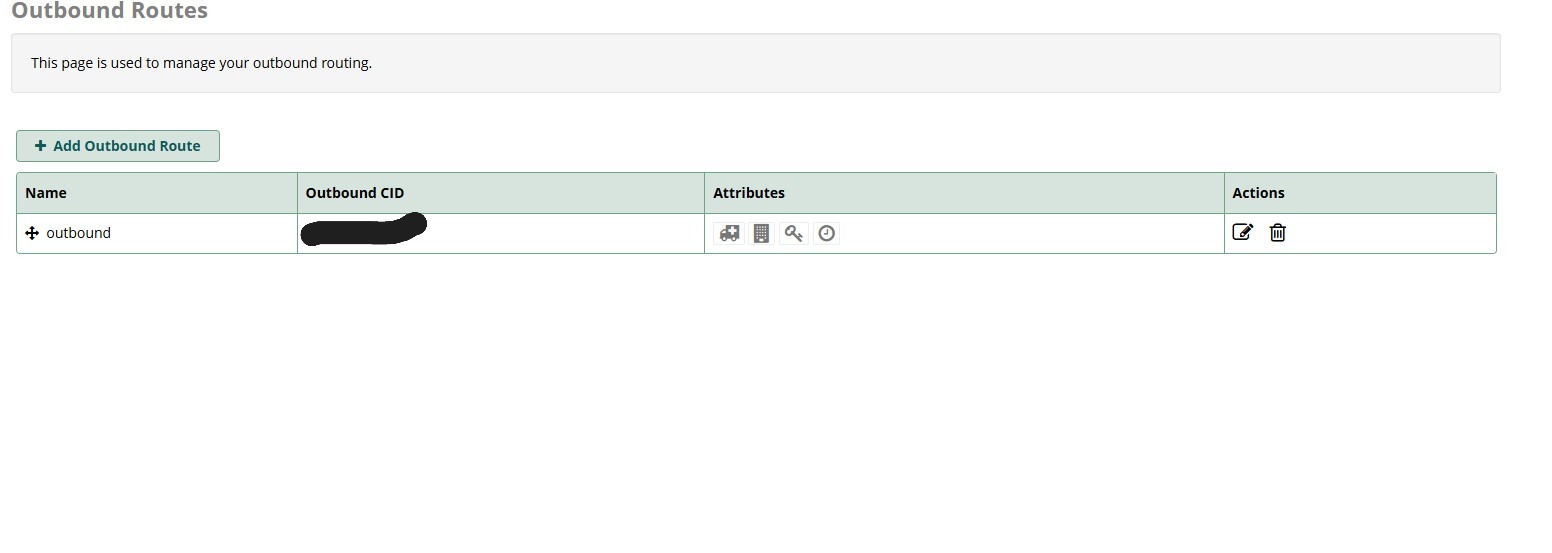

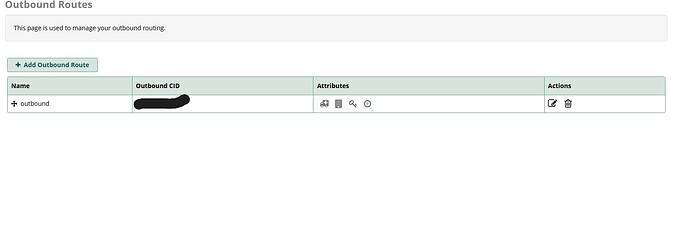

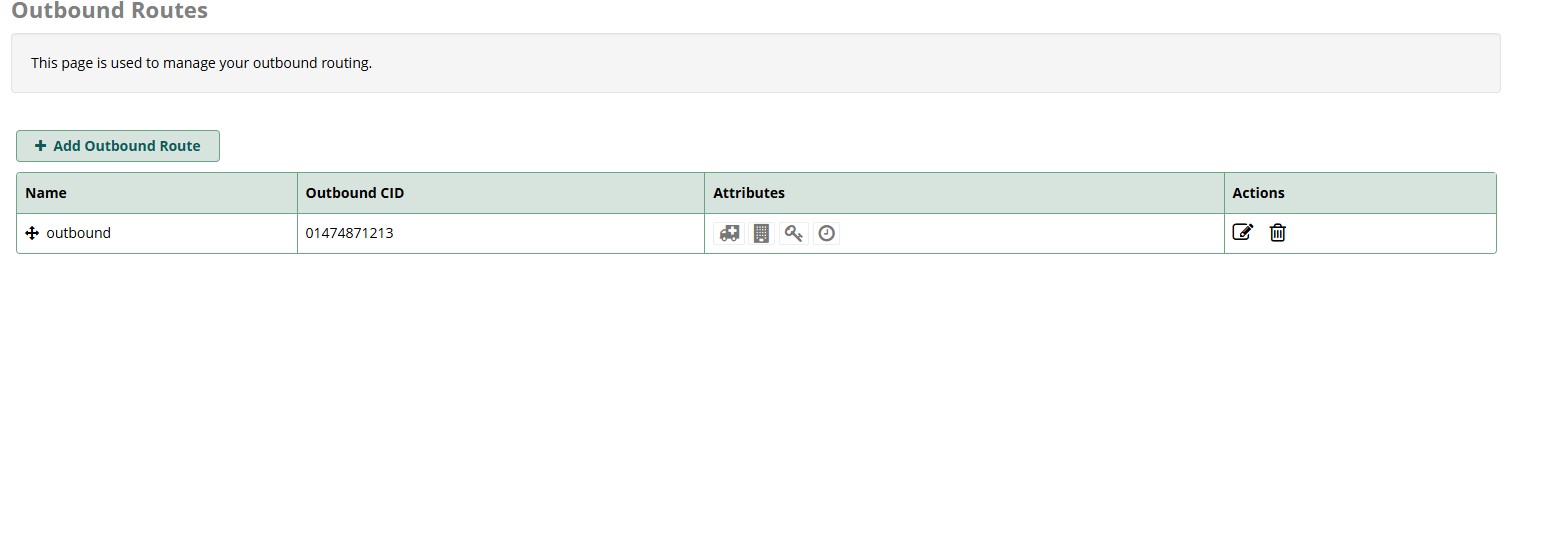

Outbound Routes
Outbound Routes1552×553 37.1 KB

24

Various Configs - FreePbx, Inbound Routes part 2;

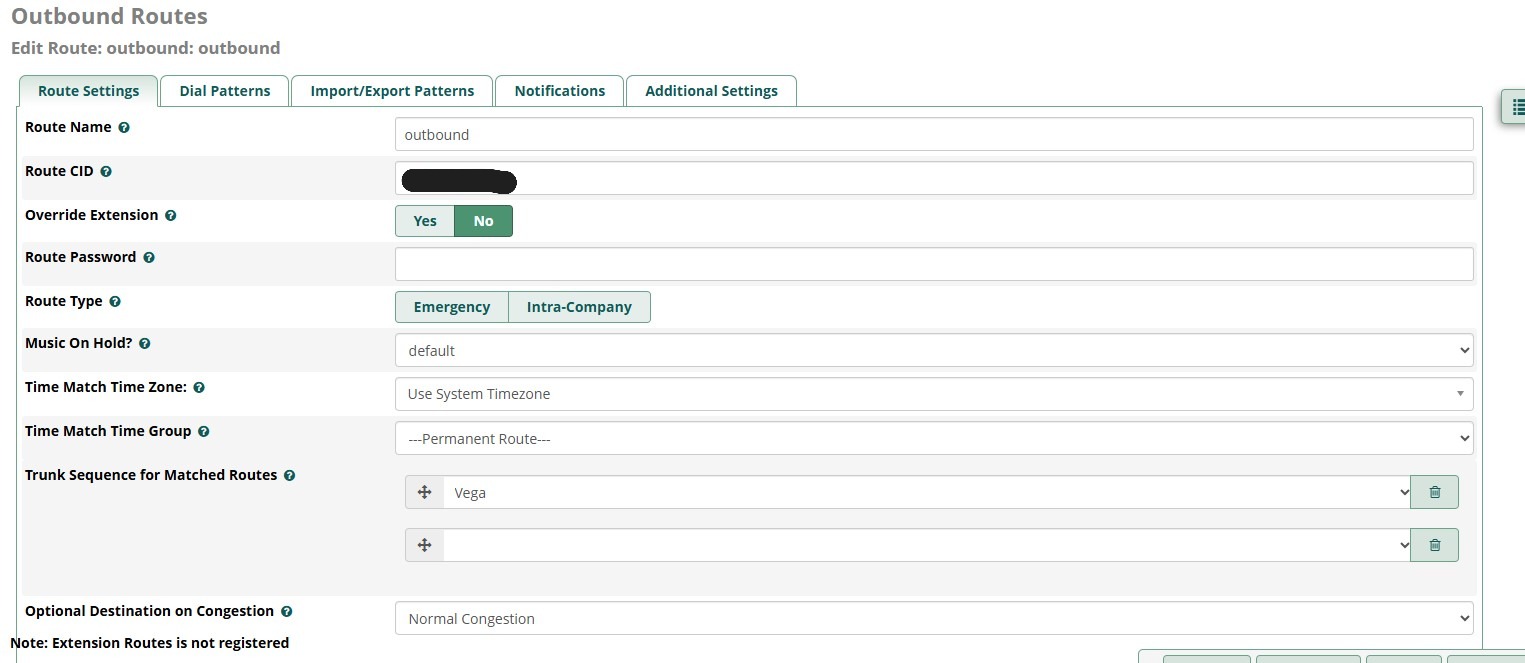

Route Settings
Route Settings1525×663 94.8 KB

25

Various Configs - FreePbx, Trunk

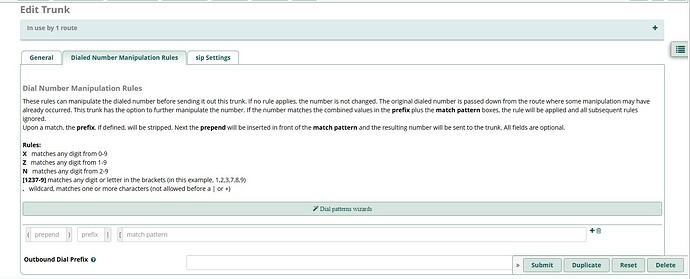

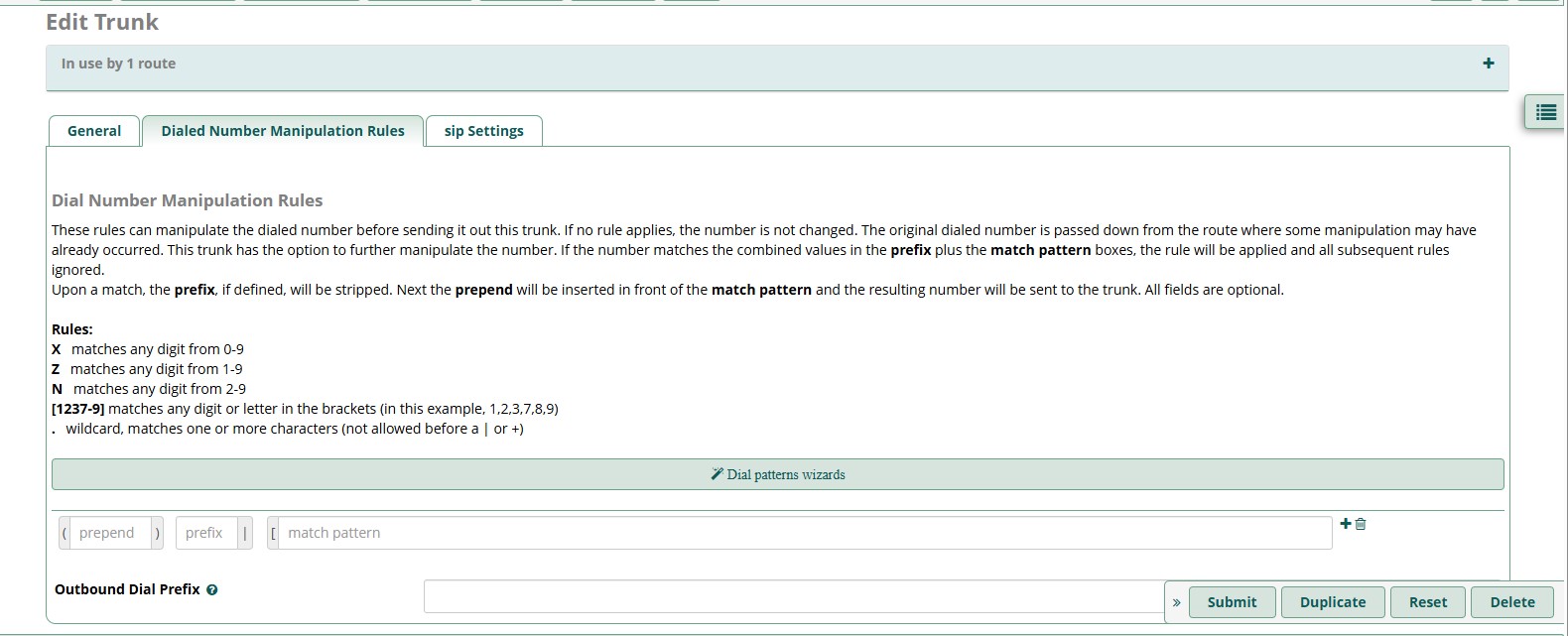

Dialed Number etc
Dialed Number etc1580×641 142 KB

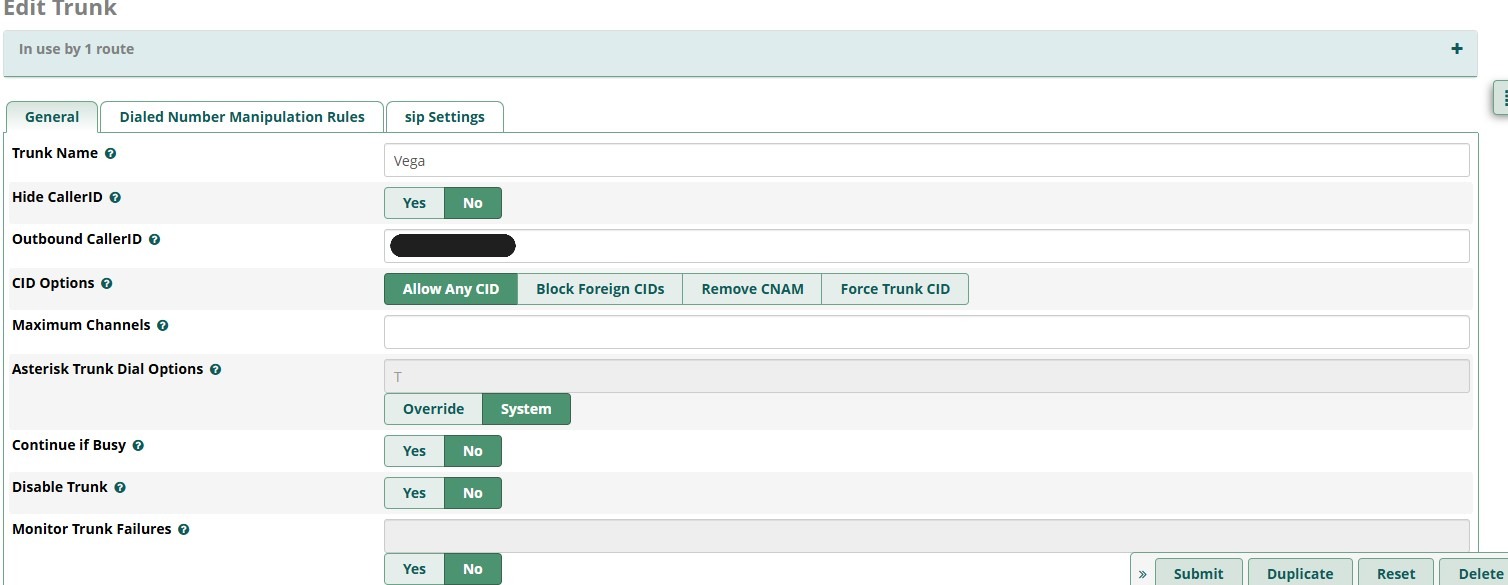

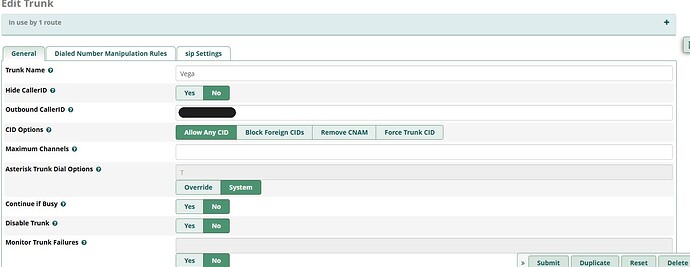

General
General1508×585 85.3 KB

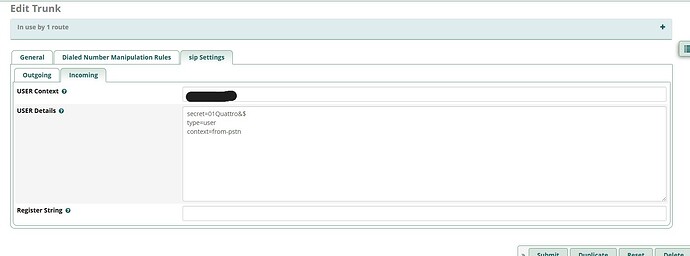

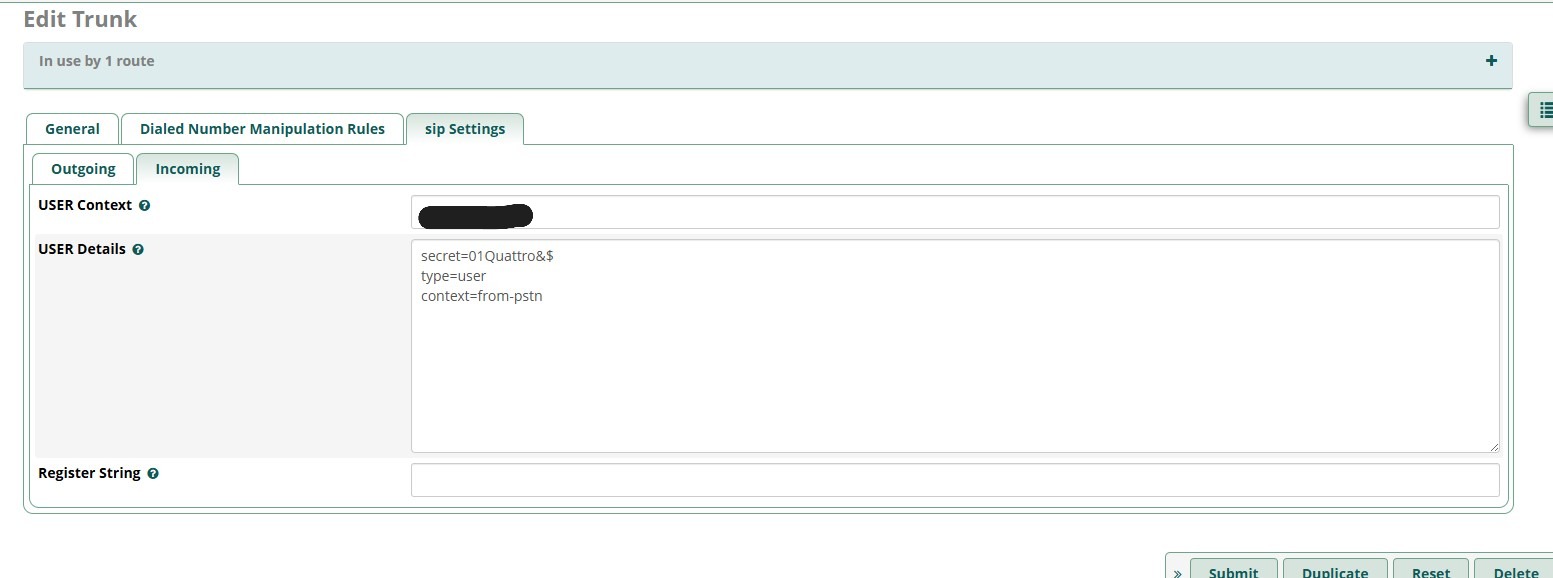

SIP Settings Incoming
SIP Settings Incoming1553×578 66.9 KB

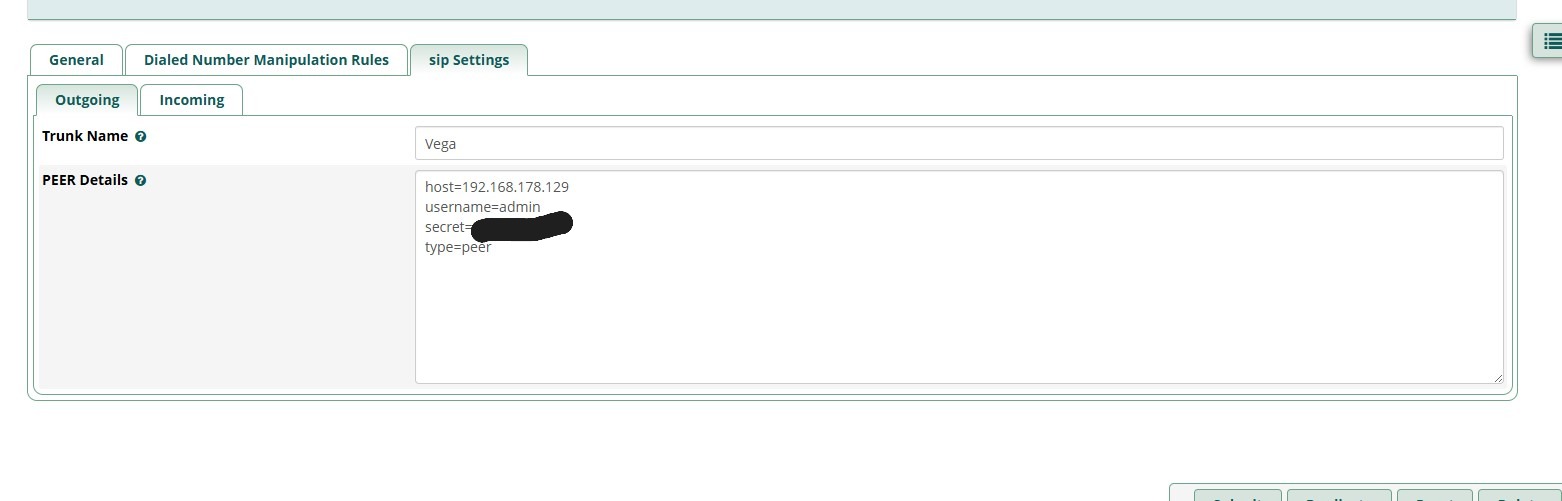

SIP Settings Outgoing
SIP Settings Outgoing1562×501 51.6 KB

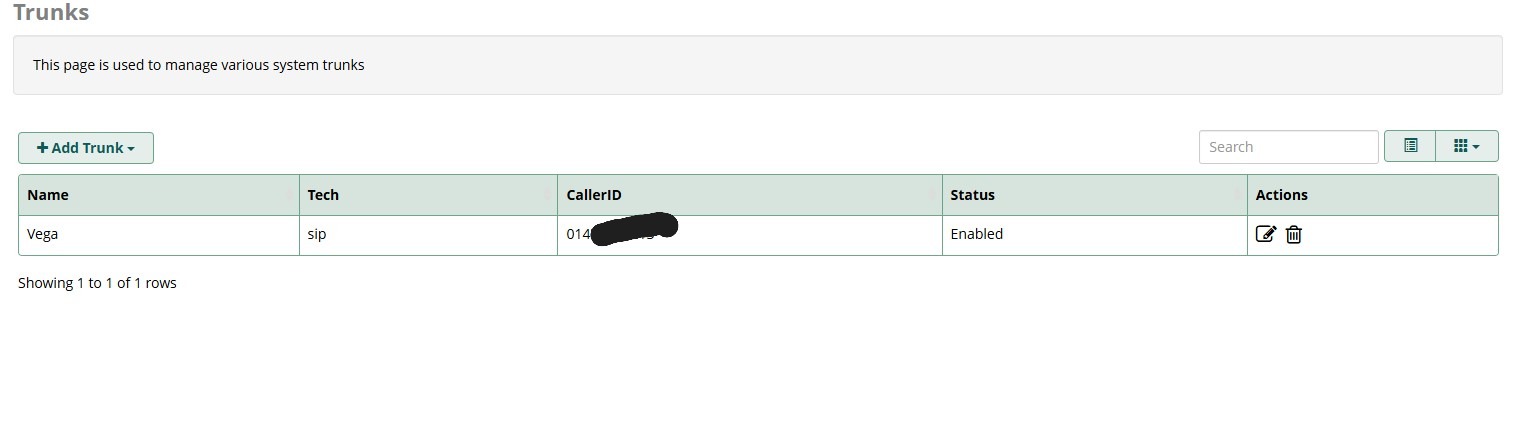

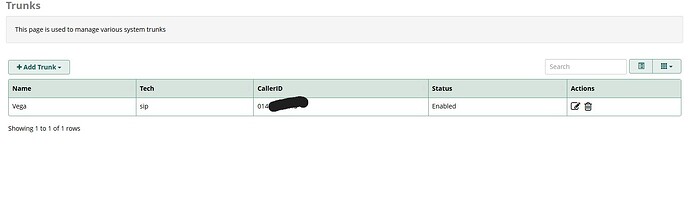

Trunks
Trunks1518×434 37 KB

26

Various Configs - FreePbx, Vega Management Settings part 1;

FXO part 2
FXO part 21530×589 96.3 KB

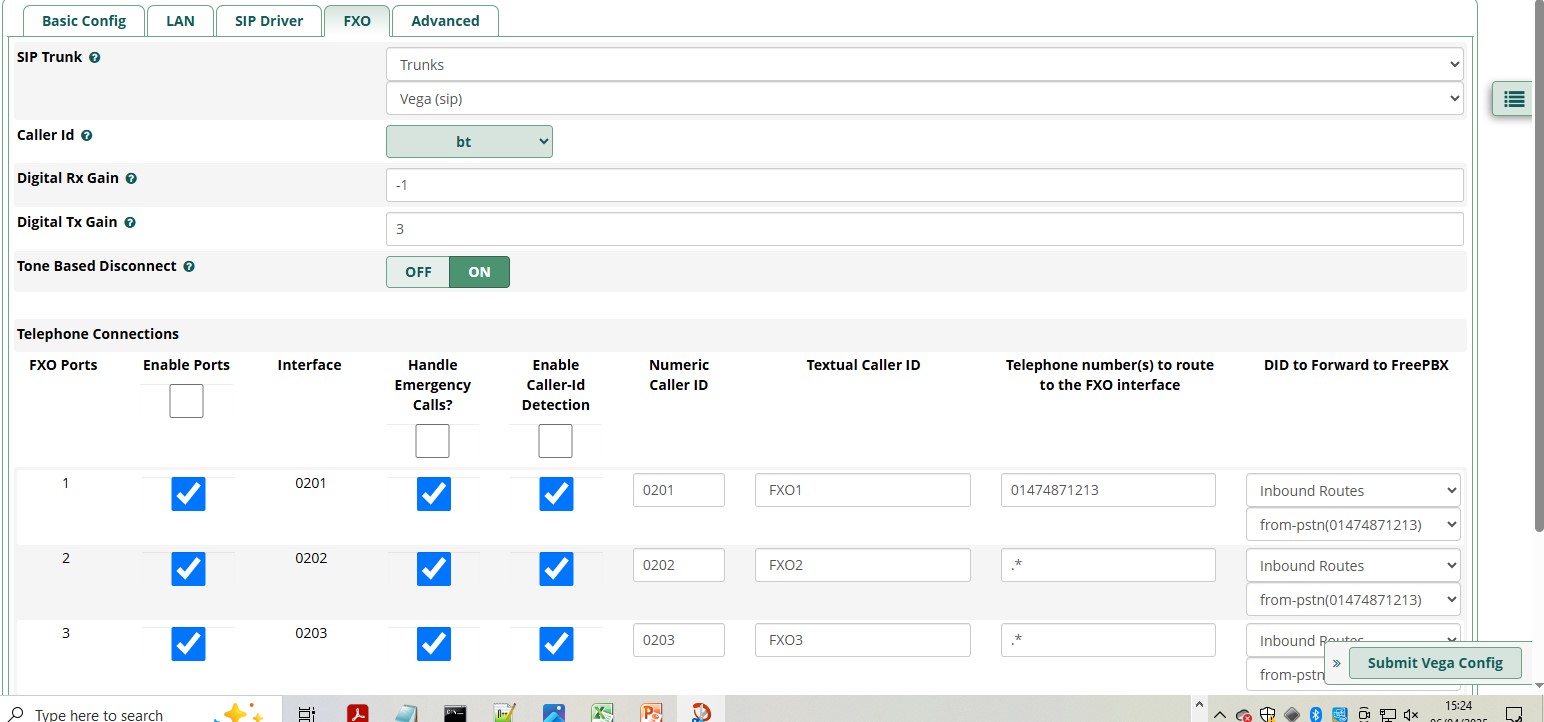

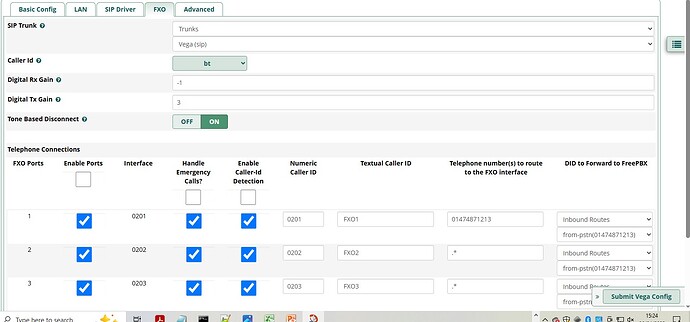

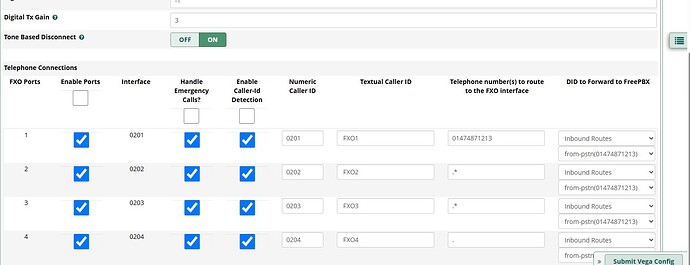

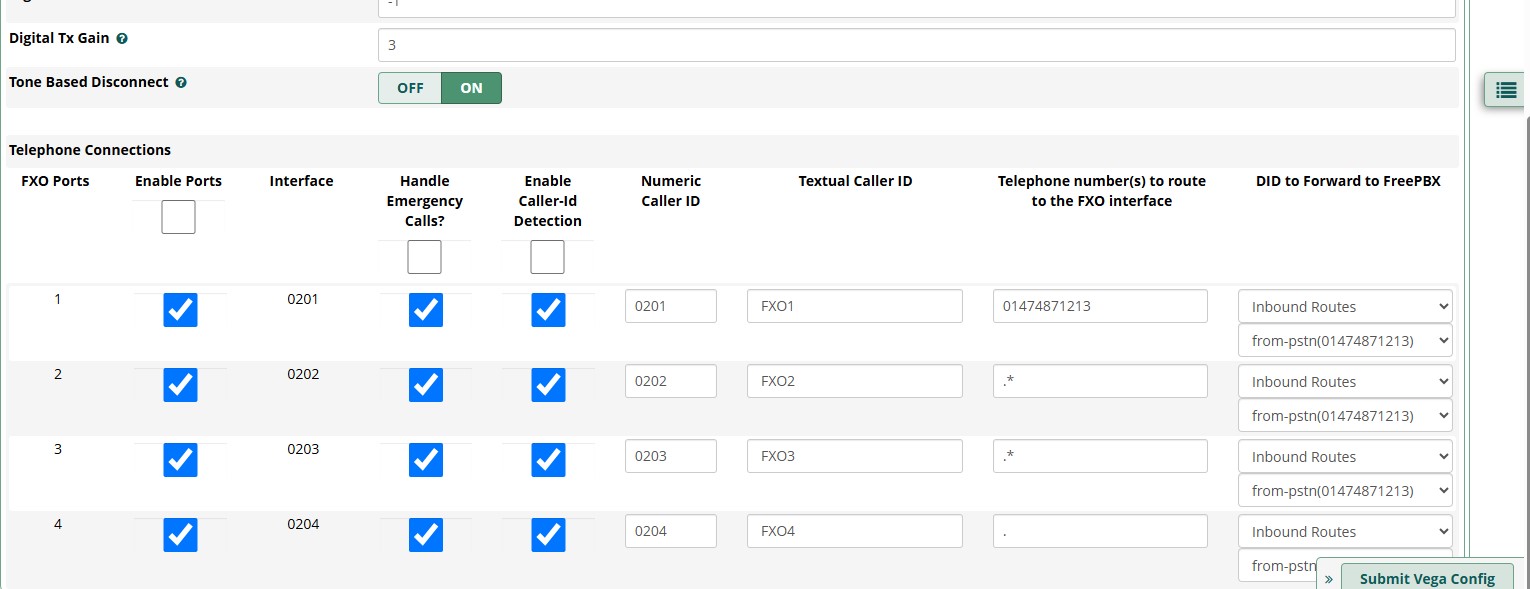

FXO
FXO1544×722 124 KB

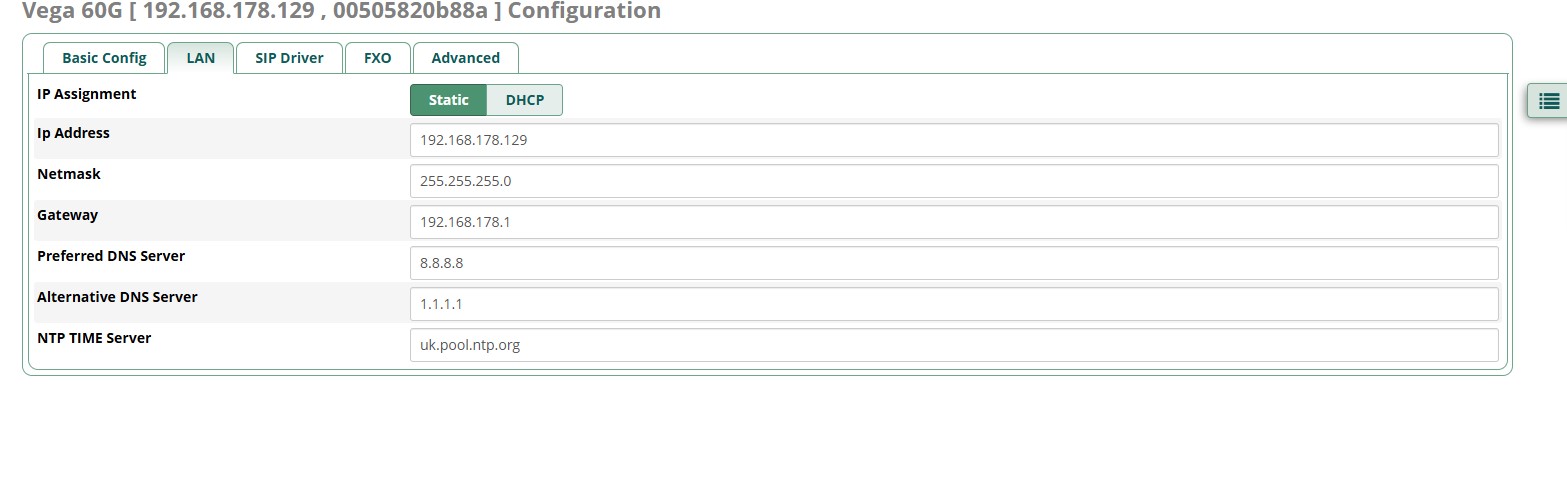

LAN
LAN1567×487 67.9 KB

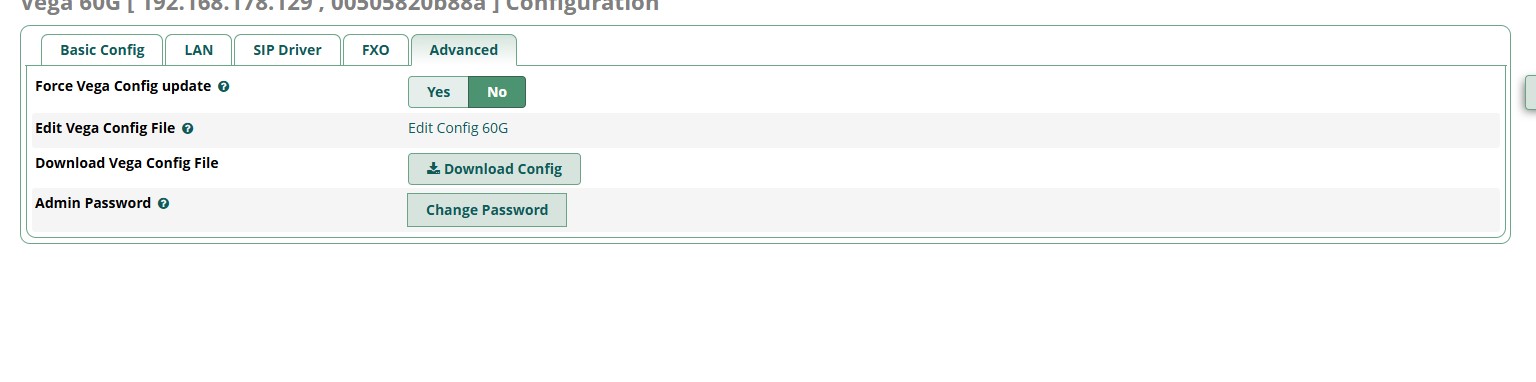

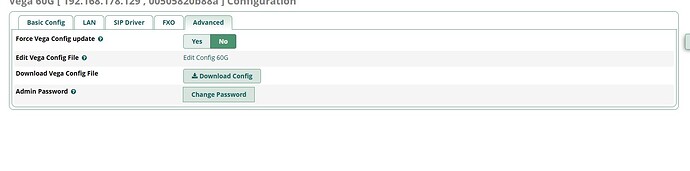

Advanced
Advanced1536×382 46.5 KB

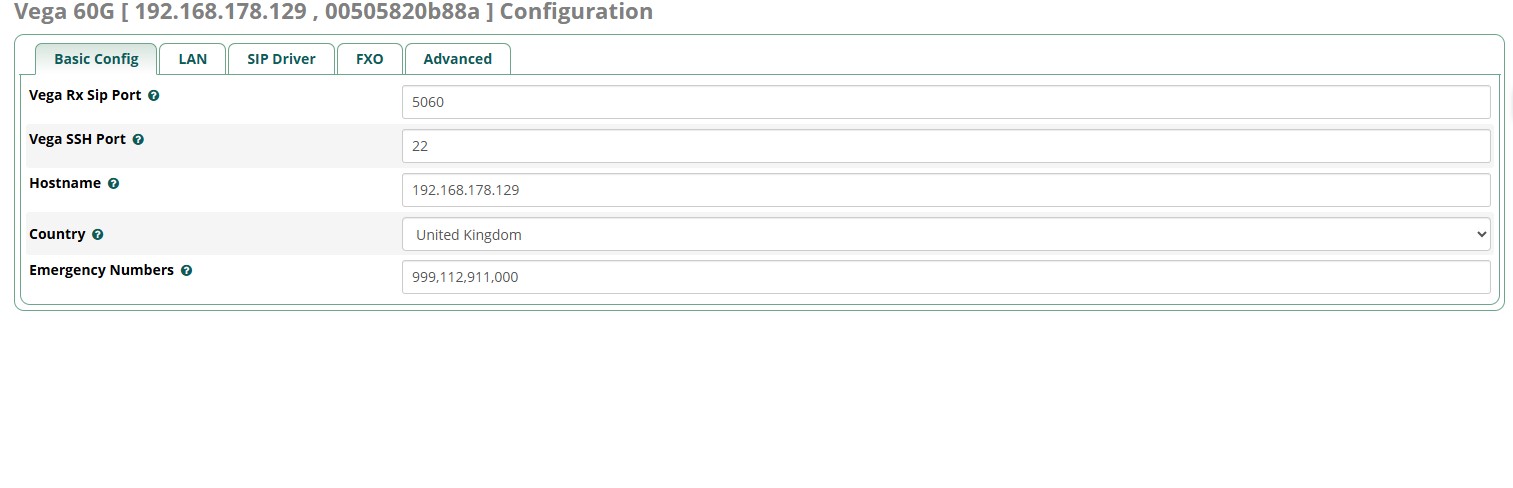

Basic Config
Basic Config1513×488 56.6 KB

27

Various Configs - FreePbx, Vega Management Settings part 2;

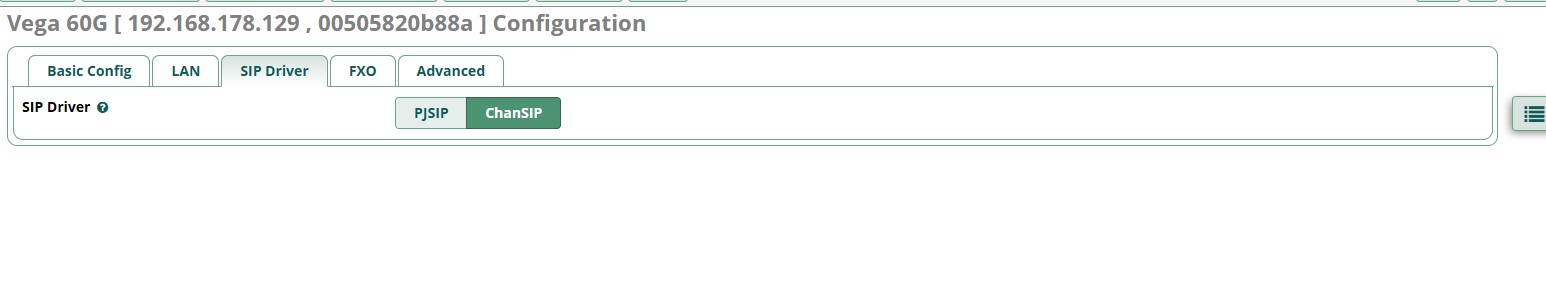

SIP Driver
SIP Driver1546×302 34.3 KB

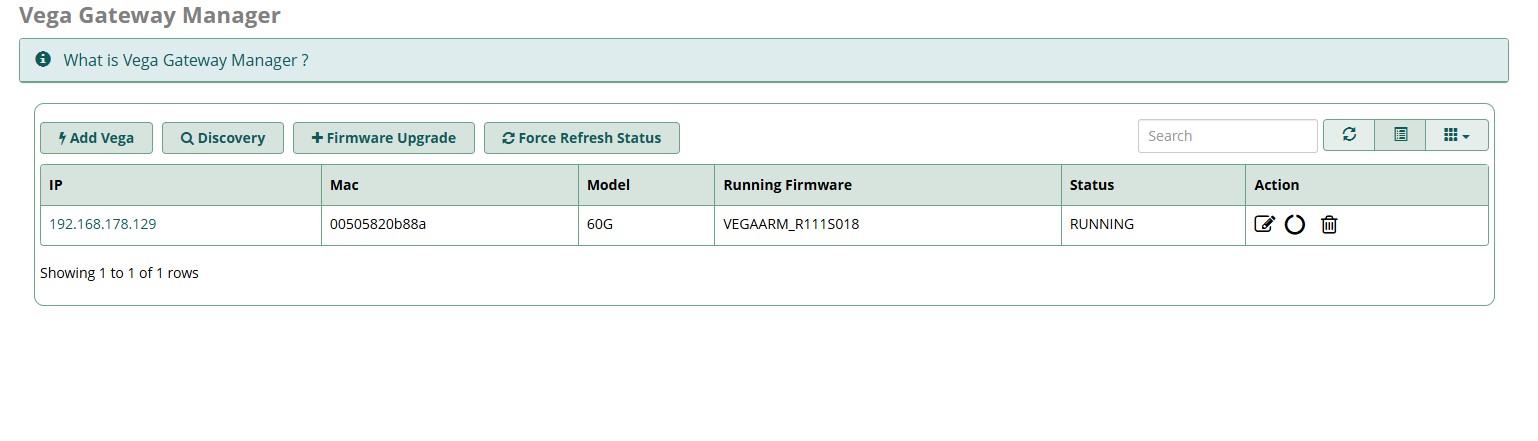

Vega Gateway Manager
Vega Gateway Manager1538×441 57.6 KB

28

Various Configs - Vega Gateway part 1;

LAN Information Part 2
LAN Information Part 21391×608 89.5 KB

LAN Information
LAN Information1571×629 97.8 KB

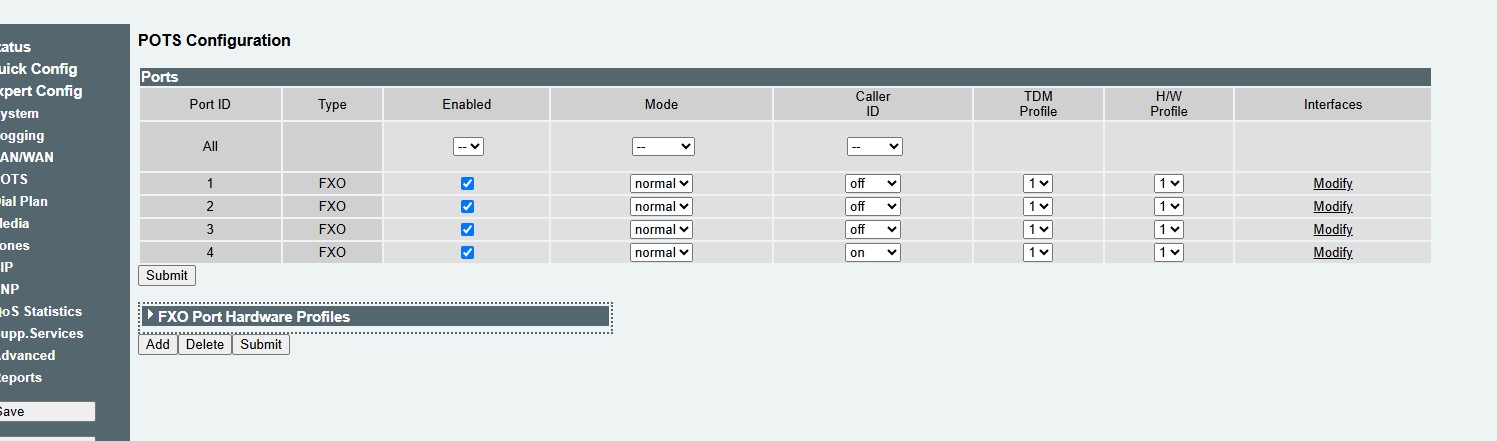

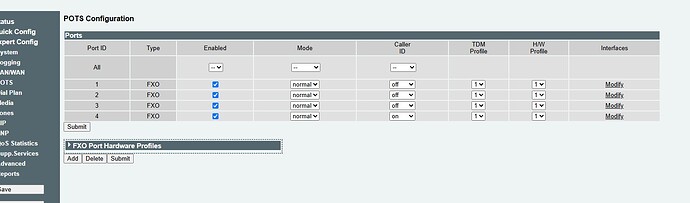

POTS Config
POTS Config1497×441 65.6 KB

FXO Information
FXO Information1186×558 84.2 KB

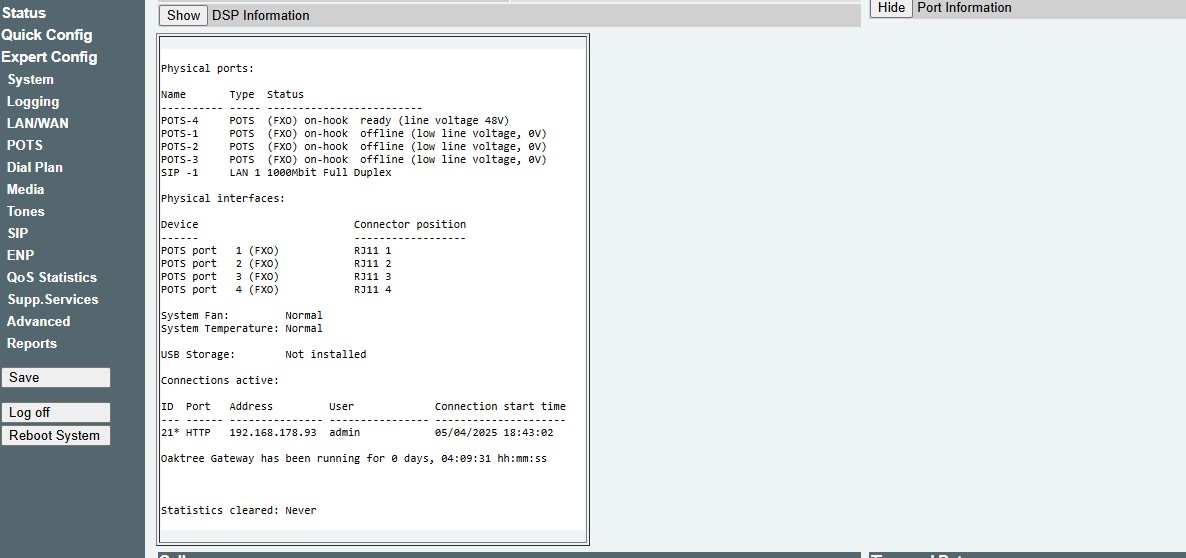

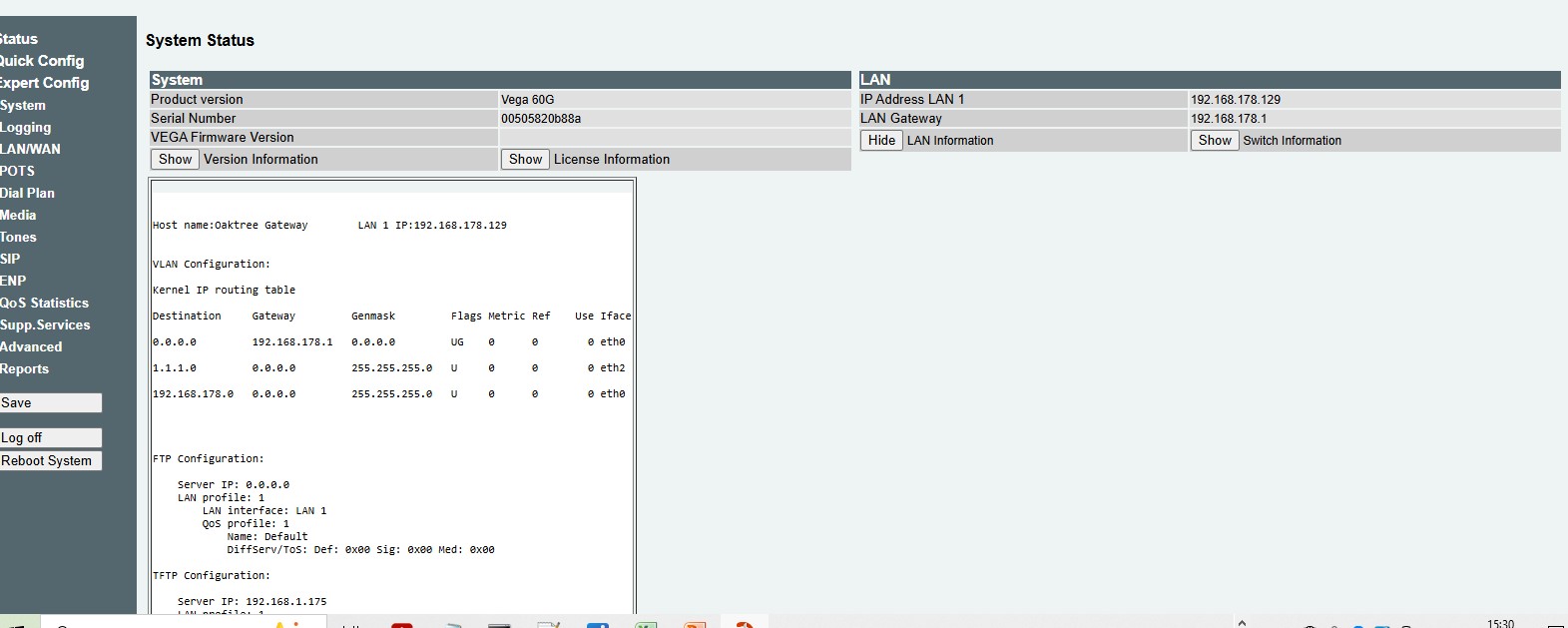

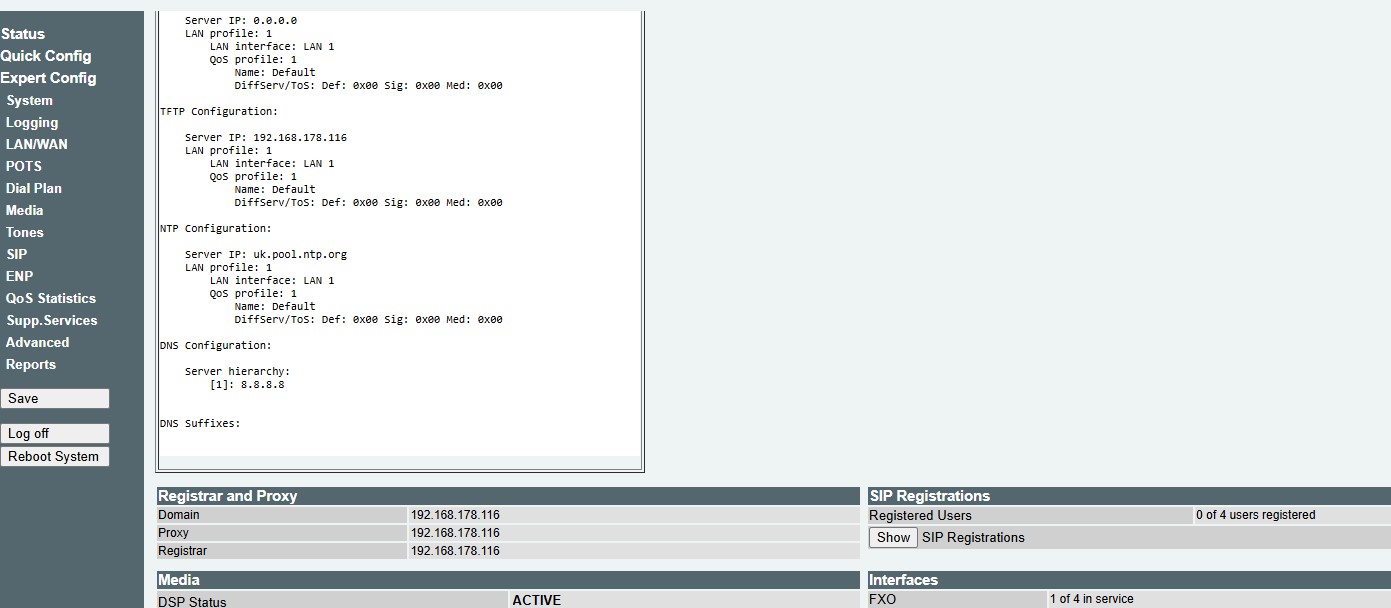

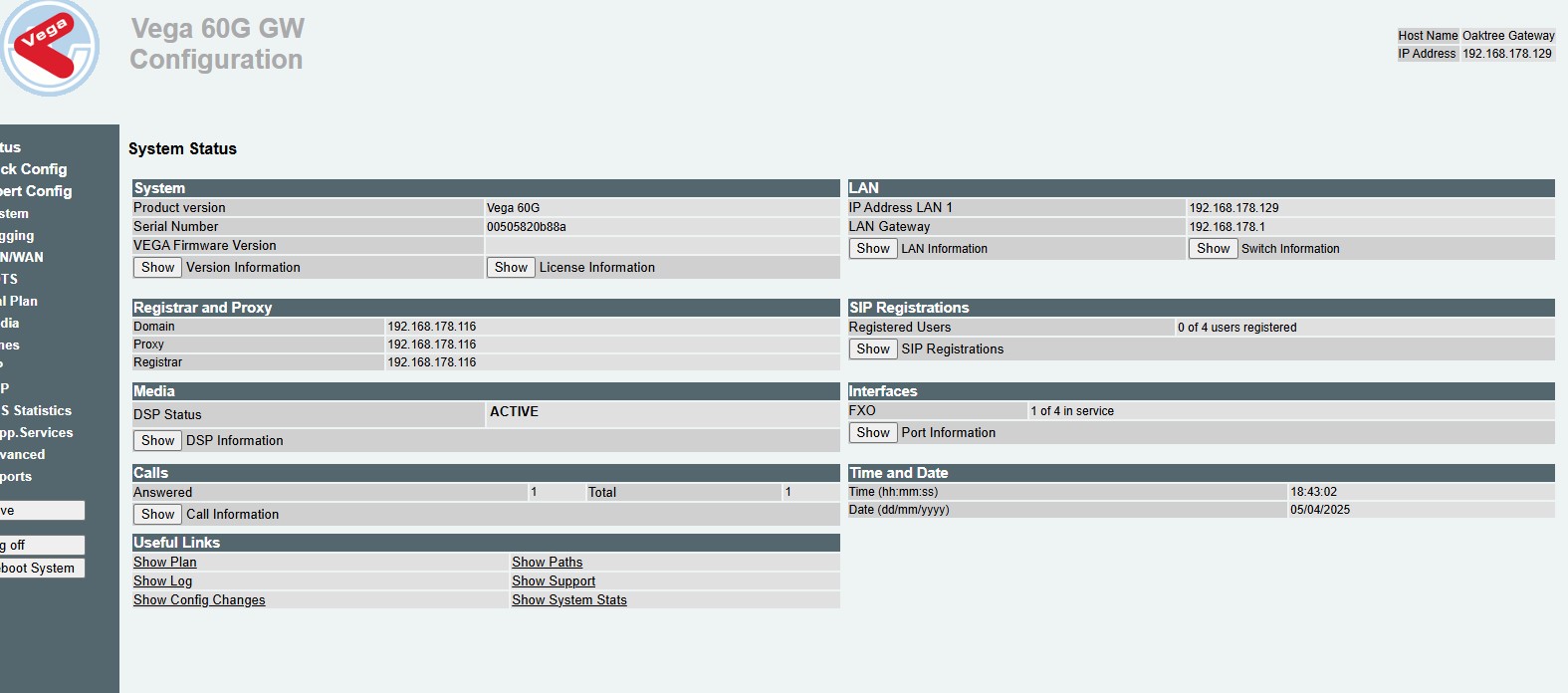

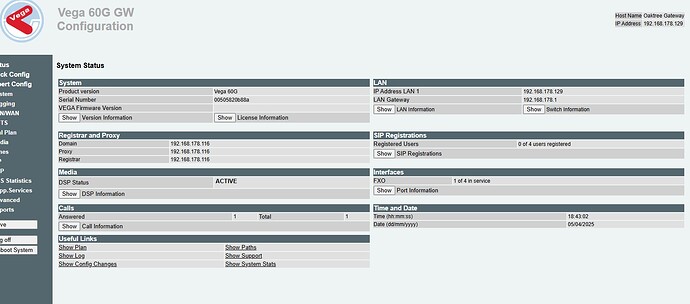

Gateway Status
Gateway Status1575×696 126 KB

29

Various Configs - Vega Gateway part 2;

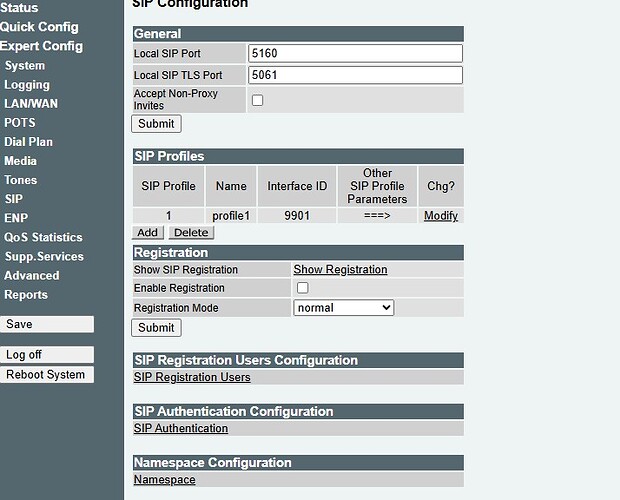

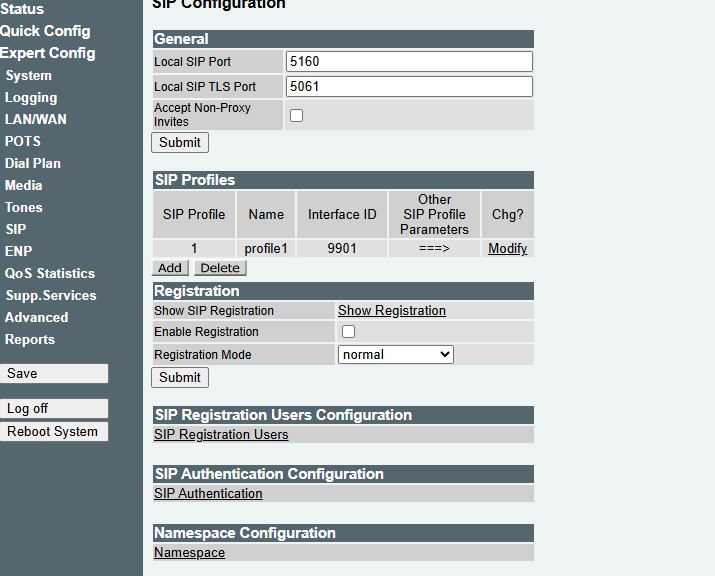

SIP Config
SIP Config715×576 69.8 KB

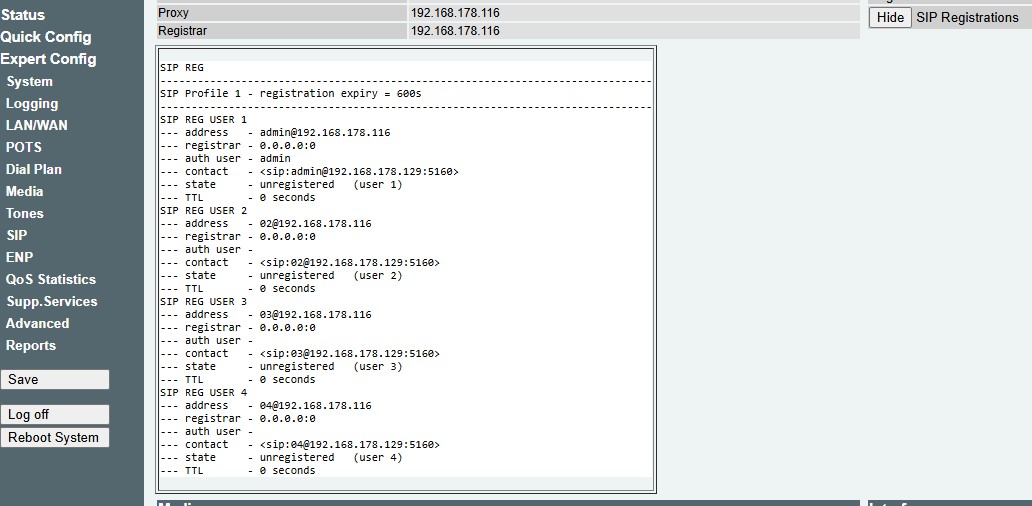

SIP Registrations
SIP Registrations1032×506 87.1 KB

30

Delete the incoming trunk entirely, and add context=from-pstn to the “outgoing” one.


Although I don’t think this section should be there at all, if it is, there needs to be exactly the same shaped splodge in the Vega configuration, but I can’t see any splodges in that.

31

Removed the config in the SIP setting “Incoming Settings” and added the context "context= from-pstn to the Outgoing SIP settings. Incoming calls still route to “The Number you have called is not in service” recorded announcement. Outgoing calls just go to silence. :frowning:

32

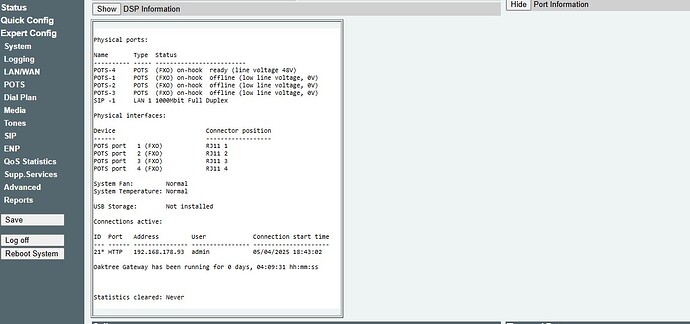

The outgoing failure looks to be hardware related. There should be 48 volts, incoming to the Vega, on the FXO line, and I think it is saying that is not the case. Looking more closely, you are trying to make the call through port 3, but only port 4 has a valid voltage on it.

If it is still failing in the same way incoming it is not matching the …129 address.

However, the source port is wrong. It is 5160, not 5060, so that comes down to the suggestion to make the port insecure, or to define an inbound, but as a peer, and with an explicit port number.

Looks like I never posted the insecure suggestion, because the lack of context on the peer setting looked a sufficient cause. I did draft that might be one of the rare cases that insecure=port was actually needed.

I did cover the voltage one, before:

33

FXO port 4 is the only port connected to the PSTN, this should explain why FXO’s 1 - 3 show the wrong voltage.

Some progress today, incoming calls now work. However out going calls still fail, the calling extn shows “Busy Here” on the screen, and caller recieved Busy Tone. Below is the FreePbx log file Part 1;

2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [17070@from-internal:1] Macro(“PJSIP/107-00000045”, “user-callerid,LIMIT,EXTERNAL,”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-user-callerid:1] Set(“PJSIP/107-00000045”, “TOUCH_MONITOR=1744023468.83”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-user-callerid:2] Set(“PJSIP/107-00000045”, “CHANCONTEXT=”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-user-callerid:3] Set(“PJSIP/107-00000045”, “CHANCONTEXT=”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-user-callerid:4] Set(“PJSIP/107-00000045”, “CHANEXTENCONTEXT=107-00000045”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-user-callerid:5] Set(“PJSIP/107-00000045”, “CHANEXTEN=107-00000045”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-user-callerid:6] Set(“PJSIP/107-00000045”, “CALLERID(number)=107”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-user-callerid:7] Set(“PJSIP/107-00000045”, “AMPUSER=107”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-user-callerid:8] Set(“PJSIP/107-00000045”, “HOTDESCKCHAN=107-00000045”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-user-callerid:9] Set(“PJSIP/107-00000045”, “HOTDESKEXTEN=107”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-user-callerid:10] Set(“PJSIP/107-00000045”, “HOTDESKCALL=0”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-user-callerid:11] ExecIf(“PJSIP/107-00000045”, “0?Set(HOTDESKCALL=1)”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-user-callerid:12] ExecIf(“PJSIP/107-00000045”, “0?Set(CALLERID(name)=)”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-user-callerid:13] GotoIf(“PJSIP/107-00000045”, “0?report”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-user-callerid:14] ExecIf(“PJSIP/107-00000045”, “1?Set(REALCALLERIDNUM=107)”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-user-callerid:15] Set(“PJSIP/107-00000045”, “AMPUSER=107”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-user-callerid:16] GotoIf(“PJSIP/107-00000045”, “0?limit”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-user-callerid:17] Set(“PJSIP/107-00000045”, “AMPUSERCIDNAME=Kitchen”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-user-callerid:18] ExecIf(“PJSIP/107-00000045”, “0?Set(__CIDMASQUERADING=TRUE)”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-user-callerid:19] GotoIf(“PJSIP/107-00000045”, “0?report”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-user-callerid:20] Set(“PJSIP/107-00000045”, “AMPUSERCID=107”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-user-callerid:21] Set(“PJSIP/107-00000045”, “__DIAL_OPTIONS=HhTtr”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-user-callerid:22] Set(“PJSIP/107-00000045”, “CALLERID(all)=“Kitchen” <107>”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-user-callerid:23] ExecIf(“PJSIP/107-00000045”, “0?Set(CUSDIAL=)”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-user-callerid:24] ExecIf(“PJSIP/107-00000045”, “0?Set(CALLERID(all)=“Kitchen” <107>)”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-user-callerid:25] GotoIf(“PJSIP/107-00000045”, “0?limit”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-user-callerid:26] ExecIf(“PJSIP/107-00000045”, “1?Set(GROUP(concurrency_limit)=107)”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-user-callerid:27] ExecIf(“PJSIP/107-00000045”, “0?Set(CHANNEL(language)=)”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-user-callerid:28] NoOp(“PJSIP/107-00000045”, “Macro Depth is 1”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-user-callerid:29] GotoIf(“PJSIP/107-00000045”, “1?report2:macroerror”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx_builtins.c: Goto (macro-user-callerid,s,30)
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-user-callerid:30] GotoIf(“PJSIP/107-00000045”, “1?continue”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx_builtins.c: Goto (macro-user-callerid,s,49)
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-user-callerid:49] Set(“PJSIP/107-00000045”, “CALLERID(number)=107”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-user-callerid:50] Set(“PJSIP/107-00000045”, “CALLERID(name)=Kitchen”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-user-callerid:51] GotoIf(“PJSIP/107-00000045”, “0?cnum”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-user-callerid:52] Set(“PJSIP/107-00000045”, “__MCNUM=107”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-user-callerid:53] Set(“PJSIP/107-00000045”, “__MCNAME=Kitchen”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-user-callerid:54] Set(“PJSIP/107-00000045”, “__MCEXTEN=107”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-user-callerid:55] Set(“PJSIP/107-00000045”, “__MCORGCHAN=PJSIP/107-00000045”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-user-callerid:56] Set(“PJSIP/107-00000045”, “CDR(cnam)=Kitchen”) in new stack

34

Part 2;

[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-user-callerid:57] Set(“PJSIP/107-00000045”, “CDR(cnum)=107”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-user-callerid:58] Set(“PJSIP/107-00000045”, “CHANNEL(language)=en”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [17070@from-internal:2] Gosub(“PJSIP/107-00000045”, “sub-record-check,s,1(out,17070,dontcare)”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@sub-record-check:1] GotoIf(“PJSIP/107-00000045”, “0?initialized”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@sub-record-check:2] Set(“PJSIP/107-00000045”, “__REC_STATUS=INITIALIZED”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@sub-record-check:3] Set(“PJSIP/107-00000045”, “NOW=1744023468”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@sub-record-check:4] Set(“PJSIP/107-00000045”, “__DAY=07”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@sub-record-check:5] Set(“PJSIP/107-00000045”, “__MONTH=04”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@sub-record-check:6] Set(“PJSIP/107-00000045”, “__YEAR=2025”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@sub-record-check:7] Set(“PJSIP/107-00000045”, “__TIMESTR=20250407-115748”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@sub-record-check:8] Set(“PJSIP/107-00000045”, “__FROMEXTEN=107”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@sub-record-check:9] Set(“PJSIP/107-00000045”, “__MON_FMT=wav”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@sub-record-check:10] NoOp(“PJSIP/107-00000045”, “Recordings initialized”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@sub-record-check:11] ExecIf(“PJSIP/107-00000045”, “0?Set(ARG3=dontcare)”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@sub-record-check:12] Set(“PJSIP/107-00000045”, “REC_POLICY_MODE_SAVE=”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@sub-record-check:13] ExecIf(“PJSIP/107-00000045”, “0?Set(REC_STATUS=NO)”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@sub-record-check:14] GotoIf(“PJSIP/107-00000045”, “3?checkaction”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx_builtins.c: Goto (sub-record-check,s,17)
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@sub-record-check:17] GotoIf(“PJSIP/107-00000045”, “1?sub-record-check,out,1”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx_builtins.c: Goto (sub-record-check,out,1)
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [out@sub-record-check:1] NoOp(“PJSIP/107-00000045”, “Outbound Recording Check from 107 to 17070”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [out@sub-record-check:2] Set(“PJSIP/107-00000045”, “RECMODE=dontcare”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [out@sub-record-check:3] ExecIf(“PJSIP/107-00000045”, “1?Goto(routewins)”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx_builtins.c: Goto (sub-record-check,out,7)
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [out@sub-record-check:7] Gosub(“PJSIP/107-00000045”, “recordcheck,1(dontcare,out,17070)”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [recordcheck@sub-record-check:1] NoOp(“PJSIP/107-00000045”, “Starting recording check against dontcare”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [recordcheck@sub-record-check:2] Goto(“PJSIP/107-00000045”, “dontcare”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx_builtins.c: Goto (sub-record-check,recordcheck,3)
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [recordcheck@sub-record-check:3] Return(“PJSIP/107-00000045”, “”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [out@sub-record-check:8] Return(“PJSIP/107-00000045”, “”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [17070@from-internal:3] ExecIf(“PJSIP/107-00000045”, “0 ?Set(CDR(accountcode)=)”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [17070@from-internal:4] Set(“PJSIP/107-00000045”, “_ROUTEID=1”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [17070@from-internal:5] Set(“PJSIP/107-00000045”, “_ROUTENAME=outbound”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [17070@from-internal:6] Set(“PJSIP/107-00000045”, “MOHCLASS=default”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [17070@from-internal:7] ExecIf(“PJSIP/107-00000045”, “0?Set(TRUNKCIDOVERRIDE=01474871213)”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [17070@from-internal:8] Set(“PJSIP/107-00000045”, “_CALLERIDNAMEINTERNAL=Kitchen”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [17070@from-internal:9] Set(“PJSIP/107-00000045”, “_CALLERIDNUMINTERNAL=107”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [17070@from-internal:10] Set(“PJSIP/107-00000045”, “_EMAILNOTIFICATION=FALSE”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [17070@from-internal:11] Set(“PJSIP/107-00000045”, “_NODEST=”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [17070@from-internal:12] Macro(“PJSIP/107-00000045”, “dialout-trunk,2,17070,off”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-dialout-trunk:1] Set(“PJSIP/107-00000045”, “DIAL_TRUNK=2”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-dialout-trunk:2] ExecIf(“PJSIP/107-00000045”, “0?Set(DIAL_OPTIONS=Hhtr)”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-dialout-trunk:3] ExecIf(“PJSIP/107-00000045”, “0?Set(DIAL_OPTIONS=HhTr)”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-dialout-trunk:4] ExecIf(“PJSIP/107-00000045”, “0?Set(DIAL_OPTIONS=Hhtr)”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-dialout-trunk:5] GosubIf(“PJSIP/107-00000045”, “0?sub-pincheck,s,1()”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-dialout-trunk:6] ExecIf(“PJSIP/107-00000045”, “0?Set(CALLERID(num)=107)”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-dialout-trunk:7] GotoIf(“PJSIP/107-00000045”, “0?disabletrunk,1”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-dialout-trunk:8] Set(“PJSIP/107-00000045”, “DIAL_NUMBER=17070”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-dialout-trunk:9] Set(“PJSIP/107-00000045”, “DIAL_TRUNK_OPTIONS=HhTtr”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-dialout-trunk:10] Set(“PJSIP/107-00000045”, “OUTBOUND_GROUP=OUT_2”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-dialout-trunk:11] Set(“PJSIP/107-00000045”, “DIAL_TRUNK_OPTIONS=T”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-dialout-trunk:12] ExecIf(“PJSIP/107-00000045”, “0?Set(DIAL_TRUNK_OPTIONS=)”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-dialout-trunk:13] GotoIf(“PJSIP/107-00000045”, “1?nomax”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx_builtins.c: Goto (macro-dialout-trunk,s,15)
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-dialout-trunk:15] GotoIf(“PJSIP/107-00000045”, “0?skipoutcid”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-dialout-trunk:16] Macro(“PJSIP/107-00000045”, “outbound-callerid,2”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-outbound-callerid:1] NoOp(“PJSIP/107-00000045”, “107”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-outbound-callerid:2] NoOp(“PJSIP/107-00000045”, “”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-outbound-callerid:3] NoOp(“PJSIP/107-00000045”, “off”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-outbound-callerid:4] ExecIf(“PJSIP/107-00000045”, “0?Set(CALLERPRES(name-pres)=)”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-outbound-callerid:5] ExecIf(“PJSIP/107-00000045”, “0?Set(CALLERPRES(num-pres)=)”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-outbound-callerid:6] Set(“PJSIP/107-00000045”, “HOTDESCKCHAN=107-00000045”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-outbound-callerid:7] Set(“PJSIP/107-00000045”, “HOTDESKEXTEN=107”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-outbound-callerid:8] Set(“PJSIP/107-00000045”, “HOTDESKCALL=0”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-outbound-callerid:9] ExecIf(“PJSIP/107-00000045”, “0?Set(HOTDESKCALL=1)”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-outbound-callerid:10] ExecIf(“PJSIP/107-00000045”, “0?Set(CALLERID(name)=)”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-outbound-callerid:11] Set(“PJSIP/107-00000045”, “ALLOWTHISROUTE=NO”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-outbound-callerid:12] ExecIf(“PJSIP/107-00000045”, “0?Set(ALLOWTHISROUTE=YES)”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-outbound-callerid:13] ExecIf(“PJSIP/107-00000045”, “0?Hangup()”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-outbound-callerid:14] ExecIf(“PJSIP/107-00000045”, “0?Set(REALCALLERIDNUM=107)”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-outbound-callerid:15] ExecIf(“PJSIP/107-00000045”, “0?Set(AMPUSER=107)”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-outbound-callerid:16] GotoIf(“PJSIP/107-00000045”, “1?normcid”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx_builtins.c: Goto (macro-outbound-callerid,s,20)
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-outbound-callerid:20] Set(“PJSIP/107-00000045”, “USEROUTCID=107”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-outbound-callerid:21] Set(“PJSIP/107-00000045”, “EMERGENCYCID=”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-outbound-callerid:22] ExecIf(“PJSIP/107-00000045”, “0?Set(EMERGENCYCID=)”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-outbound-callerid:23] Set(“PJSIP/107-00000045”, “TRUNKOUTCID=01474871213”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-outbound-callerid:24] GotoIf(“PJSIP/107-00000045”, “1?trunkcid”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx_builtins.c: Goto (macro-outbound-callerid,s,30)
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-outbound-callerid:30] ExecIf(“PJSIP/107-00000045”, “1?Set(CALLERID(all)=01474******)”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-outbound-callerid:31] ExecIf(“PJSIP/107-00000045”, “1?Set(CALLERID(all)=107)”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-outbound-callerid:32] ExecIf(“PJSIP/107-00000045”, “0?Set(CALLERID(all)=)”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-outbound-callerid:33] ExecIf(“PJSIP/107-00000045”, “0?Set(CALLERID(all)=107)”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-outbound-callerid:34] ExecIf(“PJSIP/107-00000045”, “0?Set(CALLERID(all)=107)”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-outbound-callerid:35] Set(“PJSIP/107-00000045”, “TIOHIDE=no”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-outbound-callerid:36] ExecIf(“PJSIP/107-00000045”, “0?Set(CALLERPRES(name-pres)=prohib_passed_screen)”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-outbound-callerid:37] ExecIf(“PJSIP/107-00000045”, “0?Set(CALLERPRES(num-pres)=prohib_passed_screen)”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-outbound-callerid:38] ExecIf(“PJSIP/107-00000045”, “0?Set(CALLERPRES(name-pres)=prohib_passed_screen)”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-outbound-callerid:39] ExecIf(“PJSIP/107-00000045”, “0?Set(CALLERPRES(num-pres)=prohib_passed_screen)”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-outbound-callerid:40] Set(“PJSIP/107-00000045”, “CDR(outbound_cnum)=107”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-outbound-callerid:41] Set(“PJSIP/107-00000045”, “CDR(outbound_cnam)=”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-dialout-trunk:17] GosubIf(“PJSIP/107-00000045”, “0?sub-flp-2,s,1()”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-dialout-trunk:18] Set(“PJSIP/107-00000045”, “OUTNUM=xxxxxxxxxxxxx17070”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-dialout-trunk:19] Set(“PJSIP/107-00000045”, “custom=PJSIP”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-dialout-trunk:20] ExecIf(“PJSIP/107-00000045”, “0?Set(DIAL_TRUNK_OPTIONS=M(setmusic^default)T)”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-dialout-trunk:21] ExecIf(“PJSIP/107-00000045”, “0?Set(DIAL_TRUNK_OPTIONS=TM(confirm))”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-dialout-trunk:22] ExecIf(“PJSIP/107-00000045”, “0?AGI(allowlist-autoadd.agi,)”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-dialout-trunk:23] Macro(“PJSIP/107-00000045”, “dialout-trunk-predial-hook,”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-dialout-trunk-predial-hook:1] MacroExit(“PJSIP/107-00000045”, “”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-dialout-trunk:24] GotoIf(“PJSIP/107-00000045”, “0?skipcrm”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-dialout-trunk:25] Set(“PJSIP/107-00000045”, “__CRM_DIRECTION=OUTBOUND”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-dialout-trunk:26] Set(“PJSIP/107-00000045”, “__CRM_DESTINATION=xxxxxxxxxxxxx17070”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-dialout-trunk:27] Set(“PJSIP/107-00000045”, “__CRM_SOURCE=107”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-dialout-trunk:28] AGI(“PJSIP/107-00000045”, “sangomacrm.agi”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] res_agi.c: Launched AGI Script /var/lib/asterisk/agi-bin/sangomacrm.agi
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] res_agi.c: <PJSIP/107-00000045>AGI Script sangomacrm.agi completed, returning 0
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-dialout-trunk:29] Set(“PJSIP/107-00000045”, “CHANNEL(hangup_handler_push)=crm-hangup,s,1”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-dialout-trunk:30] NoOp(“PJSIP/107-00000045”, “CRM Finished”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-dialout-trunk:31] GotoIf(“PJSIP/107-00000045”, “0?bypass,1”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-dialout-trunk:32] ExecIf(“PJSIP/107-00000045”, “1?Set(CONNECTEDLINE(num,i)=17070)”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-dialout-trunk:33] ExecIf(“PJSIP/107-00000045”, “1?Set(CONNECTEDLINE(name,i)=CID:107)”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-dialout-trunk:34] ExecIf(“PJSIP/107-00000045”, “0?Set(CONNECTEDLINE(name,i)=CID:(Hidden)107)”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-dialout-trunk:35] GotoIf(“PJSIP/107-00000045”, “0?customtrunk”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-dialout-trunk:36] ExecIf(“PJSIP/107-00000045”, “0?Set(DIAL_TRUNK_OPTIONS=)”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-dialout-trunk:37] Set(“PJSIP/107-00000045”, “HASH(__SIPHEADERS,Alert-Info)=unset”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-dialout-trunk:38] Dial(“PJSIP/107-00000045”, “PJSIP/xxxxxxxxxxxxx17070@Vega_SIP_Outbound,300,Tb(func-apply-sipheaders^s^1,(2))U(sub-send-obroute-email^17070^17070^2^1744023468^^107)”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] app_stack.c: PJSIP/Vega_SIP_Outbound-00000046 Internal Gosub(func-apply-sipheaders,s,1(2)) start
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@func-apply-sipheaders:1] ExecIf(“PJSIP/Vega_SIP_Outbound-00000046”, “0?Set(CHANNEL(hangup_handler_push)=crm-hangup,s,1)”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@func-apply-sipheaders:2] NoOp(“PJSIP/Vega_SIP_Outbound-00000046”, “Applying SIP Headers to channel PJSIP/Vega_SIP_Outbound-00000046”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@func-apply-sipheaders:3] Set(“PJSIP/Vega_SIP_Outbound-00000046”, “localchan=Vega_SIP_Outbound-00000046”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@func-apply-sipheaders:4] Set(“PJSIP/Vega_SIP_Outbound-00000046”, “DialMCEXT=Vega_SIP_Outbound”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@func-apply-sipheaders:5] Set(“PJSIP/Vega_SIP_Outbound-00000046”, “CHANNEL(hangup_handler_push)=app-missedcall-hangup,Vega_SIP_Outbound,1”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@func-apply-sipheaders:6] Set(“PJSIP/Vega_SIP_Outbound-00000046”, “TECH=PJSIP”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@func-apply-sipheaders:7] Set(“PJSIP/Vega_SIP_Outbound-00000046”, “SIPHEADERKEYS=Alert-Info”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@func-apply-sipheaders:8] While(“PJSIP/Vega_SIP_Outbound-00000046”, “1”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@func-apply-sipheaders:9] Set(“PJSIP/Vega_SIP_Outbound-00000046”, “sipheader=unset”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@func-apply-sipheaders:10] ExecIf(“PJSIP/Vega_SIP_Outbound-00000046”, “0?SIPRemoveHeader(Alert-Info:)”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@func-apply-sipheaders:11] ExecIf(“PJSIP/Vega_SIP_Outbound-00000046”, “1?Set(PJSIP_HEADER(remove,Alert-Info)=)”) in new stack
[2025-04-07 11:57:48] ERROR[4393] res_pjsip_header_funcs.c: No headers had been previously added to this session.
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@func-apply-sipheaders:12] ExecIf(“PJSIP/Vega_SIP_Outbound-00000046”, “0?Set(sipheader=http://127.0.0.1;info=unset)”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@func-apply-sipheaders:13] ExecIf(“PJSIP/Vega_SIP_Outbound-00000046”, “0?Set(sipheader=http://127.0.0.1unset)”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@func-apply-sipheaders:14] ExecIf(“PJSIP/Vega_SIP_Outbound-00000046”, “0?SIPAddHeader(Alert-Info:unset)”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@func-apply-sipheaders:15] ExecIf(“PJSIP/Vega_SIP_Outbound-00000046”, “0?Set(PJSIP_HEADER(add,Alert-Info)=unset)”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@func-apply-sipheaders:16] EndWhile(“PJSIP/Vega_SIP_Outbound-00000046”, “”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@func-apply-sipheaders:8] While(“PJSIP/Vega_SIP_Outbound-00000046”, “0”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [s@func-apply-sipheaders:17] Return(“PJSIP/Vega_SIP_Outbound-00000046”, “”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] app_stack.c: Spawn extension (to-pstn, 17070, 1) exited non-zero on ‘PJSIP/Vega_SIP_Outbound-00000046’
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] app_stack.c: PJSIP/Vega_SIP_Outbound-00000046 Internal Gosub(func-apply-sipheaders,s,1(2)) complete GOSUB_RETVAL=
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] app_dial.c: Called PJSIP/xxxxxxxxxxxxx17070@Vega_SIP_Outbound
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] app_stack.c: PJSIP/Vega_SIP_Outbound-00000046 Internal Gosub(app-missedcall-hangup,Vega_SIP_Outbound,1) start
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [Vega_SIP_Outbound@app-missedcall-hangup:1] NoOp(“PJSIP/Vega_SIP_Outbound-00000046”, “Dialed: Vega_SIP_Outbound”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [Vega_SIP_Outbound@app-missedcall-hangup:2] NoOp(“PJSIP/Vega_SIP_Outbound-00000046”, “Caller: 107”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [Vega_SIP_Outbound@app-missedcall-hangup:3] GotoIf(“PJSIP/Vega_SIP_Outbound-00000046”, “0?exit”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [Vega_SIP_Outbound@app-missedcall-hangup:4] Set(“PJSIP/Vega_SIP_Outbound-00000046”, “EXTENNUM=Vega_SIP_Outbound”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [Vega_SIP_Outbound@app-missedcall-hangup:5] Set(“PJSIP/Vega_SIP_Outbound-00000046”, “FEXTENNUM=Vega_SIP_Outbound”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [Vega_SIP_Outbound@app-missedcall-hangup:6] GotoIf(“PJSIP/Vega_SIP_Outbound-00000046”, “0?exit”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] pbx.c: Executing [Vega_SIP_Outbound@app-missedcall-hangup:7] AGI(“PJSIP/Vega_SIP_Outbound-00000046”, “missedcallnotify.php,Vega_SIP_Outbound,Vega_SIP_Outbound,0,PJSIP/Vega_SIP_Outbound-00000046,”) in new stack
[2025-04-07 11:57:48] VERBOSE[19702][C-00000025] res_agi.c: Launched AGI Script /var/lib/asterisk/agi-bin/missedcallnotify.php
[2025-04-07 11:57:49] VERBOSE[19702][C-00000025] res_agi.c: <PJSIP/Vega_SIP_Outbound-00000046>AGI Script missedcallnotify.php completed, returning 0
[2025-04-07 11:57:49] VERBOSE[19702][C-00000025] pbx.c: Executing [Vega_SIP_Outbound@app-missedcall-hangup:8] Return(“PJSIP/Vega_SIP_Outbound-00000046”, “”) in new stack
[2025-04-07 11:57:49] VERBOSE[19702][C-00000025] app_stack.c: Spawn extension (to-pstn, 17070, 1) exited non-zero on ‘PJSIP/Vega_SIP_Outbound-00000046’
[2025-04-07 11:57:49] VERBOSE[19702][C-00000025] app_stack.c: PJSIP/Vega_SIP_Outbound-00000046 Internal Gosub(app-missedcall-hangup,Vega_SIP_Outbound,1) complete GOSUB_RETVAL=
[2025-04-07 11:57:49] VERBOSE[19702][C-00000025] app_dial.c: Everyone is busy/congested at this time (1:0/0/1)
[2025-04-07 11:57:49] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-dialout-trunk:39] NoOp(“PJSIP/107-00000045”, “Dial failed for some reason with DIALSTATUS = CHANUNAVAIL and HANGUPCAUSE = 1”) in new stack
[2025-04-07 11:57:49] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-dialout-trunk:40] GotoIf(“PJSIP/107-00000045”, “0?continue,1:s-CHANUNAVAIL,1”) in new stack
[2025-04-07 11:57:49] VERBOSE[19702][C-00000025] pbx_builtins.c: Goto (macro-dialout-trunk,s-CHANUNAVAIL,1)
[2025-04-07 11:57:49] VERBOSE[19702][C-00000025] pbx.c: Executing [s-CHANUNAVAIL@macro-dialout-trunk:1] Set(“PJSIP/107-00000045”, “RC=1”) in new stack
[2025-04-07 11:57:49] VERBOSE[19702][C-00000025] pbx.c: Executing [s-CHANUNAVAIL@macro-dialout-trunk:2] Goto(“PJSIP/107-00000045”, “1,1”) in new stack
[2025-04-07 11:57:49] VERBOSE[19702][C-00000025] pbx_builtins.c: Goto (macro-dialout-trunk,1,1)
[2025-04-07 11:57:49] VERBOSE[19702][C-00000025] pbx.c: Executing [1@macro-dialout-trunk:1] Goto(“PJSIP/107-00000045”, “s-INVALIDNMBR,1”) in new stack
[2025-04-07 11:57:49] VERBOSE[19702][C-00000025] pbx_builtins.c: Goto (macro-dialout-trunk,s-INVALIDNMBR,1)
[2025-04-07 11:57:49] VERBOSE[19702][C-00000025] pbx.c: Executing [s-INVALIDNMBR@macro-dialout-trunk:1] NoOp(“PJSIP/107-00000045”, “Dial failed due to trunk reporting Address Incomplete - giving up”) in new stack
[2025-04-07 11:57:49] VERBOSE[19702][C-00000025] pbx.c: Executing [s-INVALIDNMBR@macro-dialout-trunk:2] Progress(“PJSIP/107-00000045”, “”) in new stack
[2025-04-07 11:57:49] VERBOSE[19702][C-00000025] pbx.c: Executing [s-INVALIDNMBR@macro-dialout-trunk:3] PlayTones(“PJSIP/107-00000045”, “congestion”) in new stack
[2025-04-07 11:57:49] VERBOSE[19702][C-00000025] pbx.c: Executing [s-INVALIDNMBR@macro-dialout-trunk:4] Busy(“PJSIP/107-00000045”, “20”) in new stack
[2025-04-07 11:57:49] VERBOSE[19702][C-00000025] app_macro.c: Spawn extension (macro-dialout-trunk, s-INVALIDNMBR, 4) exited non-zero on ‘PJSIP/107-00000045’ in macro ‘dialout-trunk’
[2025-04-07 11:57:49] VERBOSE[19702][C-00000025] pbx.c: Spawn extension (from-internal, 17070, 12) exited non-zero on ‘PJSIP/107-00000045’
[2025-04-07 11:57:49] VERBOSE[19702][C-00000025] pbx.c: Executing [h@from-internal:1] Macro(“PJSIP/107-00000045”, “hangupcall”) in new stack
[2025-04-07 11:57:49] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-hangupcall:1] Set(“PJSIP/107-00000045”, “__MCVMSTATUS=”) in new stack
[2025-04-07 11:57:49] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-hangupcall:2] Gosub(“PJSIP/107-00000045”, “app-missedcall-hangup,s,1()”) in new stack
[2025-04-07 11:57:49] VERBOSE[19702][C-00000025] pbx.c: Executing [s@app-missedcall-hangup:1] NoOp(“PJSIP/107-00000045”, “Dialed: s”) in new stack
[2025-04-07 11:57:49] VERBOSE[19702][C-00000025] pbx.c: Executing [s@app-missedcall-hangup:2] NoOp(“PJSIP/107-00000045”, “Caller: 107”) in new stack
[2025-04-07 11:57:49] VERBOSE[19702][C-00000025] pbx.c: Executing [s@app-missedcall-hangup:3] GotoIf(“PJSIP/107-00000045”, “0?exit”) in new stack
[2025-04-07 11:57:49] VERBOSE[19702][C-00000025] pbx.c: Executing [s@app-missedcall-hangup:4] Set(“PJSIP/107-00000045”, “EXTENNUM=s”) in new stack
[2025-04-07 11:57:49] VERBOSE[19702][C-00000025] pbx.c: Executing [s@app-missedcall-hangup:5] Set(“PJSIP/107-00000045”, “FEXTENNUM=s”) in new stack
[2025-04-07 11:57:49] VERBOSE[19702][C-00000025] pbx.c: Executing [s@app-missedcall-hangup:6] GotoIf(“PJSIP/107-00000045”, “0?exit”) in new stack
[2025-04-07 11:57:49] VERBOSE[19702][C-00000025] pbx.c: Executing [s@app-missedcall-hangup:7] AGI(“PJSIP/107-00000045”, “missedcallnotify.php,s,s,0,PJSIP/107-00000045,CHANUNAVAIL,”) in new stack
[2025-04-07 11:57:49] VERBOSE[19702][C-00000025] res_agi.c: Launched AGI Script /var/lib/asterisk/agi-bin/missedcallnotify.php
[2025-04-07 11:57:49] VERBOSE[19702][C-00000025] res_agi.c: <PJSIP/107-00000045>AGI Script missedcallnotify.php completed, returning 0
[2025-04-07 11:57:49] VERBOSE[19702][C-00000025] pbx.c: Executing [s@app-missedcall-hangup:8] Return(“PJSIP/107-00000045”, “”) in new stack
[2025-04-07 11:57:49] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-hangupcall:3] GotoIf(“PJSIP/107-00000045”, “1?theend”) in new stack
[2025-04-07 11:57:49] VERBOSE[19702][C-00000025] pbx_builtins.c: Goto (macro-hangupcall,s,5)
[2025-04-07 11:57:49] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-hangupcall:5] ExecIf(“PJSIP/107-00000045”, “0?Set(CDR(recordingfile)=)”) in new stack
[2025-04-07 11:57:49] VERBOSE[19702][C-00000025] pbx.c: Executing [s@macro-hangupcall:6] Hangup(“PJSIP/107-00000045”, “”) in new stack
[2025-04-07 11:57:49] VERBOSE[19702][C-00000025] app_macro.c: Spawn extension (macro-hangupcall, s, 6) exited non-zero on ‘PJSIP/107-00000045’ in macro ‘hangupcall’
[2025-04-07 11:57:49] VERBOSE[19702][C-00000025] pbx.c: Spawn extension (from-internal, h, 1) exited non-zero on ‘PJSIP/107-00000045’
[2025-04-07 11:57:49] VERBOSE[19702][C-00000025] app_stack.c: PJSIP/107-00000045 Internal Gosub(crm-hangup,s,1) start
[2025-04-07 11:57:49] VERBOSE[19702][C-00000025] pbx.c: Executing [s@crm-hangup:1] NoOp(“PJSIP/107-00000045”, “Sending Hangup to CRM”) in new stack
[2025-04-07 11:57:49] VERBOSE[19702][C-00000025] pbx.c: Executing [s@crm-hangup:2] NoOp(“PJSIP/107-00000045”, “HANGUP CAUSE: 17”) in new stack
[2025-04-07 11:57:49] VERBOSE[19702][C-00000025] pbx.c: Executing [s@crm-hangup:3] ExecIf(“PJSIP/107-00000045”, “0?Set(__CRM_VOICEMAIL=)”) in new stack
[2025-04-07 11:57:49] VERBOSE[19702][C-00000025] pbx.c: Executing [s@crm-hangup:4] NoOp(“PJSIP/107-00000045”, “MASTER CHANNEL: 1744023468.83 = 1744023468.83”) in new stack
[2025-04-07 11:57:49] VERBOSE[19702][C-00000025] pbx.c: Executing [s@crm-hangup:5] GotoIf(“PJSIP/107-00000045”, “0?return”) in new stack
[2025-04-07 11:57:49] VERBOSE[19702][C-00000025] pbx.c: Executing [s@crm-hangup:6] Set(“PJSIP/107-00000045”, “__CRM_HANGUP=1”) in new stack
[2025-04-07 11:57:49] VERBOSE[19702][C-00000025] pbx.c: Executing [s@crm-hangup:7] AGI(“PJSIP/107-00000045”, “sangomacrm.agi”) in new stack
[2025-04-07 11:57:49] VERBOSE[19702][C-00000025] res_agi.c: Launched AGI Script /var/lib/asterisk/agi-bin/sangomacrm.agi
[2025-04-07 11:57:49] VERBOSE[19702][C-00000025] res_agi.c: <PJSIP/107-00000045>AGI Script sangomacrm.agi completed, returning 0
[2025-04-07 11:57:49] VERBOSE[19702][C-00000025] pbx.c: Executing [s@crm-hangup:8] Return(“PJSIP/107-00000045”, “”) in new stack
[2025-04-07 11:57:49] VERBOSE[19702][C-00000025] app_stack.c: Spawn extension (from-internal, h, 1) exited non-zero on ‘PJSIP/107-00000045’
[2025-04-07 11:57:49] VERBOSE[19702][C-00000025] app_stack.c: PJSIP/107-00000045 Internal Gosub(crm-hangup,s,1) complete GOSUB_RETVAL=

35

Maybe this is a pointer;

pbx.c: Executing [s-INVALIDNMBR@macro-dialout-trunk:1] NoOp(“PJSIP/107-00000045”, “Dial failed due to trunk reporting Address Incomplete - giving up”) in new stack

36

This is the event log from the Vega

LOG: 07/04/2025 12:18:39.800 ROUTER (A)Rb0C00 FINDROUTE: rejected; no route
← SIP [2,1] dest=NAME:xxxxxxxxxxxxx17070,TEL:17070

LOG: 07/04/2025 12:18:39.800 ROUTER (I)R07C00 no route to destination
call ref=[01d0001f]

LOG: 07/04/2025 12:18:39.800 SIP (I)R04C10 disconnect(disc req) 1
call ref=[01d0001f]

37

There’s no rule in the Vega telling it that 17070 is a valid and complete number, or you are sending 17070 to it, when you shouldn’t be.

The following is the line indicating that it was trying to use port 3, not port 4:

I assume the 3 in POTS[3,1] indicates that it has decided to sent the call out through port 3.

38

This topic was automatically closed 30 days after the last reply. New replies are no longer allowed.
