two days ago asterisk server started to add some numbers before callerid like:
22300-14587:663
where the real phone number is 663
the same “22300-14587:” added to callername before phone number
it happens when call goes to another asterisk server via iax2 trunk. intra-server calls works fine.
users are able to make a call but unable to call-back missed call because callerid 22300-14587:663 doesn’t exist
need help please. where to dig?
asterisk 21 freepbx 17
here’s log on receiving asterisk server:
-- Accepting UNAUTHENTICATED call from 10.20.0.57:10439: -- > requested format = ulaw, -- > requested prefs = (ulaw|alaw|gsm|h264|mpeg4|g729), -- > actual format = ulaw, -- > host prefs = (ulaw|alaw|gsm|h264|g729), -- > priority = mine -- Executing [190@from-internal:1] Gosub("IAX2/10.20.0.57:10439-16248", "macro-user-callerid,s,1(LIMIT,EXTERNAL)") in new stack -- Executing [s@macro-user-callerid:1] Set("IAX2/10.20.0.57:10439-16248", "TOUCH_MONITOR=1790152341.230") in new stack -- Executing [s@macro-user-callerid:2] Set("IAX2/10.20.0.57:10439-16248", "CHANCONTEXT=") in new stack -- Executing [s@macro-user-callerid:3] Set("IAX2/10.20.0.57:10439-16248", "CHANCONTEXT=") in new stack -- Executing [s@macro-user-callerid:4] Set("IAX2/10.20.0.57:10439-16248", "CHANEXTENCONTEXT=10.20.0.57:10439-16248") in new stack -- Executing [s@macro-user-callerid:5] Set("IAX2/10.20.0.57:10439-16248", "CHANEXTEN=10.20.0.57:10439-16248") in new stack -- Executing [s@macro-user-callerid:6] Set("IAX2/10.20.0.57:10439-16248", "CALLERID(number)=10439-16248:872") in new stack
instead of “10439-16248:872” in CALLERID(number) must be just “872”
on calling asrterisk server i don’t see “10439-16248” anywhere in logs…
i’ve tried:
CUT(CALLERID(number),:,2)
and instead “CALLERID(number)=24874-2135:872” i saw “CALLERID(number)=24874-2135:”
why not 872??? what i’ve done wrong???
The channel number appears to be included in there. Maybe paste the results of this into this thread and I’m sure that some experts on here could offer some insight how the caller ID is being constructed and defined. I believe that macros are deprecated with FreePBX v17, seeing I had to redefine things in my config files after migrating from v16 a few months ago.
asterisk -rx "dialplan show macro-user-callerid"
here it is:
[ Context ‘macro-user-callerid’ created by ‘pbx_config’ ]
‘en’ => 1. Playback(im-sorry&an-error-has-occurred&with&call-forwarding) [extensions_override_freepbx.conf:66]
2. Return() [extensions_override_freepbx.conf:67]
[hook_1] 3. Playback(beep&im-sorry&your&simul-call-limit-reached&goodbye) [extensions_override_freepbx.conf:68]
4. Return() [extensions_override_freepbx.conf:69]
[hook_2] 5. Playback(im-sorry&an-error-has-occurred) [extensions_override_freepbx.conf:70]
6. Return() [extensions_override_freepbx.conf:71]
‘h’ => 1. Gosub(macro-hangupcall,s,1()) [extensions_override_freepbx.conf:64]
‘ja’ => 1. Playback(im-sorry&call-forwarding&jp-no&an-error-has-occured) [extensions_override_freepbx.conf:73]
2. Return() [extensions_override_freepbx.conf:74]
[hook_1] 3. Playback(beep&im-sorry&simul-call-limit-reached) [extensions_override_freepbx.conf:75]
4. Return() [extensions_override_freepbx.conf:76]
[hook_2] 5. Playback(im-sorry&an-error-has-occured) [extensions_override_freepbx.conf:77]
6. Return() [extensions_override_freepbx.conf:78]
‘lang-playback’ => 1. GosubIf($[${DIALPLAN_EXISTS(macro-user-callerid,${CHANNEL(language)})}]?macro-user-callerid,${CHANNEL(language)},${ARG1}():macro-user-callerid,en,${ARG1}()) [extensions_override_freepbx.conf:3]
2. Return() [extensions_override_freepbx.conf:4]
‘s’ => 1. Set(TOUCH_MONITOR=${UNIQUEID}) [extensions_override_freepbx.conf:6]
2. Set(CHANCONTEXT=${CUT(CHANNEL,@,2)}) [extensions_override_freepbx.conf:7]
3. Set(CHANCONTEXT=${CUT(CHANCONTEXT,-,1)}) [extensions_override_freepbx.conf:8]
4. Set(CHANEXTENCONTEXT=${CUT(CHANNEL,/,2)}) [extensions_override_freepbx.conf:9]
5. Set(CHANEXTEN=${CUT(CHANEXTENCONTEXT,@,1)}) [extensions_override_freepbx.conf:10]
6. Set(CALLERID(number)=${IF($[“${CHANCONTEXT}” = “webcallback”]?${CHANEXTEN}:${CALLERID(number)})}) [extensions_override_freepbx.conf:11]
7. Set(AMPUSER=${IF($[“${AMPUSER}” = “”]?${CALLERID(number)}:${AMPUSER})}) [extensions_override_freepbx.conf:12]
8. Set(HOTDESCKCHAN=${CUT(CHANNEL,/,2)}) [extensions_override_freepbx.conf:13]
9. Set(HOTDESKEXTEN=${CUT(HOTDESCKCHAN,-,1)}) [extensions_override_freepbx.conf:14]
10. Set(HOTDESKCALL=0) [extensions_override_freepbx.conf:15]
11. ExecIf($[“${DB(EDEVICE/${HOTDESKEXTEN}/user)}”=“DummyUser”]?Set(HOTDESKCALL=1)) [extensions_override_freepbx.conf:16]
12. ExecIf($[${HOTDESKCALL}=1]?Set(CALLERID(name)=${DB(EDEVICE/${HOTDESKEXTEN}/location)})) [extensions_override_freepbx.conf:17]
13. GotoIf($[“${CUT(CHANNEL,@,2):5:5}”=“queue” | ${LEN(${AMPUSERCIDNAME})}]?report) [extensions_override_freepbx.conf:18]
14. ExecIf($[“${REALCALLERIDNUM:1:2}” = “”]?Set(REALCALLERIDNUM=${CALLERID(number)})) [extensions_override_freepbx.conf:19]
15. Set(AMPUSER=${DB(DEVICE/${REALCALLERIDNUM}/user)}) [extensions_override_freepbx.conf:20]
16. GotoIf($[“${AMPUSER}” = “none”]?limit) [extensions_override_freepbx.conf:21]
17. Set(AMPUSERCIDNAME=${DB(AMPUSER/${AMPUSER}/cidname)}) [extensions_override_freepbx.conf:22]
18. ExecIf($[“${ARG2}” != “EXTERNAL” & ${DB_EXISTS(AMPUSER/${AMPUSER}/cidnum)} & “${AMPUSER}” != “${DB(AMPUSER/${AMPUSER}/cidnum)}”]?Set(__CIDMASQUERADING=TRUE)) [extensions_override_freepbx.conf:23]
19. GotoIf($[“${AMPUSERCIDNAME:1:2}” = “”]?report) [extensions_override_freepbx.conf:24]
20. Set(AMPUSERCID=${IF($[“${ARG2}” != “EXTERNAL” & “${DB_EXISTS(AMPUSER/${AMPUSER}/cidnum)}” = “1”]?${DB_RESULT}:${AMPUSER})}) [extensions_override_freepbx.conf:25]
21. Set(__DIAL_OPTIONS=${IF($[“${DB_EXISTS(AMPUSER/${AMPUSER}/dialopts)}” = “1”]?${DB_RESULT}:${DIAL_OPTIONS})}) [extensions_override_freepbx.conf:26]
22. Set(CALLERID(all)=“${AMPUSERCIDNAME}” <${AMPUSERCID}>) [extensions_override_freepbx.conf:27]
23. ExecIf($[“${DB(DEVICE/${ARG2}/tech)}”=“custom”]?Set(CUSDIAL=${CUT(CUT(DB(DEVICE/${ARG2}/dial),/,2),@,1)})) [extensions_override_freepbx.conf:28]
24. ExecIf($[“${DB(DEVICE/${ARG2}/tech)}”=“custom” & “${DB(DEVICE/${CUSDIAL}/type)}” =“”]?Set(CALLERID(all)=${IF($[${LEN(${DB(AMPUSER/${ARG2}/outboundcid)})}]?${DB(AMPUSER/${ARG2}/outboundcid)}:${CALLERID(all)})})) [extensions_override_freepbx.conf:29]
25. GotoIf($[“${ARG1}”=“LIMIT” & ${LEN(${AMPUSER})} & ${DB_EXISTS(AMPUSER/${AMPUSER}/concurrency_limit)} & ${DB(AMPUSER/${AMPUSER}/concurrency_limit)}>0 & ${GROUP_COUNT(${AMPUSER}@concurrency_limit)}>=${DB(AMPUSER/${AMPUSER}/concurrency_limit)}]?limit) [extensions_override_freepbx.conf:30]
26. ExecIf($[“${ARG1}”=“LIMIT” & ${LEN(${AMPUSER})}]?Set(GROUP(concurrency_limit)=${AMPUSER})) [extensions_override_freepbx.conf:31]
[report] 27. Noop(Macro depricated!! To keep the same line numbers) [extensions_override_freepbx.conf:32]
28. Noop(Macro depricated !! To keep the same line numbers) [extensions_override_freepbx.conf:33]
[report2] 29. GotoIf($[ “${ARG1}” = “SKIPTTL” | “${ARG1}” = “LIMIT” ]?continue) [extensions_override_freepbx.conf:34]
[report3] 30. Set(__TTL=${IF($[“foo${TTL}” = “foo”]?64:$[ ${TTL} - 1 ])}) [extensions_override_freepbx.conf:35]
31. GotoIf($[ ${TTL} > 0 ]?continue) [extensions_override_freepbx.conf:36]
32. Wait(${RINGTIMER}) [extensions_override_freepbx.conf:37]
33. Answer() [extensions_override_freepbx.conf:38]
34. Wait(1) [extensions_override_freepbx.conf:39]
35. Gosub(macro-user-callerid,lang-playback,1(hook_0)) [extensions_override_freepbx.conf:40]
36. Gosub(macro-hangupcall,s,1()) [extensions_override_freepbx.conf:41]
[macroerror] 37. Noop(Macro Limit Reached. Aborting Call) [extensions_override_freepbx.conf:42]
38. Answer() [extensions_override_freepbx.conf:43]
39. Wait(1) [extensions_override_freepbx.conf:44]
40. Gosub(macro-user-callerid,lang-playback,1(hook_2)) [extensions_override_freepbx.conf:45]
41. Gosub(macro-hangupcall,s,1()) [extensions_override_freepbx.conf:46]
[limit] 42. Answer() [extensions_override_freepbx.conf:47]
43. Wait(1) [extensions_override_freepbx.conf:48]
44. Gosub(macro-user-callerid,lang-playback,1(hook_1)) [extensions_override_freepbx.conf:49]
45. Gosub(macro-hangupcall,s,1()) [extensions_override_freepbx.conf:50]
46. Congestion(20) [extensions_override_freepbx.conf:51]
[continue] 47. Set(CALLERID(number)=${CALLERID(number):0:40}) [extensions_override_freepbx.conf:52]
48. Set(CALLERID(name)=${CALLERID(name):0:80}) [extensions_override_freepbx.conf:53]
49. GotoIf($[“${CALLERID(name)}” = “”]?cnum) [extensions_override_freepbx.conf:54]
50. Set(__MCNUM=${CALLERID(num)}) [extensions_override_freepbx.conf:55]
51. Set(__MCNAME=${CALLERID(name)}) [extensions_override_freepbx.conf:56]
52. Set(__MCEXTEN=${AMPUSER}) [extensions_override_freepbx.conf:57]
53. Set(__MCORGCHAN=${CHANNEL}) [extensions_override_freepbx.conf:58]
54. Set(CDR(cnam)=${CALLERID(name)}) [extensions_override_freepbx.conf:59]
[cnum] 55. Set(CDR(cnum)=${CALLERID(num)}) [extensions_override_freepbx.conf:60]
[return] 56. Return() [extensions_override_freepbx.conf:61]
57. Set(CHANNEL(language)=${MASTER_CHANNEL(CHANNEL(language))}) [extensions_override_freepbx.conf:62]
Include => ‘macro-user-callerid-custom’ [pbx_config]
-= 5 extensions (72 priorities) in 1 context. =-
Этот текст будет скрыт
my guess is that callerID constructed somewhere else…
and why CUT not working properly?
Just spitballing this to be honest, but Google gemini suggested trying this.
${CUT(CALLERID(number),:,2)}
yes. i’ve done exactly so. but result…
Executing [s@macro-user-callerid:6] Set(“IAX2/10.20.0.57:24874-6476”, “CALLERID(number)=24874-6476:”) in new stack
this way works fine:
exten => s,n,Set(CALLERID(number)=${IF($[“${CHANCONTEXT}” = “webcallback”]?${CHANEXTEN}:${CALLERID(number)})})
exten => s,n,Set(CALLERID(number)=${CUT(CALLERID(number),:,2)})
result: 872
and this way gives a crap:
exten => s,n,Set(CALLERID(number)=${IF($[“${CHANCONTEXT}” = “webcallback”]?${CHANEXTEN}:${CUT(CALLERID(number),:,2)})})
result: 24874-2135:
why?
and if i set this on both asterisks - it failed totally. i receive “24874-2135:” in incoming callerid
and even if it on one of them - it breaks callerid in incoming calls. thus it’s not a workaround
but i don’t see anything wrong with callerid on sendind server…
everywhere i see callerid it shows “889” without any prefixes
with one exception:
Executing [s@macro-dialout-trunk:25] ExecIf(“PJSIP/889-000001d2”, “1?Set(CONNECTEDLINE(name,i)=CID:889)”) in new stack
but it’s not callerid i guess…
The macro names are retained, but instead of using Macro(xxxxx,…), it uses Gosub(macro-xxxxx…, and a Return has to be at the end.
i’ve commented the line in /etc/asterisk/extensions_override_freepbx.conf:
;Set(CALLERID(number)=${IF($[“${CHANCONTEXT}” = “webcallback”]?${CHANEXTEN}:${CALLERID(number)})})
and now all things works fine. but! in file extensions_additional.conf this string still present…
and the question remains - what’s gone wrong with [macro-user-callerid] ???
Under Connectivity > Trunks in the admin portal what do the options look like for Caller ID in there for the IAX2 trunk?

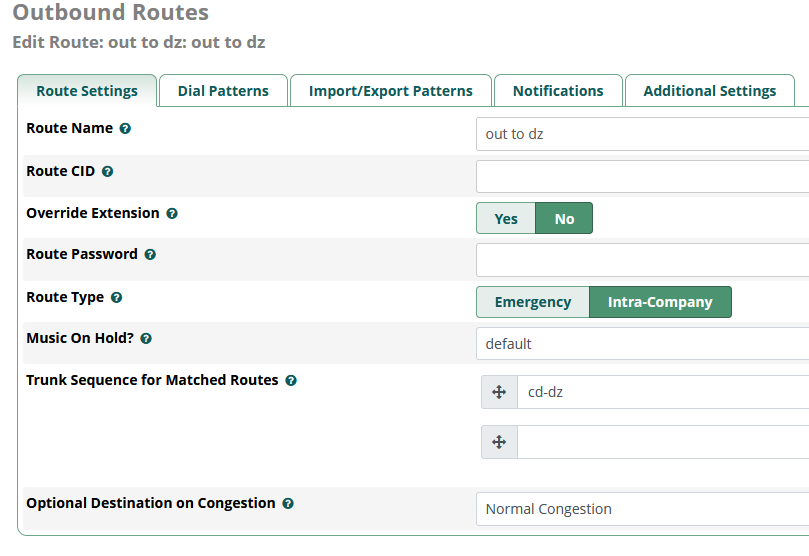

How is the outbound route configured that points to the IAX2 trunk? See here for something similar → Issue with Caller ID on IAX Trunk Between Two FreePBX Systems.

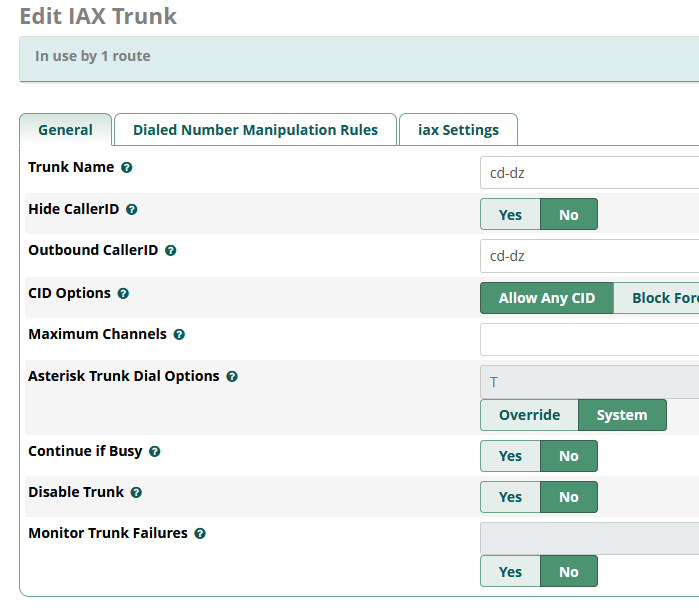

In the screen shot of your trunk configuration, I see that Outbound CallerID has cd-dz plugged into that field. Have you tried temporarily removing that value and testing it?
yes i’ve tried. nothing changes…
